The Green Pin UXSC Shortening Hook (Clevis) Grade 10 is a clevis-type shortening hook designed for adjusting chain sling leg length in Grade 100 chain systems. The hook grabs a chain link and locks it in place, effectively shortening the sling leg for uneven load balancing or storage.
Key Features
- Grade 10 alloy steel for Grade 100 chain system capacity
- Clevis connection with free pivot
- Hook grabs and locks individual chain links
- Safety latch prevents accidental release
- Individually proof tested with certificate
Common Applications
- Adjusting chain sling leg length for uneven loads
- Taking up slack in multi-leg chain slings
- Leveling loads with different attachment point heights
- Grade 100 chain sling fabrication
Why Green Pin?
Green Pin shortening hooks enable precise sling leg adjustment in Grade 100 systems. Individually proof tested by Van Beest for full-capacity performance.

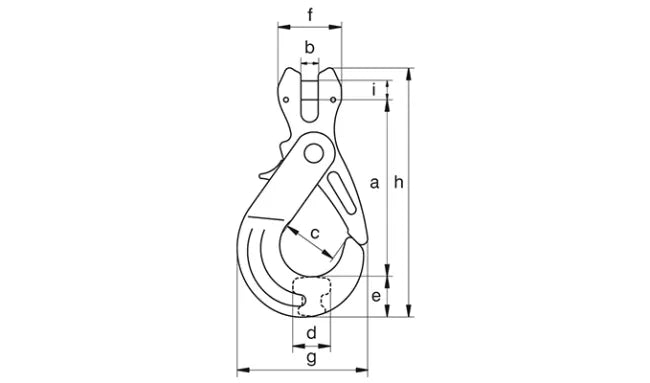

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | Stock # |
|---|---|---|---|
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 7 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 6 mm (1/4") | GPUXLC0 | $125.11 | ✓ In Stock | ||
| 7 mm (9/32") | GPUXLC07 | $132.81 | Quote | ||
| 8 mm (5/16") | GPUXLC1 | $140.51 | Quote | ||
| 10 mm (3/8") | GPUXLC2 | $173.47 | Quote | ||
| 13 mm (1/2") | GPUXLC3 | $254.12 | Quote | ||
| 16 mm (5/8") | GPUXLC4 | $421.36 | Quote | ||
| 20 mm (3/4") | GPUXLC5 | $587.68 | Quote |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
