Forged by Van Beest
Grade 10, WLL 3–50 t
4:1 safety factor
100% inspected
Why You'd Buy This & How You'd Use It

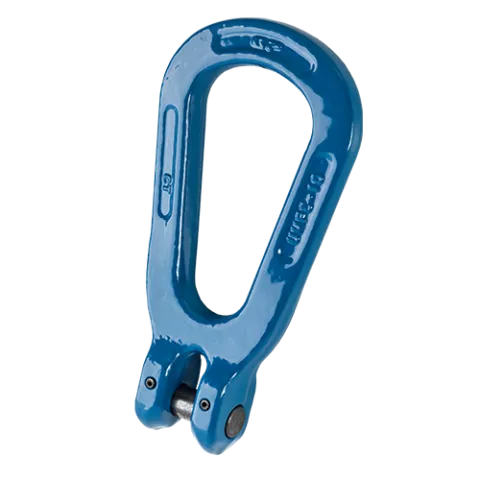

The Green Pin® UMP is a Grade 10 pear-shaped master link — the tapered narrower end fits a crane hook, the wider bottom end accepts multi-leg chain slings. Used as the top attachment point for 3-leg and 4-leg chain slings.
Three features that matter:
- Pear / teardrop shape. Narrower top fits most crane hooks; wider bottom accepts multiple sling legs without crowding.
- Grade 10 alloy. 25% higher WLL than Grade 8 at the same link dimensions.
- EN 1677-4 compliant. European standard for chain sling master links.
Use it for: Top-end connection on 3-leg and 4-leg Grade 10 chain slings.
Don't use for: Single-leg or 2-leg chain slings (use oblong UMS master link).
👉 For full technical data: see the Technical Specifications tab above.
📑 Downloads: 📄 Green Pin Product Page · 📄 Green Pin USA Catalog

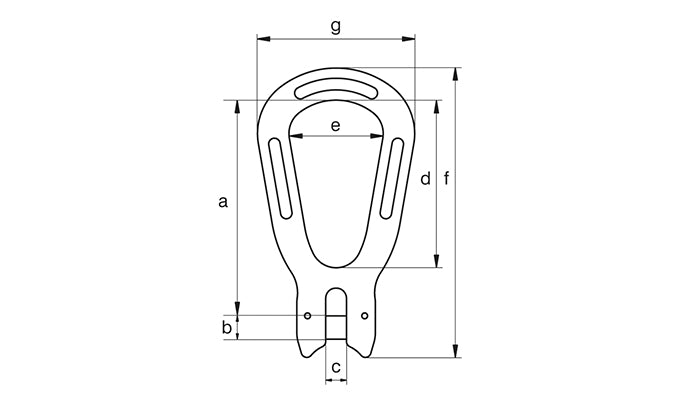

Dimension diagram applies to all sizes.
Dimension Legend
- Stock Ø Bar stock diameter forming the link
- Inside Length Inside length of the link
- Inside Width Inside width of the link
Material & Product Specifications
| Material | Alloy steel, Grade 10, quenched and tempered |
| Safety Factor | MBL = 4 × WLL |
| Finish | Painted |
| Temperature Range | -40°C to +200°C |
| Certification | EN 1677-4 · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | 3–50 tonnes |
| Article | WLL (t) | Stock Ø (mm) | Inside Length (mm) | Inside Width (mm) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GPUMP6 | 1,4 | 6 | 0.14 | 84 | 8 | 7 | 64 | 33 | 109 | 55 | 0.14 |
| GPUMP7 | 1,95 | 7 | 0.28 | 100 | 10 | 9 | 77 | 40 | 132 | 69 | 0.28 |
| GPUMP8 | 2,6 | 8 | 0.28 | 100 | 10 | 9 | 77 | 40 | 132 | 69 | 0.28 |
| GPUMP10 | 4 | 10 | 0.63 | 125 | 13 | 12 | 97 | 50 | 165 | 84 | 0.63 |
| GPUMP13 | 6,8 | 13 | 1.40 | 161 | 16 | 15 | 125 | 66 | 213 | 110 | 1.40 |
| GPUMP16 | 10,3 | 16 | 2.73 | 198 | 20 | 19 | 154 | 84 | 262 | 140 | 2.73 |
| Article | WLL (t) | Stock Ø (in) | Inside Length (in) | Inside Width (in) | Weight (lb) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GPUMP6 | 1,4 | 7/32 | 0.31 | 3 5/16 | 5/16 | 9/32 | 2 17/32 | 1 5/16 | 4 9/32 | 2 5/32 | 0.31 |
| GPUMP7 | 1,95 | 9/32 | 0.62 | 3 15/16 | 13/32 | 11/32 | 3 1/32 | 1 9/16 | 5 3/16 | 2 23/32 | 0.62 |
| GPUMP8 | 2,6 | 5/16 | 0.62 | 3 15/16 | 13/32 | 11/32 | 3 1/32 | 1 9/16 | 5 3/16 | 2 23/32 | 0.62 |
| GPUMP10 | 4 | 3/8 | 1.39 | 4 29/32 | 1/2 | 15/32 | 3 13/16 | 1 31/32 | 6 1/2 | 3 5/16 | 1.39 |
| GPUMP13 | 6,8 | 1/2 | 3.09 | 6 11/32 | 5/8 | 19/32 | 4 29/32 | 2 19/32 | 8 3/8 | 4 11/32 | 3.09 |
| GPUMP16 | 10,3 | 5/8 | 6.03 | 7 25/32 | 25/32 | 3/4 | 6 1/16 | 3 5/16 | 10 5/16 | 5 1/2 | 6.03 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 10 mm (3/8") | GPUMP10 | $65.29 | ✓ In Stock | ||
| 13 mm (1/2") | GPUMP13 | $114.15 | ✓ In Stock | ||
| 16 mm (5/8") | GPUMP16 | $214.18 | ✓ In Stock | ||
| 8 mm (5/16") | GPUMP8 | $40.55 | ✓ In Stock | ||
| 6 mm (1/4") | UMP6 | $29.59 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
