Forged by Van Beest
Green Pin® quality
100% MPI tested
Traceable, color-coded

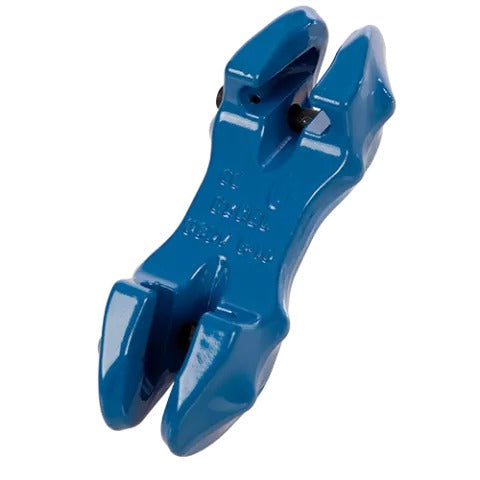

Green Pin UGDV Shortening Clutch Double Lock Grade 10 — Grade 10 double-locking shortening clutch for offshore chain slings. Drop-forged/heat-treated, proof-tested at 2× WLL, CE marked. Authorized Van Beest distributor.
📑 Downloads: 📄 Green Pin Product Page · 📄 Green Pin USA Catalog
💡 Full dimensional tables and technical specifications coming soon. Email sales@slingcenter.com for sizes.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

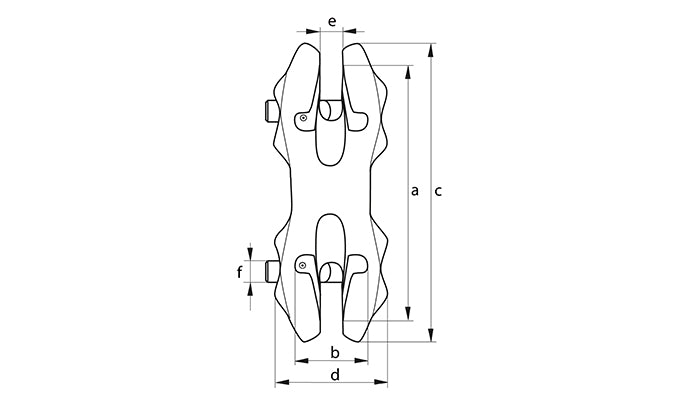

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|
| 1.4 | 1.070.49 | 3 15/16100 | 29/3223 | 4 23/32120 | 1 21/3242 | 9/327 | 9/327 | GPUGDV6 | |
| 2.6 | 1.690.77 | 4 13/32112 | 1 3/1630 | 5 1/2140 | 1 31/3250 | 11/329 | 5/168 | GPUGDV8 | |
| 6.8 | 6.282.85 | 7 3/32180 | 1 15/1649 | 8 3/16208 | 3 1/879 | 19/3215 | 5/816 | GPUGDV13 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
