Forged by Van Beest
Green Pin® quality
100% MPI tested
Traceable, color-coded

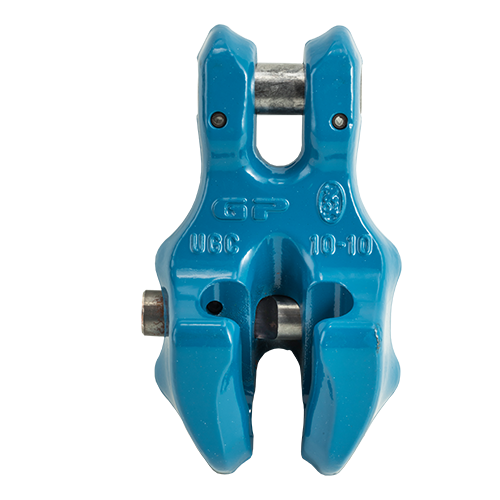

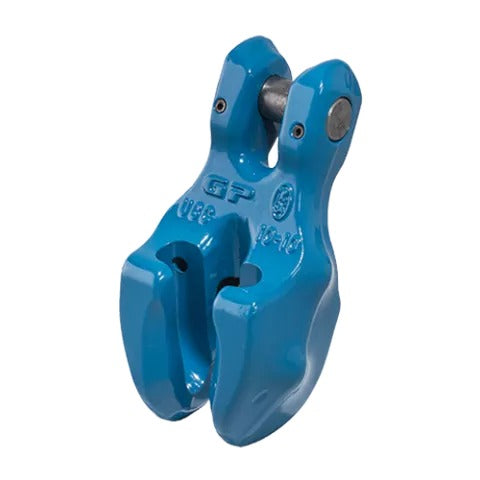

Green Pin UGCV Shortening Clutch with Lock Grade 10 — Grade 10 shortening clutch with locking latch. Drop-forged/heat-treated, proof-tested at 2× WLL, CE marked. Authorized Van Beest distributor.
📑 Downloads: 📄 Green Pin Product Page · 📄 Green Pin USA Catalog
💡 Full dimensional tables and technical specifications coming soon. Email sales@slingcenter.com for sizes.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

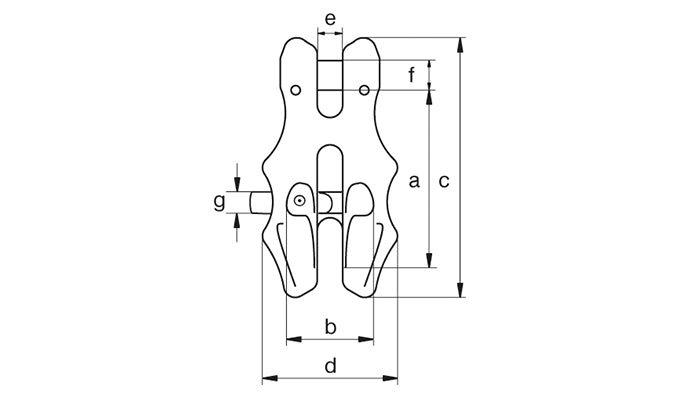

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.4 | 0.510.23 | 2 1/1652 | 29/3223 | 2 15/1675 | 1 21/3242 | 9/327 | 5/168 | 9/327 | GPUGCV6 | |
| 2.6 | 0.980.44 | 2 5/867 | 1 3/1630 | 3 11/1694 | 1 31/3250 | 11/329 | 13/3210 | 5/168 | GPUGCV8 | |
| 4 | 1.910.87 | 3 9/3283 | 1 1/238 | 4 9/16116 | 2 15/3263 | 7/1611 | 1/213 | 15/3212 | GPUGCV10 | |
| 6.8 | 3.681.67 | 4 3/32104 | 1 15/1649 | 5 7/8149 | 3 1/879 | 9/1614 | 5/816 | 5/816 | GPUGCV13 | |
| 10.3 | 6.843.10 | 5127 | 2 3/860 | 7 1/4184 | 3 29/3299 | 23/3218 | 25/3220 | 25/3220 | GPUGCV16 | |
| 16 | 12.85.80 | 6 1/16154 | 2 15/1675 | 8 15/32215 | 4 7/8124 | 7/822 | 15/1624 | 25/3220 | GPUGCV20 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 10 mm (3/8") | GPUGCV10 | $255.00 | ✓ In Stock | ||
| 13 mm (1/2") | GPUGCV13 | $636.50 | ✓ In Stock | ||
| 16 mm (5/8") | GPUGCV16 | $645.50 | ✓ In Stock | ||
| 20 mm (3/4") | GPUGCV20 | $958.50 | ✓ In Stock | ||
| 8 mm (5/16") | GPUGCV8 | $234.50 | ✓ In Stock | ||
| 6 mm (1/4") | UGCV6 | $208.50 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
