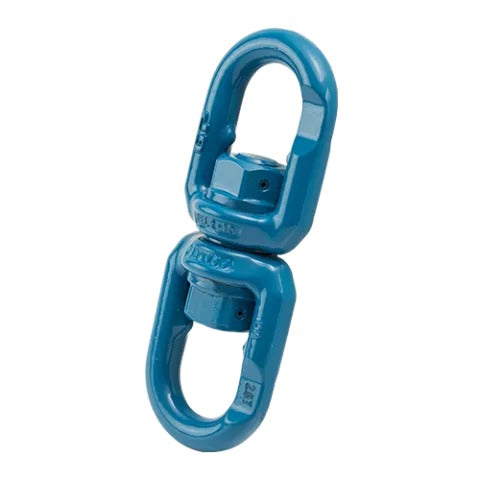

The Green Pin UELR Needle Bearing Swivel (Eye & Eye) Grade 10 features a precision needle bearing for ultra-smooth rotation under load, in Grade 10 alloy steel for 25% higher capacity than Grade 8 equivalents. The needle bearing eliminates binding common in standard swivels.
Key Features
- Precision needle bearing for frictionless rotation
- Grade 10 alloy steel — 25% higher capacity
- Eye and eye configuration
- Maintains rotation at high WLL
- Individually proof tested with certificate
Common Applications
- High-capacity twist prevention in Grade 100 systems
- Offshore and marine heavy lifting
- Crane operations requiring free rotation under load
Why Green Pin?
Grade 10 needle bearing swivels deliver smooth rotation at the highest capacities. Individually proof tested by Van Beest.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

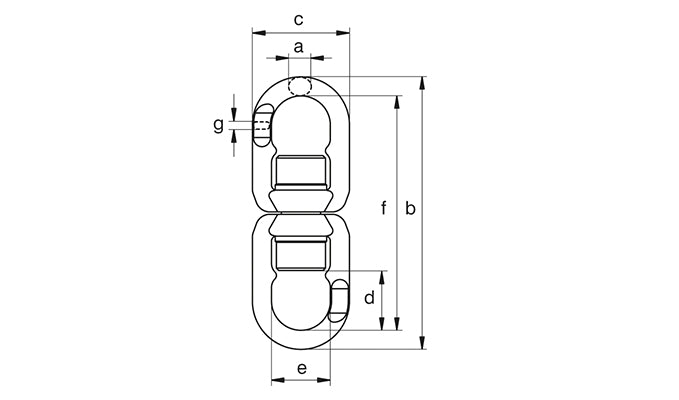

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.4 | 1.340.61 | 15/3212 | 5 7/8149 | 2 7/3256 | 1 5/1633 | 1 1/432 | 4 31/32126 | 1/46 | GPUELR0 | |
| 2.6 | 2.361.07 | 9/1614 | 7 1/8181 | 2 9/1665 | 1 9/1640 | 1 15/3237 | 6 1/32153 | 5/168 | GPUELR1 | |
| 4 | 4.191.90 | 5/816 | 8 29/32226 | 3 1/879 | 1 7/848 | 1 7/848 | 7 11/16195 | 7/1611 | GPUELR2 | |
| 6.8 | 6.993.17 | 25/3220 | 10 9/16268 | 3 25/3296 | 2 3/860 | 2 9/3258 | 8 15/16227 | 9/1614 | GPUELR3 | |
| 10.3 | 14.26.44 | 31/3225 | 12 15/16329 | 4 3/4121 | 2 5/867 | 2 7/873 | 10 31/32279 | 21/3217 | GPUELR4 | |
| 16 | 17.097.75 | 31/3225 | 14 7/8378 | 5 3/16132 | 3 15/3288 | 3 7/3282 | 12 29/32328 | 7/822 | GPUELR5 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1.4 t | GPUELR0 | $229.50 | ✓ In Stock | ||
| 2.6 t | GPUELR1 | $217.50 | ✓ In Stock | ||
| 4 t | GPUELR2 | $241.50 | ✓ In Stock | ||
| 6.8 t | GPUELR3 | $335.00 | ✓ In Stock | ||
| 16 t | GPUELR5 | $843.50 | ✓ In Stock | ||
| 10.3 t | UELR4 | $594.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
