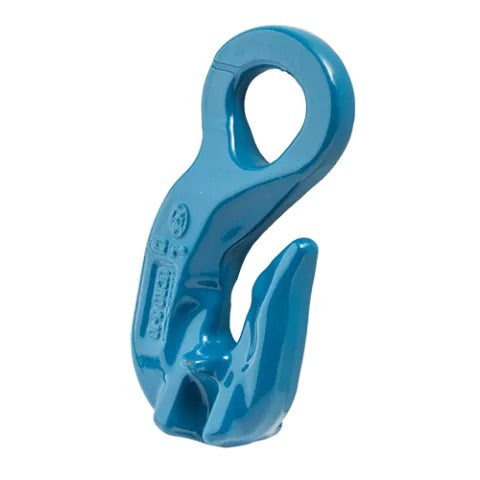

The Green Pin UCRO Eye Grab Hook Grade 10 is an eye-type grab hook in Grade 10 alloy steel for Grade 100 chain systems. The eye connection accepts shackles and sling fittings, while the narrow grab throat locks onto individual chain links for length adjustment.
Key Features
- Grade 10 alloy steel for Grade 100 system compatibility
- Eye connection for versatile attachment
- Narrow grab throat for chain link engagement
- Individually proof tested with certificate
- EN 1677-1 compliant
Common Applications
- Grade 100 chain sling shortening and adjustment
- Transport chain lashing systems
- Multi-leg sling assemblies with adjustable reach
- High-capacity cargo securement
Why Green Pin?
Green Pin Grade 10 eye grab hooks deliver full Grade 100 chain system capacity with versatile eye connections. Individually proof tested by Van Beest.

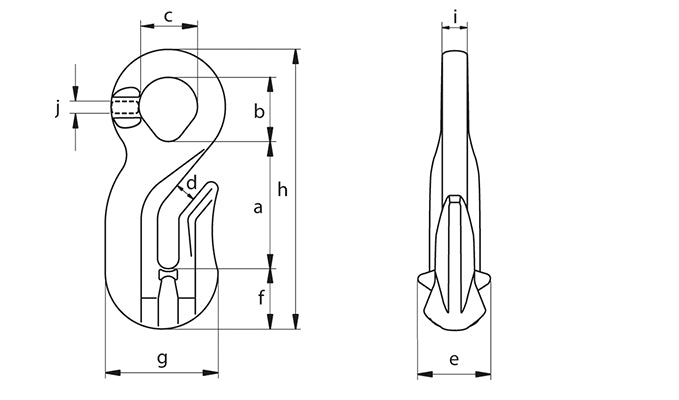

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | J (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.4 | 0.520.24 | 1 5/841 | 15/1624 | 29/3223 | 5/168 | 15/1624 | 25/3220 | 1 21/3242 | 3 11/1694 | 11/329 | 1/46 | GPUCRO6 | |
| 2.6 | 1.110.51 | 2 3/3253 | 1 1/1627 | 1 1/3227 | 13/3210 | 1 15/3237 | 1 3/3228 | 2 3/3253 | 4 23/32120 | 13/3210 | 5/168 | GPUCRO8 | |
| 4 | 2.381.08 | 2 5/867 | 1 1/238 | 1 13/3236 | 15/3212 | 1 21/3242 | 1 17/3239 | 2 19/3266 | 6 7/32158 | 9/1614 | 13/3210 | GPUCRO10 | |
| 6.8 | 4.412.00 | 3 5/1684 | 1 21/3242 | 1 21/3242 | 19/3215 | 2 7/3256 | 1 9/1640 | 3 7/1687 | 7 5/16186 | 5/816 | 15/3212 | GPUCRO13 | |
| 10.3 | 5.492.49 | 4 3/32104 | 2 3/3253 | 2 1/1652 | 3/419 | 2 9/1665 | 2 9/3258 | 4 3/16106 | 9 3/32236 | 21/3217 | 5/816 | GPUCRO16 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
