Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

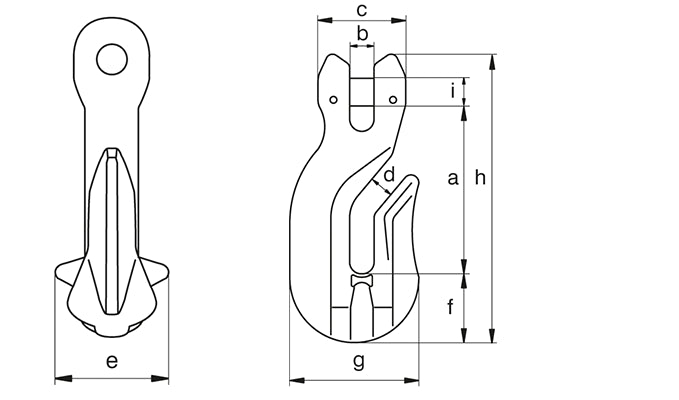

Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.
| WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | Chain dia (in)(mm) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3,0861.4 | 2,4691.12 | 0.770.35 | 7/326 | 2 1/1652 | 9/327 | 1 3/3228 | 5/168 | 15/1624 | 31/3225 | 1 21/3242 | 3 19/3291 | 5/168 | GPUCRC6 |
| 4,2991.95 | 3,4391.56 | 0.770.35 | 1/47 | 2 17/3264 | 11/329 | 1 1/432 | 13/3210 | 1 15/3237 | 1 3/3228 | 2 3/3253 | 4 1/4108 | 13/3210 | GPUCRC7 |
| 5,7322.6 | 4,5852.08 | 0.770.35 | 5/168 | 2 17/3264 | 11/329 | 1 1/432 | 13/3210 | 1 15/3237 | 1 3/3228 | 2 3/3253 | 4 1/4108 | 13/3210 | GPUCRC8 |
| 8,8184 | 7,0543.2 | 2.341.06 | 3/810 | 3 1/289 | 7/1611 | 1 21/3242 | 15/3212 | 1 21/3242 | 1 17/3239 | 2 19/3266 | 5 15/16151 | 1/213 | GPUCRC10 |
| 14,9916.8 | 11,9935.44 | 3.751.70 | 1/213 | 4 1/16103 | 19/3215 | 2 1/854 | 19/3215 | 2 7/3256 | 1 9/1640 | 3 7/1687 | 6 13/16173 | 5/816 | GPUCRC13 |
| 22,70710.3 | 18,1668.24 | 8.293.76 | 5/816 | 4 23/32120 | 23/3218 | 2 5/867 | 3/419 | 2 9/1665 | 2 9/3258 | 4 3/16106 | 8 7/16214 | 25/3220 | GPUCRC16 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

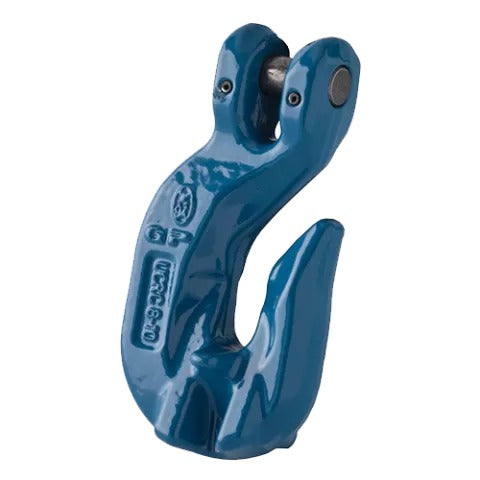

The Green Pin UCRC Clevis Grab Hook Grade 10 is a clevis-mounted grab hook in Grade 10 alloy steel for Grade 100 chain systems. The narrow grab throat grabs individual chain links for shortening, while the clevis pivots freely for optimal alignment.
Key Features
- Grade 10 alloy steel for Grade 100 chain system capacity
- Clevis connection with free pivot
- Narrow throat for chain link grabbing
- Individually proof tested with certificate
- EN 1677-1 compliant
Common Applications
- Grade 100 chain sling shortening
- Cargo lashing with Grade 100 chain
- High-capacity adjustable rigging
- Transport chain securement
Why Green Pin?
Green Pin Grade 10 grab hooks match Grade 100 chain capacity for maximum system performance. Individually proof tested by Van Beest.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 10 mm (3/8") | GPUCRC10 | $57.60 | ✓ In Stock | ||
| 16 mm (5/8") | GPUCRC16 | $161.00 | ✓ In Stock | ||
| 8 mm (5/16") | GPUCRC8 | $65.05 | ✓ In Stock | ||
| 13 mm (1/2") | UCRC13 | $108.18 | ✓ In Stock | ||
| 6 mm (1/4") | UCRC6 | $38.85 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
