Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.
Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.

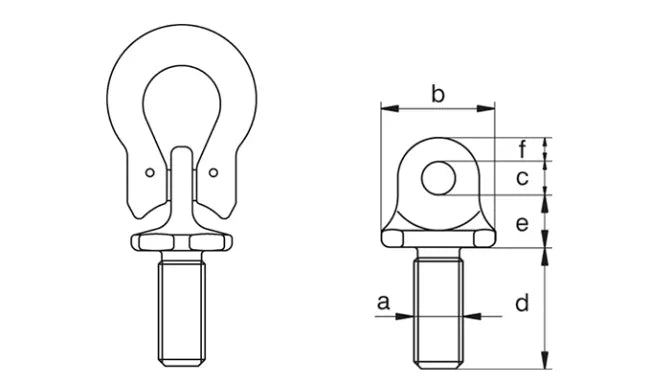

| Size | WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 5/16" (8mm mm) | 1,1020.5 | 8810.4 | 0.120.05 | 5/168 | 1 3/3228 | 5/168 | 1 3/1630 | 1/213 | 1/46 | GPOL8 |
| 13/32" (10mm mm) | 1,9840.9 | 1,5870.72 | 0.120.06 | 13/3210 | 1 3/3228 | 5/168 | 1 3/1630 | 1/213 | 1/46 | GPOL10 |
| 15/32" (12mm mm) | 2,7551.25 | 2,2041 | 0.140.06 | 15/3212 | 1 3/3228 | 5/168 | 1 3/1630 | 1/213 | 1/46 | GPOL12 |
| 9/16" (14mm mm) | 3,3061.5 | 2,6451.2 | 0.270.12 | 9/1614 | 1 7/3231 | 11/329 | 1 25/3245 | 23/3218 | 11/329 | GPOL14 |
| 5/8" (16mm mm) | 4,1881.9 | 3,3511.52 | 0.310.14 | 5/816 | 1 7/3231 | 11/329 | 1 25/3245 | 23/3218 | 11/329 | GPOL16 |
| 23/32" (18mm mm) | 4,9602.25 | 3,9681.8 | 0.330.15 | 23/3218 | 1 7/3231 | 11/329 | 1 25/3245 | 23/3218 | 11/329 | GPOL18 |
| 25/32" (20mm mm) | 6,8783.12 | 5,5112.5 | 0.550.25 | 25/3220 | 1 9/1640 | 1/213 | 2 5/3255 | 25/3220 | 13/3210 | GPOL20 |
| 7/8" (22mm mm) | 8,3773.8 | 6,7023.04 | 0.620.28 | 7/822 | 1 9/1640 | 1/213 | 2 5/3255 | 25/3220 | 13/3210 | GPOL22 |
| 15/16" (24mm mm) | 11,0235 | 8,8184 | 1.170.53 | 15/1624 | 2 3/3253 | 5/816 | 2 11/1668 | 1 5/3229 | 15/3212 | GPOL24 |
| 1 1/16" (27mm mm) | 13,7786.25 | 11,0235 | 1.280.58 | 1 1/1627 | 2 1/853 | 5/816 | 2 11/1668 | 1 3/3229 | 15/3212 | GPOL27 |
| 1 3/16" (30mm mm) | 17,6368 | 14,1096.4 | 2.070.94 | 1 3/1630 | 2 5/1659 | 25/3220 | 3 17/3290 | 1 3/835 | 1/213 | GPOL30 |
| 1 5/16" (33mm mm) | 19,8419 | 15,8737.2 | 2.271.03 | 1 5/1630 | 2 5/1659 | 25/3220 | 3 17/3290 | 1 3/835 | 1/213 | GPOL33 |
| 1 13/32" (36mm mm) | 22,04610 | 17,6368 | 2.471.12 | 1 13/3236 | 2 5/1659 | 25/3220 | 3 17/3290 | 1 3/835 | 1/213 | GPOL36 |
| 1 17/32" (39mm mm) | 27,55712.5 | 22,04610 | 4.191.90 | 1 17/3239 | 2 15/1675 | 15/1624 | 4 1/8105 | 1 9/1640 | 23/3218 | GPOL39 |
| 1 21/32" (42mm mm) | 33,06915 | 26,45512 | 4.452.02 | 1 21/3242 | 2 15/1675 | 15/1624 | 4 1/8105 | 1 9/1640 | 23/3218 | GPOL42 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

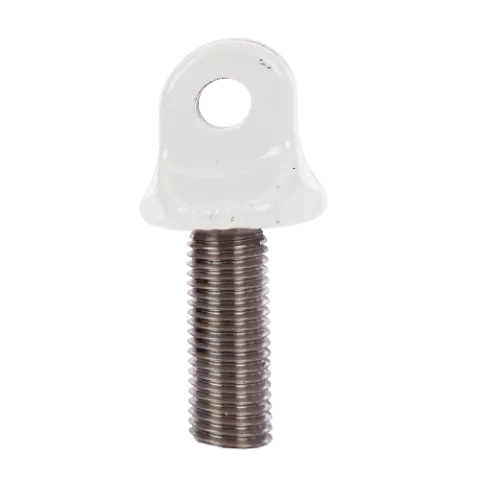

The Green Pin Small Lifting Eye (EL/OL) is a compact rotating hoist ring designed for lighter loads and smaller equipment where a full-size hoist ring would be too large. Despite its smaller profile, it provides the same 360-degree swivel and 180-degree pivot action as larger Green Pin lifting eyes.
Key Features
- Compact profile for small equipment and light loads
- 360-degree swivel and 180-degree pivot
- Forged alloy steel construction
- Spring-loaded ring stays upright
- Individually proof tested with certificate
Common Applications
- Small molds, dies, and fixtures
- Electronic enclosures and control panels
- Light industrial equipment handling
- Tight-space lifting points
Why Green Pin?
Green Pin small lifting eyes bring full rotating hoist ring performance to compact applications. Individually proof tested by Van Beest — same quality standard regardless of size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M8 (0.14 Ton) | GPOL08 | $3.92 | ✓ In Stock | ||
| M10 (0.23 Ton) | GPOL10 | $4.50 | ✓ In Stock | ||
| M12 (0.34 Ton) | GPOL12 | $40.70 | ✓ In Stock | ||
| M16 (0.7 Ton) | GPOL16 | $55.50 | ✓ In Stock | ||
| M20 (1.2 Ton) | GPOL20 | $12.50 | ✓ In Stock | ||
| M24 (1.8 Ton) | GPOL24 | $18.95 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
