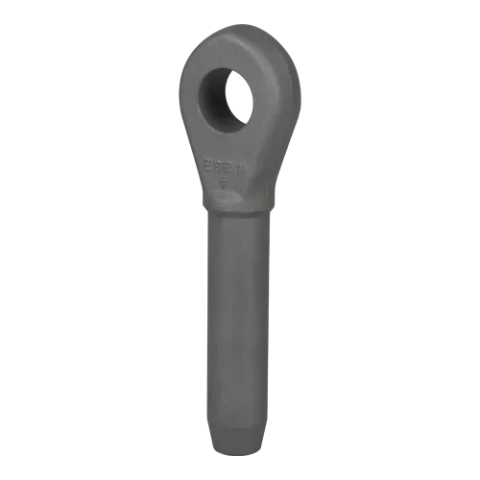

The Green Pin S-6415 Closed Swage Socket provides a swage-type wire rope termination with a closed (eye) body. The rope is mechanically pressed into the socket using a hydraulic swaging machine, creating a permanent, clean termination that connects to shackles or pins via the eye.
Key Features
- Closed eye body for shackle and pin connections
- Swage (press-fit) termination — clean and compact
- Forged steel, hot-dip galvanized
- Individually proof tested with certificate
- No field socketing materials required
Common Applications
- Pre-assembled wire rope slings
- Architectural cable assemblies
- Marine and offshore wire rope systems
- Any application requiring a clean, factory-made termination
Why Green Pin?
Green Pin closed swage sockets provide the cleanest wire rope termination — no excess zinc or resin, just a precise mechanical fit. Individually proof tested by Van Beest for guaranteed performance.
Dimension diagram applies to all sizes.
Dimension Legend
- A Overall length
- B Socket basket length
- C Basket diameter
- D Shank width
- E Connection eye/pin
- F Clearance
- G Reference
- H Reference
Material & Product Specifications
| Material | Forged alloy steel |
| Safety Factor | 90-95% of rope breaking strength |
| Finish | Self-colored or hot-dip galvanized |
| Temperature Range | -20°C to +200°C |
| Certification | EN 13411-8 · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | Per size |
| Article | Rope Ø (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKZSC006 | 6 | 10,9 | 11,7 | 13 | 7 | 37 | 19 | 13 | 54 | 111 | 89 | 0.15 |
| SKZSC008 | 8 | 17,2 | 18 | 20 | 9 | 43 | 22 | 17 | 81 | 140 | 114 | 0.35 |
| SKZSC010 | 10 | 17,2 | 18 | 20 | 10 | 43 | 22 | 17 | 81 | 140 | 114 | 0.33 |
| SKZSC011 | 11 | 22 | 23,1 | 25 | 12 | 51 | 27 | 22 | 108 | 176 | 146 | 0.66 |
| SKZSC013 | 13 | 22 | 23,1 | 25 | 14 | 51 | 27 | 22 | 108 | 176 | 146 | 0.63 |
| SKZSC014 | 14 | 28,3 | 29,5 | 32 | 15 | 63 | 32 | 29 | 135 | 222 | 184 | 1.36 |
| SKZSC016 | 16 | 28,3 | 29,5 | 32 | 17 | 63 | 32 | 29 | 135 | 222 | 184 | 1.31 |
| SKZSC019 | 19 | 34,7 | 36,1 | 39 | 20 | 76 | 37 | 33 | 162 | 264 | 219 | 2.30 |
| SKZSC022 | 22 | 37,8 | 39,4 | 43 | 24 | 89 | 43 | 38 | 189 | 308 | 257 | 3.47 |
| SKZSC025 | 25 | 44,2 | 45,7 | 50 | 27 | 102 | 52 | 44 | 216 | 349 | 292 | 4.10 |
| SKZSC028 | 28 | 50,5 | 52,1 | 57 | 30 | 114 | 59 | 51 | 243 | 387 | 324 | 6.75 |
| SKZSC032 | 32 | 56,9 | 58,4 | 64 | 34 | 127 | 65 | 57 | 270 | 438 | 365 | 10.5 |
| SKZSC035 | 35 | 63,2 | 65 | 71 | 37 | 133 | 65 | 57 | 297 | 479 | 400 | 13.1 |
| SKZSC038 | 38 | 69,6 | 71,4 | 78 | 40 | 140 | 71 | 63 | 324 | 518 | 432 | 17.7 |
| SKZSC045 | 44 | 75,9 | 77,7 | 86 | 47 | 171 | 91 | 76 | 378 | 610 | 508 | 25.3 |
| SKZSC050 | 51 | 88,6 | 90,4 | 100 | 54 | 197 | 97 | 83 | 432 | 698 | 584 | 41 |
| SKZSC057 | 57 | 100,3 | 102,1 | 113 | 60 | 219 | 110 | 102 | 486 | 756 | 632 | 55.3 |
| SKZSC063 | 63 | 110,5 | 112,3 | 125 | 67 | 219 | 110 | 102 | 498 | 791 | 667 | 64.4 |
| SKZSC076 | 76 | 133,1 | 134,9 | 151 | 80 | 235 | 135 | 137 | 603 | 959 | 816 | 114 |
| Article | Rope Ø (in) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | Weight (lb) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKZSC006 | 1/4 | 0.428 | 0.46 | 0.495 | 0.272 | 1 7/16 | 3/4 | 1/2 | 2 1/8 | 4 3/8 | 3 1/2 | 0.33 |
| SKZSC008 | 5/16 | 0.678 | 0.71 | 0.77 | 0.339 | 1 11/16 | 7/8 | 11/16 | 3 3/16 | 5 1/2 | 4 1/2 | 0.77 |
| SKZSC010 | 3/8 | 0.678 | 0.71 | 0.77 | 0.406 | 1 11/16 | 7/8 | 11/16 | 3 3/16 | 5 1/2 | 4 1/2 | 0.74 |
| SKZSC011 | 7/16 | 0.865 | 0.91 | 0.982 | 0.484 | 2 | 1 1/16 | 7/8 | 4 1/4 | 6 15/16 | 5 3/4 | 1.46 |
| SKZSC013 | 1/2 | 0.865 | 0.91 | 0.982 | 0.547 | 2 | 1 1/16 | 7/8 | 4 1/4 | 6 15/16 | 5 3/4 | 1.40 |
| SKZSC014 | 9/16 | 1.115 | 1.16 | 1.257 | 0.609 | 2 1/2 | 1 1/4 | 1 1/8 | 5 5/16 | 8 3/4 | 7 1/4 | 2.10 |
| SKZSC016 | 5/8 | 1.115 | 1.16 | 1.257 | 0.672 | 2 1/2 | 1 1/4 | 1 1/8 | 5 5/16 | 8 3/4 | 7 1/4 | 2.88 |
| SKZSC019 | 3/4 | 1.365 | 1.42 | 1.545 | 0.796 | 3 | 1 7/16 | 1 5/16 | 6 3/8 | 10 3/8 | 8 5/8 | 5.07 |
| SKZSC022 | 7/8 | 1.49 | 1.55 | 1.7 | 0.938 | 3 1/2 | 1 11/16 | 1 1/2 | 7 7/16 | 12 1/8 | 10 1/8 | 7.65 |
| SKZSC025 | 1 | 1.74 | 1.8 | 1.975 | 1.062 | 4 | 2 1/16 | 1 3/4 | 8 1/2 | 13 3/4 | 11 1/2 | 11.0 |
| SKZSC028 | 1 1/8 | 1.99 | 2.05 | 2.245 | 1.188 | 4 1/2 | 2 5/16 | 2 | 9 9/16 | 15 1/4 | 12 3/4 | 14.9 |
| SKZSC032 | 1 1/4 | 2.24 | 2.3 | 2.525 | 1.328 | 5 | 2 9/16 | 2 1/4 | 10 5/8 | 17 1/4 | 14 3/8 | 23.2 |
| SKZSC035 | 1 3/8 | 2.49 | 2.56 | 2.8 | 1.453 | 5 1/4 | 2 9/16 | 2 1/4 | 11 11/16 | 18 7/8 | 15 3/4 | 28.9 |
| SKZSC038 | 1 1/2 | 2.74 | 2.81 | 3.075 | 1.578 | 5 1/2 | 2 13/16 | 2 1/2 | 12 3/4 | 20 3/8 | 17 | 39.0 |
| SKZSC045 | 1 3/4 | 2.99 | 3.06 | 3.385 | 1.859 | 6 3/4 | 3 9/16 | 3 | 14 7/8 | 24 | 20 | 55.8 |
| SKZSC050 | 2 | 3.49 | 3.56 | 3.935 | 2.109 | 7 3/4 | 3 13/16 | 3 1/4 | 17 | 27 1/2 | 23 | 90.4 |
| SKZSC057 | 2 1/4 | 3.95 | 4.02 | 4.45 | 2.36 | 8 5/8 | 4 5/16 | 4 | 19 1/8 | 29 3/4 | 24 7/8 | 122 |
| SKZSC063 | 2 1/2 | 4.35 | 4.42 | 4.93 | 2.657 | 8 5/8 | 4 5/16 | 4 | 19 5/8 | 31 1/8 | 26 1/4 | 142 |
| SKZSC076 | 3 | 5.24 | 5.31 | 5.96 | 3.166 | 9 1/4 | 5 5/16 | 5 3/8 | 23 3/4 | 37 3/4 | 32 1/8 | 251 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
