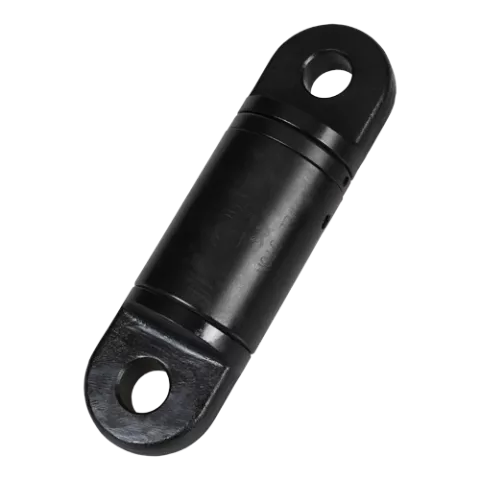

The Green Pin P-7740 Thrust Bearing Eye & Eye Swivel is a heavy-duty swivel with integrated thrust bearing for smooth 360-degree rotation under load. Unlike simple swivels that can bind under heavy loads, the thrust bearing maintains free rotation even at high working load limits.
Key Features
- Integrated thrust bearing for smooth rotation under load
- Eye and eye configuration for versatile connections
- Maintains free rotation even at high WLL
- Forged alloy steel construction
- Individually proof tested with certificate
Common Applications
- Preventing wire rope and sling twist during lifting
- Offshore and marine crane operations
- Heavy industrial lifting where load rotation must be controlled
- Rigging systems requiring free swivel action under load
Why Green Pin?
The P-7740 thrust bearing swivel maintains smooth rotation where standard swivels bind under load. Van Beest's precision engineering and individual proof testing deliver reliable swivel performance at rated capacity.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

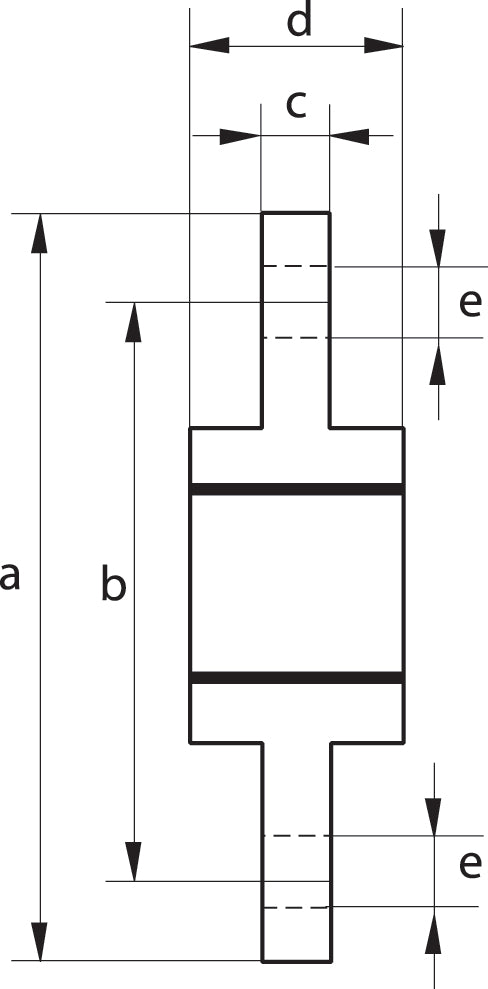

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|
| 1 | 3.091.40 | 6 27/32174 | 5 1/32128 | 1/212.5 | 1 15/1649 | 13/1621 | ||
| 2 | 7.723.50 | 8 25/32223 | 6 13/16173 | 3/419 | 2 11/1668 | 7/822 | ||
| 3 | 14.116.40 | 10 15/16278 | 8 9/32210 | 1 1/3226 | 3 1/879 | 1 5/3229 | ||
| 5 | 17.427.90 | 11 13/32290 | 8 3/4222 | 1 1/3226 | 3 1/289 | 1 7/3231 | ||
| 8 | 33.515.2 | 14 13/32366 | 10 7/8276 | 1 9/1640 | 4 3/16106 | 1 11/1643 | ||
| 10 | 42.119.1 | 15 11/32390 | 11 13/16300 | 1 9/1640 | 4 21/32118 | 1 15/1649 | ||
| 15 | 5926.6 | 18457 | 13 31/32355 | 1 9/1640 | 5 1/32128 | 1 15/1649 | ||
| 20 | 5525 | 18 21/32474 | 14 21/32372 | 1 9/1640 | 4 21/32118 | 251 | ||
| 30 | 11050 | 24 3/32612 | 18 19/32472 | 2 17/3264 | 5 7/16138 | 2 5/1659 | ||
| 40 | 20392 | 29 29/32760 | 23 5/8600 | 2 11/1668 | 6 5/8168 | 2 9/1665 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 7 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 10 mm (3/8") | WTGOO010 | $261.00 | ✓ In Stock | ||
| 20 mm (3/4") | WTGOO020 | $359.00 | ✓ In Stock | ||
| 30 mm (1-1/8") | WTGOO030 | $450.50 | ✓ In Stock | ||
| 50 mm (2") | WTGOO050 | $512.00 | ✓ In Stock | ||
| 80 mm | WTGOO080 | $886.50 | ✓ In Stock | ||
| 100 mm (4") | WTGOO100 | $1,100.00 | ✓ In Stock | ||
| 150 mm | WTGOO150 | $2,090.00 | ✓ In Stock |
