Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.

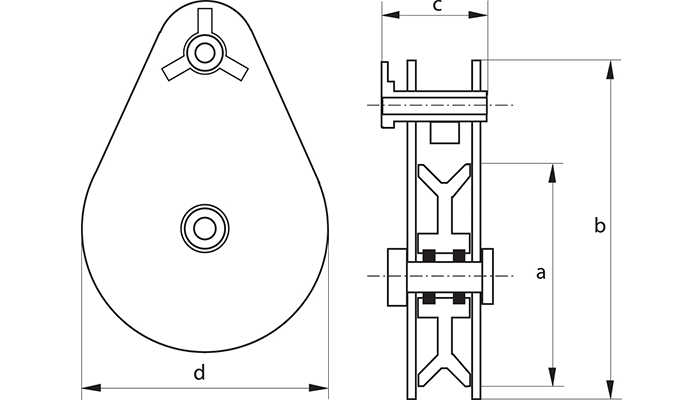

| WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | Wire rope dia (in)(mm) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|
| 8,8184 | 7,0543.2 | 8.824 | 3/8 - 1/210 - 12 | 4 1/2115 | 8 3/8213 | 3 9/3283 | 4 23/32120 | BKOFFST0404 |
| 17,6368 | 14,1096.4 | 19.99 | 3/4 - 7/820 - 22 | 6152 | 12305 | 4 1/4108 | 6 5/16160 | BKOFFST0608 |
| 17,6368 | 14,1096.4 | 26.512 | 3/4 - 7/820 - 22 | 8203 | 14 1/16357 | 4 1/4108 | 8 9/32210 | BKOFFST0808 |
| 17,6368 | 14,1096.4 | 39.718 | 3/4 - 7/820 - 22 | 10254 | 15 31/32406 | 4 1/4108 | 10 1/4260 | BKOFFST1008 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

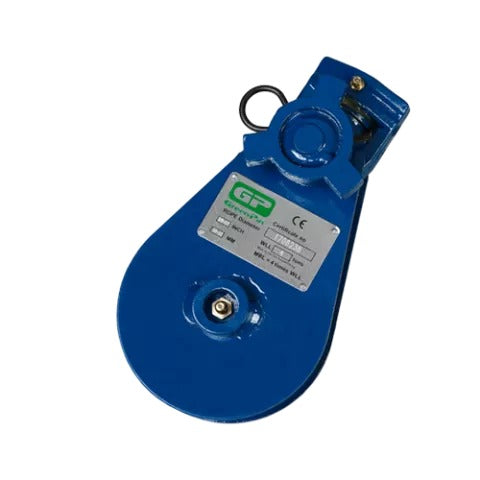

The Green Pin P-6953 Snatch Block T is a tail-board style snatch block designed for bolted or welded attachment to structures. The tail plate provides a fixed mounting point, making this block ideal for permanent or semi-permanent wire rope directional change installations.
Key Features
- Tail-board mounting plate for bolted or welded installation
- Side-opening cheek plate for wire rope access
- Heavy-duty sheave reduces friction and rope wear
- Forged steel frame
- Individually proof tested with certificate
Common Applications
- Permanent wire rope directional change points
- Fixed winch and hoist installations
- Structural mounting on equipment and platforms
- Marine and industrial fixed-mount applications
Why Green Pin?
The P-6953 tail-board design creates a permanent, certified directional change point. Individually proof tested by Van Beest for consistent quality in fixed installations.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 4 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 4" — 4 t — 10-12 mm rope | BKOFFST0404 | $476.50 | ✓ In Stock | ||
| 6" — 8 t — 20-22 mm rope | BKOFFST0608 | $557.00 | ✓ In Stock | ||
| 8" — 8 t — 20-22 mm rope | BKOFFST0808 | $1,645.00 | ✓ In Stock | ||
| 10" — 8 t — 20-22 mm rope | BKOFFST1008 | $2,205.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
