Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

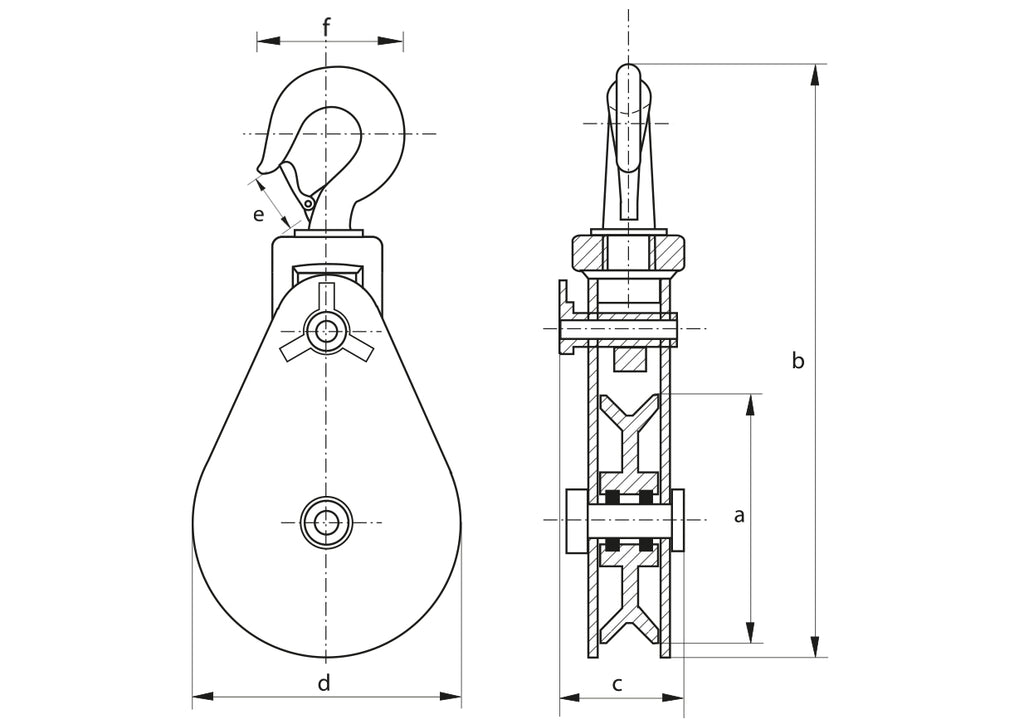

Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.
| WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | Wire rope dia (in)(mm) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 4,4092 | 3,5271.6 | 8.123.68 | 9/32 - 3/87 - 9 | 2 15/1675 | 11 13/32290 | 3 7/1687 | 3 7/3282 | 1 3/3228 | 4 1/4108 | BKOFFSH0302 |
| 8,8184 | 7,0543.2 | 13.26.00 | 3/8 - 1/210 - 12 | 4 17/32115 | 14 3/32358 | 3 1/289 | 4 23/32120 | 1 11/1643 | 4 29/32125 | BKOFFSH0404 |
| 8,8184 | 7,0543.2 | 18.78.50 | 1/2 - 9/1612 - 14 | 5 29/32150 | 16 7/32412 | 3 1/289 | 6 5/16160 | 1 9/1640 | 4 29/32125 | BKOFFSH0604 |
| 8,8184 | 7,0543.2 | 17.68 | 3/8 - 15/3210 - 12 | 7 7/8200 | 18 5/8473 | 3 19/3291 | 8 9/32210 | 1 9/1640 | 4 29/32125 | BKOFFSH0804 |
| 17,6368 | 14,1096.4 | 26.011.8 | 3/4 - 7/820 - 22 | 5 29/32150 | 19 3/4502 | 4 11/16119 | 6 5/16160 | 1 7/848 | 6 1/2165 | BKOFFSH0608 |
| 17,6368 | 14,1096.4 | 44.920.4 | 3/4 - 7/820 - 22 | 7 7/8200 | 21 11/16551 | 4 11/16119 | 8 9/32210 | 1 7/848 | 6 1/2165 | BKOFFSH0808 |
| 17,6368 | 14,1096.4 | 56.125.4 | 3/4 - 7/820 - 22 | 9 27/32250 | 23 27/32606 | 4 1/16103 | 10 1/4260 | 1 13/1646 | 6 1/2165 | BKOFFSH1008 |
| 17,6368 | 14,1096.4 | 70.632.0 | 3/4 - 7/820 - 22 | 11 13/16300 | 26 13/32671 | 4 11/16119 | 12 7/32310 | 1 13/1646 | 6 1/2165 | BKOFFSH1208 |
| 17,6368 | 14,1096.4 | 83.838.0 | 3/4 - 7/820 - 22 | 13 25/32350 | 28 3/16716 | 4 11/16119 | 14 3/16360 | 1 13/1646 | 6 1/2165 | BKOFFSH1408 |
| 17,6368 | 14,1096.4 | 10648.0 | 3/4 - 7/820 - 22 | 15 3/4400 | 30 23/32780 | 4 11/16119 | 16 11/32415 | 1 13/1646 | 6 1/2165 | BKOFFSH1608 |
| 17,6368 | 14,1096.4 | 12858.0 | 3/4 - 7/820 - 22 | 17 23/32450 | 33 1/8841 | 4 11/16119 | 18 5/16465 | 1 13/1646 | 6 1/2165 | BKOFFSH1808 |
| 26,45512 | 21,1649.6 | 45.220.5 | 3/4 - 7/820 - 22 | 5 29/32150 | 24 1/4616 | 4 11/16119 | 6 5/16160 | 2 3/470 | 9 9/32236 | BKOFFSH0612 |
| 26,45512 | 21,1649.6 | 66.130.0 | 3/4 - 7/820 - 22 | 7 7/8200 | 25 1/4641 | 5 3/32129 | 8 9/32210 | 2 3/470 | 9 9/32236 | BKOFFSH0812 |
| 26,45512 | 21,1649.6 | 78.335.5 | 3/4 - 7/820 - 22 | 9 27/32250 | 28 21/32728 | 4 29/32125 | 10 1/4260 | 2 3/470 | 9 9/32236 | BKOFFSH1012 |
| 26,45512 | 21,1649.6 | 11050.0 | 3/4 - 7/820 - 22 | 11 13/16300 | 31 7/8810 | 6 17/32166 | 12 7/32310 | 2 3/470 | 9 9/32236 | BKOFFSH1212 |
| 26,45512 | 21,1649.6 | 13059.0 | 3/4 - 7/820 - 22 | 13 25/32350 | 32 7/8835 | 6 17/32166 | 14 3/16360 | 2 3/470 | 9 9/32236 | BKOFFSH1412 |
| 26,45512 | 21,1649.6 | 79.436 | 3/4 - 7/820 - 22 | 15 3/4400 | 34 31/32888 | 6 17/32166 | 16 11/32415 | 2 3/470 | 9 9/32236 | BKOFFSH1612 |
| 26,45512 | 21,1649.6 | 92.642 | 3/4 - 7/820 - 22 | 17 23/32450 | 37 3/32942 | 6 17/32166 | 18 5/16465 | 2 3/470 | 9 9/32236 | BKOFFSH1812 |
| 33,06915 | 26,45512 | 51.623.4 | 124 - 26 | 5 29/32150 | 24 21/32626 | 5 7/16138 | 6 5/16160 | 2 3/470 | 9 9/32236 | BKOFFSH0615 |
| 33,06915 | 26,45512 | 65.029.5 | 124 - 26 | 7 7/8200 | 26 3/32663 | 5 19/32142 | 8 9/32210 | 2 3/470 | 9 9/32236 | BKOFFSH0815 |
| 33,06915 | 26,45512 | 90.441.0 | 124 - 26 | 9 27/32250 | 29 11/32745 | 6 17/32166 | 10 1/4260 | 2 3/470 | 9 9/32236 | BKOFFSH1015 |
| 33,06915 | 26,45512 | 11552.0 | 124 - 26 | 11 13/16300 | 31 7/8810 | 6 17/32166 | 12 7/32310 | 2 3/470 | 9 9/32236 | BKOFFSH1215 |
| 33,06915 | 26,45512 | 12958.5 | 124 - 26 | 13 25/32350 | 32 15/16837 | 6 17/32166 | 14 3/16360 | 2 3/470 | 9 9/32236 | BKOFFSH1415 |
| 33,06915 | 26,45512 | 15168.5 | 124 - 26 | 15 3/4400 | 35 1/32890 | 6 17/32166 | 16 11/32415 | 2 3/470 | 9 9/32236 | BKOFFSH1615 |
| 33,06915 | 26,45512 | 18182.0 | 124 - 26 | 17 23/32450 | 37 3/32942 | 6 17/32166 | 18 5/16465 | 2 3/470 | 9 9/32236 | BKOFFSH1815 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

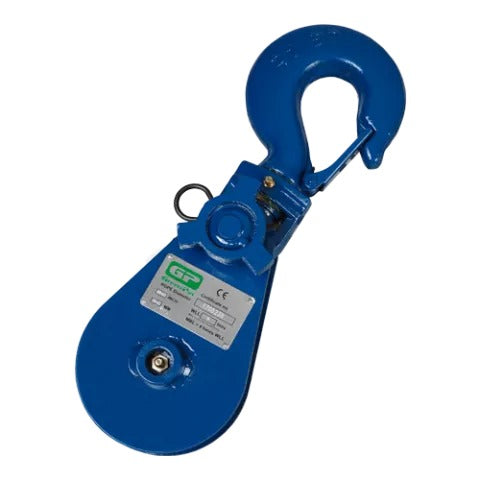

The Green Pin P-6952 Snatch Block HK features an integrated hook for quick attachment to anchor points without a separate shackle. The side-opening cheek plate allows wire rope insertion without threading, and the heavy-duty sheave reduces rope friction and bending stress.
Key Features
- Integrated hook for quick attachment — no separate shackle needed
- Side-opening cheek plate for fast rope loading
- Heavy-duty sheave for reduced friction and rope wear
- Forged steel frame
- Individually proof tested with certificate
Common Applications
- Quick-attach mechanical advantage setups
- Winch and crane directional changes
- Field rigging where speed of setup matters
- Construction and industrial pulling operations
Why Green Pin?
The integrated hook eliminates the need for a separate shackle, speeding up rigging setup. Individually proof tested by Van Beest for reliable performance under load.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 16 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 3" — 2 t — 7-9 mm rope | BKOFFSH0302 | $275.00 | ✓ In Stock | ||
| 4" — 4 t — 10-12 mm rope | BKOFFSH0404 | $391.00 | ✓ In Stock | ||
| 6" — 4 t — 12-14 mm rope | BKOFFSH0604 | $457.00 | ✓ In Stock | ||
| 6" — 8 t — 20-22 mm rope | BKOFFSH0608 | $613.50 | ✓ In Stock | ||
| 6" — 12 t — 20-22 mm rope | BKOFFSH0612 | $1,595.00 | ✓ In Stock | ||
| 6" — 15 t — 24-26 mm rope | BKOFFSH0615 | $2,145.00 | ✓ In Stock | ||
| 8" — 4 t — 10-12 mm rope | BKOFFSH0804 | $539.50 | ✓ In Stock | ||
| 8" — 8 t — 20-22 mm rope | BKOFFSH0808 | $784.50 | ✓ In Stock | ||
| 8" — 12 t — 20-22 mm rope | BKOFFSH0812 | $1,635.00 | ✓ In Stock | ||
| 8" — 15 t — 24-26 mm rope | BKOFFSH0815 | $2,330.00 | ✓ In Stock | ||
| 10" — 8 t — 20-22 mm rope | BKOFFSH1008 | $1,490.00 | ✓ In Stock | ||
| 10" — 12 t — 20-22 mm rope | BKOFFSH1012 | $1,640.00 | ✓ In Stock | ||
| 10" — 15 t — 24-26 mm rope | BKOFFSH1015 | $2,255.00 | ✓ In Stock | ||
| 12" — 8 t — 20-22 mm rope | BKOFFSH1208 | $2,690.00 | ✓ In Stock | ||
| 12" — 15 t — 24-26 mm rope | BKOFFSH1215 | $3,070.00 | ✓ In Stock | ||
| 16" — 15 t — 24-26 mm rope | BKOFFSH1615 | $4,515.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
