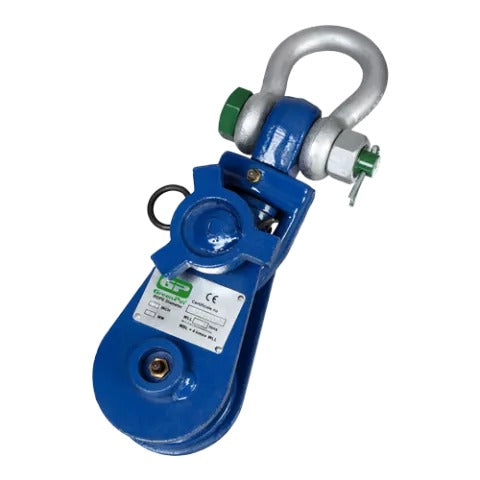

Green Pin P-6951 Snatch Block S with Shackle
Green Pin P-6951 Snatch Block S diagram
Roll over image to zoom in Click on image to zoom
Green Pin P-6951 Snatch Block S with ShackleGreen Pin P-6951 Snatch Block S diagram

Green Pin P-6951 Snatch Block S

Green Pin (Van Beest)SKU: BKOFFSS0302
Sheave — WLL — Rope: 3" — 2 t — 7-9 mm rope
Price:
$288.00
🛠️ Ask our AI rigging specialist (bottom-right) OR email sales@slingcenter.com →

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Working Load Limits below are as certified by the manufacturer at a 4:1 design factor — minimum breaking load = 4 × WLL.
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.

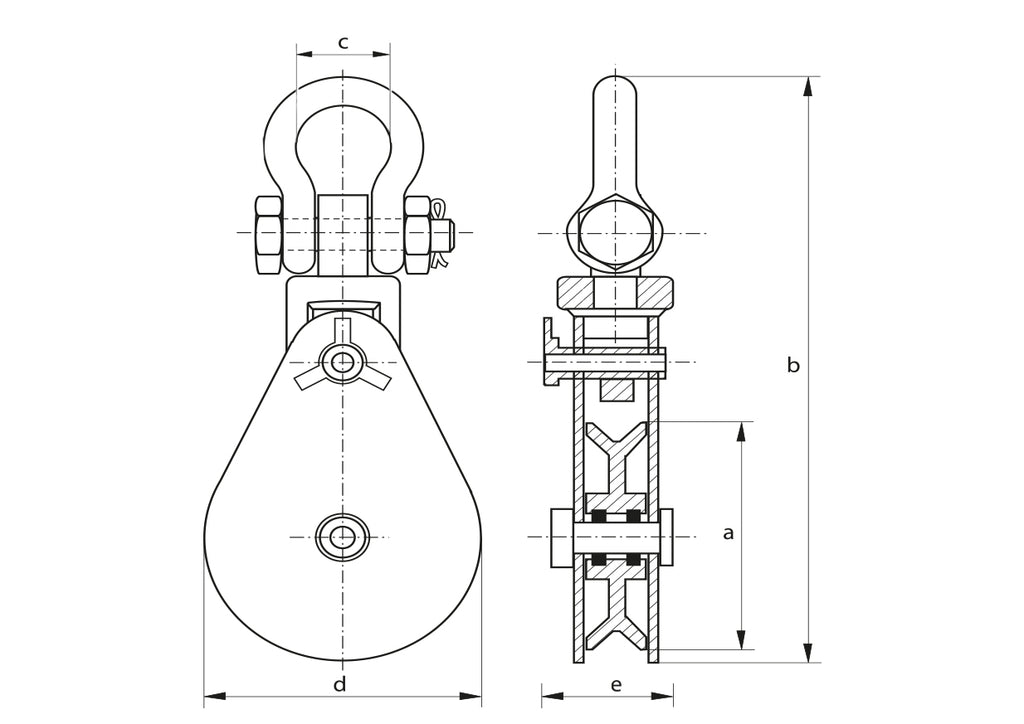

Green Pin P-6951 Snatch Block S dimensions
Dimension Legend
A
Sheave outside diameter
B
Length
C
Width
D
Outside width
E
Thickness
WLL 4:1 (lb)(t)WLL 5:1(lb)(t)
SlingCenter derate		Weight (lb)(kg)Wire rope dia (in)(mm)A (in)(mm)B (in)(mm)C (in)(mm)D (in)(mm)E (in)(mm)Stock #
4,40923,5271.68.533.879/32 - 3/87 - 92 15/167511 15/322911 11/16433 7/32823 7/1687BKOFFSS0302
8,81847,0543.214.06.363/8 - 1/210 - 124 17/3211514 9/323632 9/32584 23/321203 1/289BKOFFSS0404
8,81847,0543.219.18.641/2 - 9/1612 - 145 29/3215016 13/324172 9/32586 5/161603 1/289BKOFFSS0604
8,81847,0543.225.711.73/8 - 1/210 - 127 7/820018 13/164782 9/32588 9/322104 11/16119BKOFFSS0804
17,636814,1096.431.114.13/4 - 7/820 - 225 29/3215018 13/164782 11/16686 5/161604 11/16119BKOFFSS0608
17,636814,1096.432.914.99/16 - 5/814 - 165 29/3215018 13/164782 11/16686 5/161604 11/16119BKOFFSS060816
17,636814,1096.442.719.43/4 - 7/820 - 227 7/820020 3/45272 11/16688 9/322104 11/16119BKOFFSS0808
17,636814,1096.454.524.73/4 - 7/820 - 229 27/3225022 7/85812 11/166810 1/42604 3/32104BKOFFSS1008
17,636814,1096.457.3269/16 - 5/814 - 169 27/3225022 7/85812 11/166810 1/42604 3/32104BKOFFSS100816
17,636814,1096.470.632.03/4 - 7/820 - 2211 13/1630025 7/166462 11/166812 7/323104 3/16106BKOFFSS1208
17,636814,1096.488.240.03/4 - 7/820 - 2213 25/3235027 7/326912 11/166814 3/163604 11/16119BKOFFSS1408
17,636814,1096.477.2353/4 - 7/820 - 2215 3/440029 3/47562 11/166816 11/324154 11/16119BKOFFSS1608
17,636814,1096.412757.53/4 - 7/820 - 2217 23/3245032 5/328172 11/166818 5/164654 11/16119BKOFFSS1808
26,4551221,1649.644.120.03/4 - 7/820 - 225 29/3215021 11/165513 9/32836 5/161604 11/16119BKOFFSS0612
26,4551221,1649.644.920.49/16 - 5/814 - 165 29/3215021 11/165513 9/32836 5/161604 11/16119BKOFFSS061216
26,4551221,1649.662.128.23/4 - 7/820 - 227 7/820022 27/325803 9/32838 9/322104 29/32125BKOFFSS0812
26,4551221,1649.662.828.59/16 - 5/814 - 167 7/820022 27/325803 9/32838 9/322104 29/32125BKOFFSS081216
26,4551221,1649.676.134.53/4 - 7/820 - 229 27/3225026 23/326793 9/328310 1/42604 29/32125BKOFFSS1012
26,4551221,1649.610949.53/4 - 7/820 - 2211 13/1630029 7/167483 9/328312 7/323105 3/4146BKOFFSS1212
26,4551221,1649.612858.03/4 - 7/820 - 2213 25/3235030 7/167733 9/328314 3/163605 23/32145BKOFFSS1412
26,4551221,1649.614967.53/4 - 7/820 - 2215 3/440032 3/88223 9/328316 11/324156 11/16170BKOFFSS1612
26,4551221,1649.618182.03/4 - 7/820 - 2217 23/3245034 17/328773 9/328318 5/164656 11/16170BKOFFSS1812
33,0691526,4551254.624.8124 - 265 29/3215023 1/325853 5/8926 5/161605 7/16138BKOFFSS0615
33,0691526,4551266.230.0124 - 267 7/820025 7/166463 5/8928 9/322105 19/32142BKOFFSS0815
33,0691526,4551295.943.5124 - 269 27/3225027 3/47053 5/89210 1/42605 3/4146BKOFFSS1015
33,0691526,4551211451.5124 - 2611 13/1630030 11/327713 5/89212 7/323105 19/32142BKOFFSS1215
33,0691526,4551213963124 - 2613 25/3235031 13/327983 5/89214 3/83656 23/32171BKOFFSS1415
33,0691526,4551215369.5124 - 2615 3/440033 3/88483 5/89216 11/324156 11/16170BKOFFSS1615
33,0691526,4551218383.0124 - 2617 23/3245035 11/328983 5/89218 5/164656 11/16170BKOFFSS1815
48,5012238,80117.620794.01 1/8 - 1 1/428 - 3213 25/3235037 13/329504 31/3212614 3/83657 3/32180BKOFFSS1422
48,5012238,80117.62411101 1/8 - 1 1/428 - 3215 15/1640539 21/3210074 31/3212616 11/324157 3/32180BKOFFSS1622
48,5012238,80117.62731241 1/8 - 1 1/428 - 3217 23/3245041 5/810574 31/3212618 5/164657 3/32180BKOFFSS1822
66,1383052,910243061391 1/4 - 1 1/232 - 3815 15/1640542 3/810765 7/1613816 11/324158 9/32210BKOFFSS1630
66,1383052,910244812181 1/8 - 1 1/428 - 3217 23/3245043 11/3211015 7/1613818 5/164658 9/32210BKOFFSS1830
70,5473256,43825.64131881 1/4 - 1 3/828 - 3516 11/3241546 31/3210605 7/1613816 27/324287 19/32193BKOFFSS1632
70,5473256,43825.64622101 1/8 - 1 1/228 - 3818 3/846748 11/1611115 7/1613818 29/324807 19/32193BKOFFSS1832
70,5473256,43825.65282401 1/8 - 1 1/228 - 3819 7/850550 15/3211525 7/1613820 15/325207 19/32193BKOFFSS2032
70,5473256,43825.66162801 1/8 - 1 1/428 - 3223 3/859454 13/3212505 7/1613824 1/326107 19/32193BKOFFSS2332
79,3663663,49328.85512501 1/8 - 1 1/228 - 3819 7/850552 5/812016 5/1616020 15/325208203BKOFFSS2036
119,0495495,23943.210324681 3/8 - 238 - 5124 17/3262364 1/415407 3/3218025 1/863810 19/32269BKOFFSS2354
165,34675132,2776014056371 3/4 - 244 - 5124 17/3262370 5/818157 15/3219025 1/863810 15/32266BKOFFSS2375
165,34675132,2776017207801 3/4 - 2 1/444 - 5729 1/274976 31/3219557 15/3219030 5/1677010 15/32266BKOFFSS3075
220,462100176,36980261511862 1/2 - 2 5/864 - 6733 9/3284591 3/3223149 3/823833 27/3286010 1/4260BKOFFSS32100
275,577125220,462100300513632 3/4 - 370 - 7637 13/3295098 31/32251410 13/162753896510 1/4260BKOFFSS35125

The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

The Green Pin P-6951 Snatch Block S is a heavy-duty snatch block with a side-opening cheek plate that allows wire rope to be inserted without threading through the end. The sheave reduces friction and bending stress on the wire rope during directional changes and mechanical advantage setups.

Key Features

  • Side-opening cheek plate for quick wire rope insertion
  • Heavy-duty sheave reduces rope friction and wear
  • Forged steel frame and sheave
  • Shackle-ready top fitting
  • Individually proof tested with certificate

Common Applications

  • Mechanical advantage rigging (changing pull direction)
  • Wire rope directional changes
  • Winch and crane operations
  • Construction, marine, and industrial pulling operations

Why Green Pin?

Green Pin snatch blocks combine heavy-duty construction with easy wire rope loading. Van Beest's individual proof testing ensures reliable performance under the demanding loads of multi-part rigging systems.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 30 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Stock Qty Add
3" — 2 t — 7-9 mm rope BKOFFSS0302 $288.00 ✓ In Stock
4" — 4 t — 10-12 mm rope BKOFFSS0404 $414.00 ✓ In Stock
6" — 4 t — 12-14 mm rope BKOFFSS0604 $519.00 ✓ In Stock
6" — 8 t — 20-22 mm rope BKOFFSS0608 $624.50 ✓ In Stock
6" — 8 t — 14-16 mm rope BKOFFSS060816 $684.50 ✓ In Stock
6" — 12 t — 20-22 mm rope BKOFFSS0612 $1,645.00 ✓ In Stock
6" — 12 t — 14-16 mm rope BKOFFSS061216 $1,510.00 ✓ In Stock
6" — 15 t — 24-26 mm rope BKOFFSS0615 $2,215.00 ✓ In Stock
8" — 4 t — 10-12 mm rope BKOFFSS0804 $554.00 ✓ In Stock
8" — 8 t — 20-22 mm rope BKOFFSS0808 $876.50 ✓ In Stock
8" — 12 t — 20-22 mm rope BKOFFSS0812 $1,675.00 ✓ In Stock
8" — 12 t — 14-16 mm rope BKOFFSS081216 $1,565.00 ✓ In Stock
8" — 15 t — 24-26 mm rope BKOFFSS0815 $2,380.00 ✓ In Stock
10" — 8 t — 20-22 mm rope BKOFFSS1008 $1,510.00 ✓ In Stock
10" — 8 t — 14-16 mm rope BKOFFSS100816 $1,510.00 ✓ In Stock
10" — 12 t — 20-22 mm rope BKOFFSS1012 $1,780.00 ✓ In Stock
10" — 15 t — 24-26 mm rope BKOFFSS1015 $2,430.00 ✓ In Stock
12" — 8 t — 20-22 mm rope BKOFFSS1208 $2,835.00 ✓ In Stock
12" — 12 t — 20-22 mm rope BKOFFSS1212 $3,015.00 ✓ In Stock
12" — 15 t — 24-26 mm rope BKOFFSS1215 $3,095.00 ✓ In Stock
14" — 8 t — 20-22 mm rope BKOFFSS1408 $3,120.00 ✓ In Stock
14" — 12 t — 20-22 mm rope BKOFFSS1412 $3,525.00 ✓ In Stock
14" — 22 t — 28-32 mm rope BKOFFSS1422 $5,395.00 ✓ In Stock
16" — 12 t — 20-22 mm rope BKOFFSS1612 $3,605.00 ✓ In Stock
16" — 15 t — 24-26 mm rope BKOFFSS1615 $4,650.00 ✓ In Stock
16" — 22 t — 28-32 mm rope BKOFFSS1622 $5,500.00 ✓ In Stock
18" — 12 t — 20-22 mm rope BKOFFSS1812 $3,690.00 ✓ In Stock
18" — 15 t — 24-26 mm rope BKOFFSS1815 $4,895.00 ✓ In Stock
18" — 22 t — 28-32 mm rope BKOFFSS1822 $5,590.00 ✓ In Stock
18" — 30 t — 28-32 mm rope BKOFFSS1830 $6,530.00 ✓ In Stock

Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
