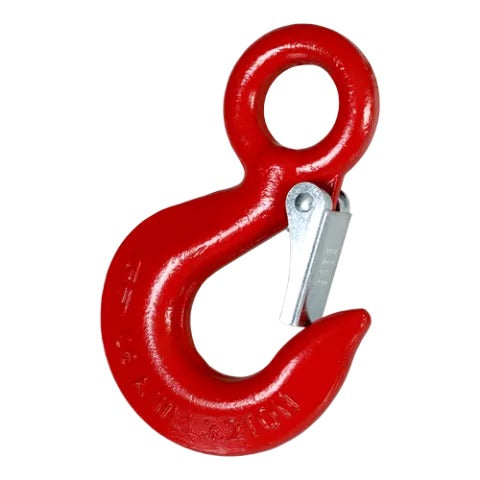

Green Pin P-6710A Eye Hook Grade 8

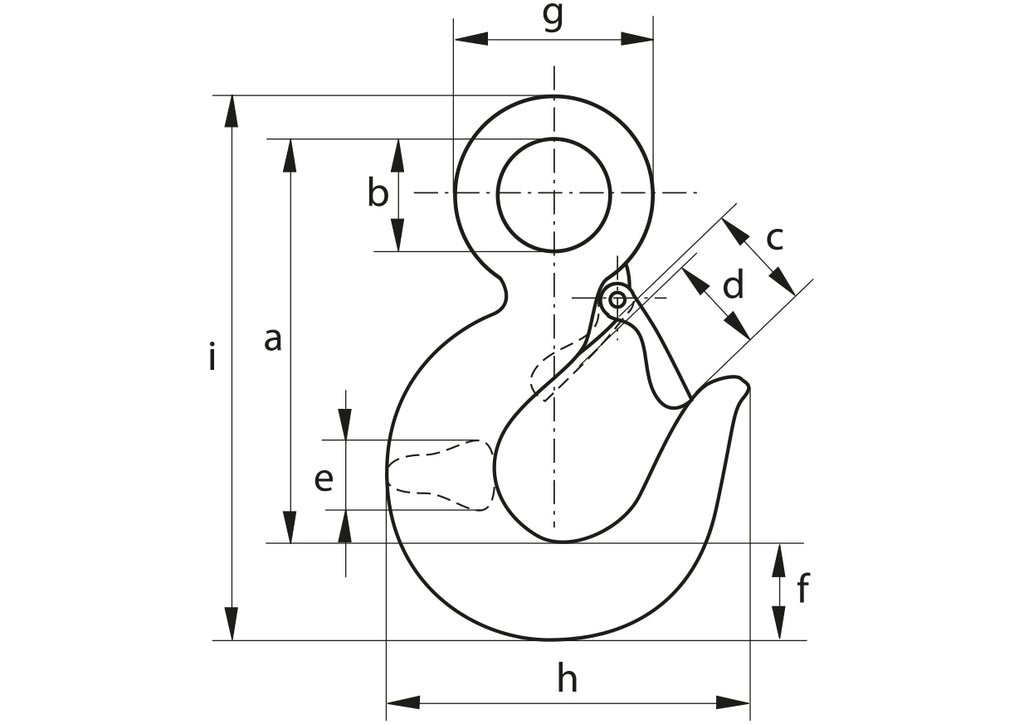

Green Pin P-6714A Hook E Grade 8 - dimensional diagram
Roll over image to zoom in Click on image to zoom
Green Pin P-6710A Eye Hook Grade 8Green Pin P-6714A Hook E Grade 8 - dimensional diagram

Green Pin P-6714A Hook E Grade 8

Green Pin (Van Beest)SKU: HKK14A010
WLL: 1.25 t
Price:
$12.25
🛠️ Ask our AI rigging specialist (bottom-right) OR email sales@slingcenter.com →

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Working Load Limits below are as certified by the manufacturer at a 4:1 design factor — minimum breaking load = 4 × WLL.
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.
Green Pin P-6714A Hook E Grade 8 dimensions
Dimension Legend
A
Length
B
Eye inside diameter
C
Hook opening
D
Hook opening
E
Thickness
F
Width
G
Eye outside diameter
H
Outside width
I
Outside length
WLL 4:1 (lb)(t)WLL 5:1(lb)(t)
SlingCenter derate		Weight (lb)(kg)A (in)(mm)B (in)(mm)C (in)(mm)D (mm)E (in)(mm)F (in)(mm)G (in)(mm)H (in)(mm)I (in)(mm)Stock #
2,7551.252,20410.660.303 3/16813/41915/1624205/8163/4191 15/32372 23/32704 9/32109HKK14A010
3,5271.62,8211.280.980.443 19/329129/32231 1/32262223/32187/8221 13/16463 1/16794 7/8124HKK14A015
5,5112.54,40921.390.634 1/81051 1/16271 1/4322725/32201 1/16272 1/16523 21/32935 21/32145HKK14A020
7,0543.25,6432.562.371.084 7/81241 1/4321 11/32343015/16241 3/16302 7/16624 9/321096 21/32169HKK14A030
11,9045.49,5234.323.441.565 25/321471 17/32391 23/3244371 7/32311 13/32362 29/327451277 29/32201HKK14A045
18,0778.214,4626.568.713.957 15/321901 31/32502 5/3255481 15/32371 7/8483 25/32966 5/816810 9/32261HKK14A070
28,21912.822,57510.2417.17.759 1/162302 17/32642 17/3264531 7/8482 13/32614 31/321267 25/3219812 11/16322HKK14A110
35,2731628,21912.823.810.8102542 25/32712 3/470602 9/32582 23/32695 15/321398 27/3222314 1/16357HKK14A150
48,5012238,80117.637.116.912 7/163163 1/2893 19/3291772 15/32633 3/16816 21/3216911 5/3228317 7/32437HKK14A220

The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

The Green Pin P-6714A Hook E Grade 8 is a Grade 8 eye hook designed for general purpose lifting and rigging. The eye connection provides versatile attachment to shackles, links, and sling hardware, while the wide hook throat accommodates various load types.

Key Features

  • Grade 8 alloy steel for high WLL
  • Eye connection for versatile attachment
  • Wide hook throat
  • Safety latch prevents accidental release
  • Individually proof tested with certificate

Common Applications

  • General purpose overhead lifting
  • Chain and wire rope sling assemblies
  • Industrial and construction rigging

Why Green Pin?

Green Pin eye hooks deliver reliable, versatile connections for general lifting. Individually proof tested by Van Beest.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 9 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Stock Qty Add
1.25 t HKK14A010 $12.25 ✓ In Stock
1.6 t HKK14A015 $15.65 ✓ In Stock
2.5 t HKK14A020 $19.05 ✓ In Stock
3.2 t HKK14A030 $25.80 ✓ In Stock
5.4 t HKK14A045 $41.85 ✓ In Stock
8.2 t HKK14A070 $86.80 ✓ In Stock
12.8 t HKK14A110 $228.50 ✓ In Stock
16 t HKK14A150 $322.50 ✓ In Stock
22 t HKK14A220 $663.00 ✓ In Stock

Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.

Chat with our AI rigging specialist

Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.

Prefer to email?

Send to: sales@slingcenter.com

Include:

  • What you are lifting (shape, material, fragility)
  • Load weight (lb)
  • Length / reach needed
  • Pick points — smooth lugs, sharp edges, or a hook?
  • Environment — indoor, outdoor, heat, saltwater, chemicals?
  • Quantity and timeline
  • Your phone number if you want a callback

Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
