Green Pin P-6706A Alloy Sliding Choker Hook

Green Pin (Van Beest)SKU: HKK06A008
No reviews

WLL: 0.8 t
Price:
Sale price$24.41

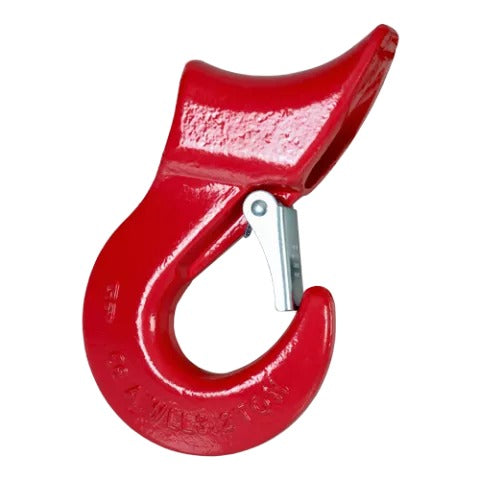

The Green Pin P-6706A Alloy Sliding Choker Hook is designed to slide freely along a wire rope or chain to create a choker hitch without damaging the sling. The alloy steel construction provides high capacity in a compact design optimized for choker configurations.

Key Features

  • Slides freely along wire rope or chain
  • Creates choker hitch without sling damage
  • Alloy steel construction for high capacity
  • Compact, low-profile design
  • Individually proof tested with certificate

Common Applications

  • Wire rope choker hitches
  • Chain choker configurations
  • Bundling and securing cylindrical loads
  • Pipe, tube, and bar stock handling

Why Green Pin?

Green Pin choker hooks slide smoothly without damaging the sling — maintaining full sling capacity in choker configurations. Individually proof tested by Van Beest.

Specifications — Full Dimensions by Size

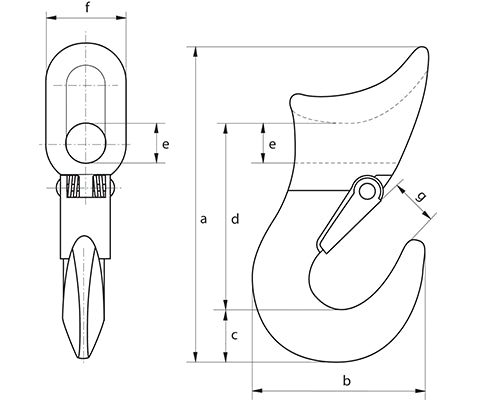

Green Pin P-6706A Alloy Sliding Choker Hook dimensions
Dimension Legend
A
Inside width at pin
B
Eye thickness
C
Inside length
D
Pin diameter
E
Inside width top
F
Eye outside ø
G
Outside width top
Size (in)(mm) WLL (t) Weight (lb)(kg)A (in)(mm)B (in)(mm)C (in)(mm)D (in)(mm)E (in)(mm)F (in)(mm)G (in)(mm)Stock #
0.8 0.890.404 13/321122 15/32633/4192 9/16659/16141 3/16305/816HKK06A008
1.6 1.670.765 5/81433 7/32821 1/32263 9/328321/32171 3/163023/3218HKK06A016
2.5 2.831.286 11/161703 27/32981 3/16303 13/16973/4191 5/163315/1624HKK06A025
3.2 4.211.917 23/321964 17/321151 13/32364 11/321107/8221 9/16401 1/1627HKK06A032
5.4 9.264.2010 2/82605 19/321421 13/16465 23/321451 13/32362 3/8601 3/835HKK06A054

Dimensions sourced directly from manufacturer catalog pages.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Chat with our AI rigging specialist

Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.

Prefer to email?

Send to: sales@slingcenter.com

Include:

  • What you are lifting (shape, material, fragility)
  • Load weight (lb)
  • Length / reach needed
  • Pick points — smooth lugs, sharp edges, or a hook?
  • Environment — indoor, outdoor, heat, saltwater, chemicals?
  • Quantity and timeline
  • Your phone number if you want a callback

Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.

Order Sheet — 5 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Stock Qty Add
0.8 t HKK06A008 $24.41 ✓ In Stock
1.6 t HKK06A016 $39.43 ✓ In Stock
2.5 t HKK06A025 $56.11 ✓ In Stock
3.2 t HKK06A032 $99.63 ✓ In Stock
5.4 t HKK06A054 $199.79 ✓ In Stock

Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
