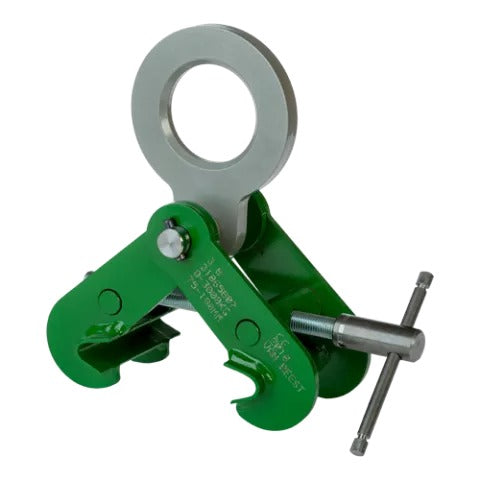

The Green Pin P-6685 H-Type Beam Lifting Clamp is designed for gripping structural steel beam flanges during lifting and positioning. Engineered for the thicker profiles of I-beams, H-beams, and channel sections.
Key Features
- H-type design for structural beam flanges
- Cam-actuated self-locking jaw
- Hardened jaw pads for secure grip
- Spring-loaded safety lock
- Individually proof tested with certificate
Common Applications
- Structural steel erection
- Bridge construction and heavy civil works
- Steel fabrication shops
Why Green Pin?
Green Pin beam clamps deliver reliable performance in structural steel work. Individually proof tested by Van Beest.

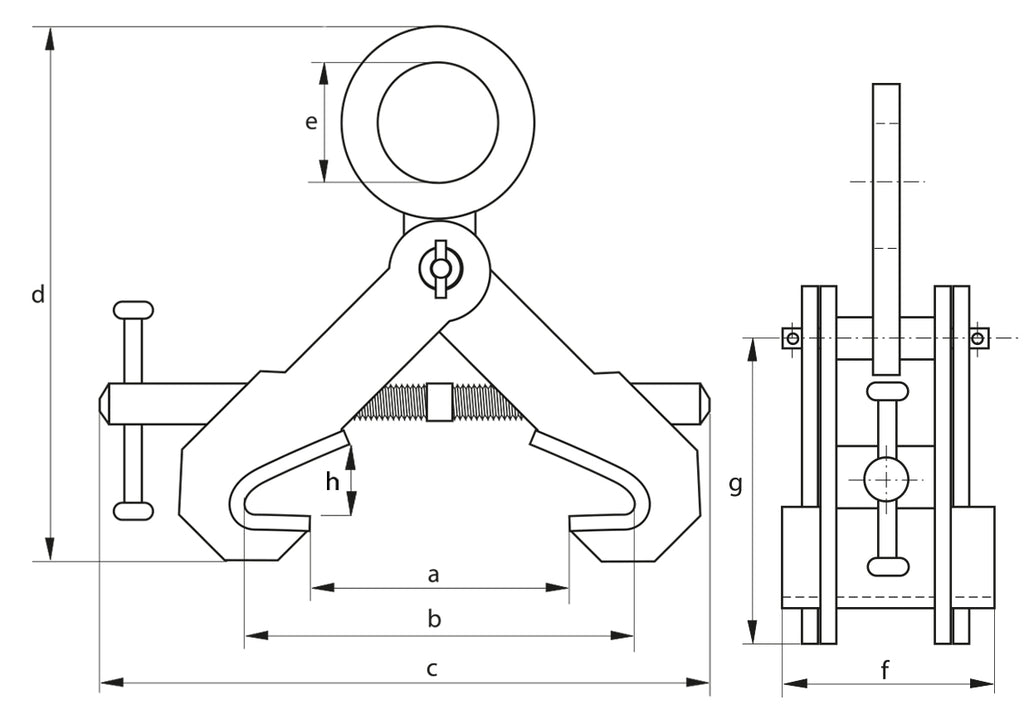

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 10.44.70 | 0 - 5 1/80 - 130 | 2 15/16 - 7 15/3275 - 190 | 14 1/16357 | 13 19/32345 | 2 7/873 | 4 23/32120 | 4 7/16 - 7 9/16113 - 192 | 1 3/1630 | PK020ESV | |
| 3 | 11.35.10 | 0 - 5 1/80 - 130 | 2 15/16 - 7 15/3275 - 190 | 14 1/16357 | 13 19/32345 | 2 7/873 | 4 23/32120 | 4 7/16 - 7 9/16113 - 192 | 1 3/1630 | PK030ESV | |
| 4 | 23.310.6 | 0 - 8 21/320 - 220 | 5 29/32 - 11 13/16150 - 300 | 17 23/32450 | 16 5/8422 | 3 5/3280 | 7 3/32180 | 7 9/32 - 9 7/16185 - 240 | 1 9/1640 | PK040ESV | |
| 5 | 29.713.5 | 0 - 8 21/320 - 220 | 5 29/32 - 11 13/16150 - 300 | 17 23/32450 | 16 5/8422 | 3 5/3280 | 7 3/32180 | 7 9/32 - 9 7/16185 - 240 | 1 9/1640 | PK050ESV | |
| 10 | 11050.0 | 0 - 7 1/20 - 190 | 13 25/32 - 17 23/32350 - 450 | 27 3/8695 | 25 11/16653 | 3 15/3288 | 7 7/8200 | 15 3/4 - 17 19/32400 - 447 | 3 3/495 | PK100ESV |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 4 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 2 t — 75-190 mm | PK020ESV | $705.06 | ✓ In Stock | ||
| 3 t — 75-190 mm | PK030ESV | $910.10 | ✓ In Stock | ||
| 4 t — 150-300 mm | PK040ESV | $1,342.18 | ✓ In Stock | ||
| 5 t — 150-300 mm | PK050ESV | $1,479.21 | ✓ In Stock |
