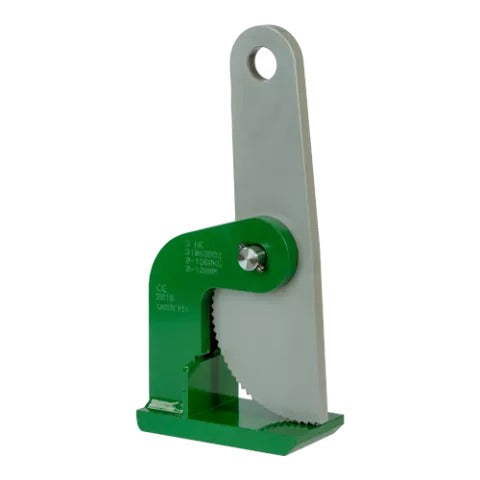

The Green Pin BigMouth P-6636 H-Type Lifting Clamp is a horizontal plate lifting clamp designed to grip and transport steel plates lying flat. The horizontal jaw design evenly distributes clamping force across the plate edge, ensuring stable, level lifts when moving plates between storage, cutting tables, and workstations.
Key Features
- H-type design optimized for horizontal plate lifting
- Cam-actuated jaw with automatic load-locking
- Oversized BigMouth jaw for thicker plate stock
- Hardened jaw pads prevent plate slippage and surface damage
- Spring-loaded safety lock prevents accidental release
- Individually proof tested with certificate
Common Applications
- Horizontal lifting and transport of steel plates
- Steel service centers, fabrication shops, and shipyards
- Loading/unloading plate stock from trucks and storage racks
- Feeding plates to plasma cutters, shears, and press brakes
Why Green Pin?
Green Pin horizontal clamps are trusted in high-volume steel handling operations worldwide. Van Beest's individual proof testing and full traceability ensure every clamp meets the demands of continuous industrial use.

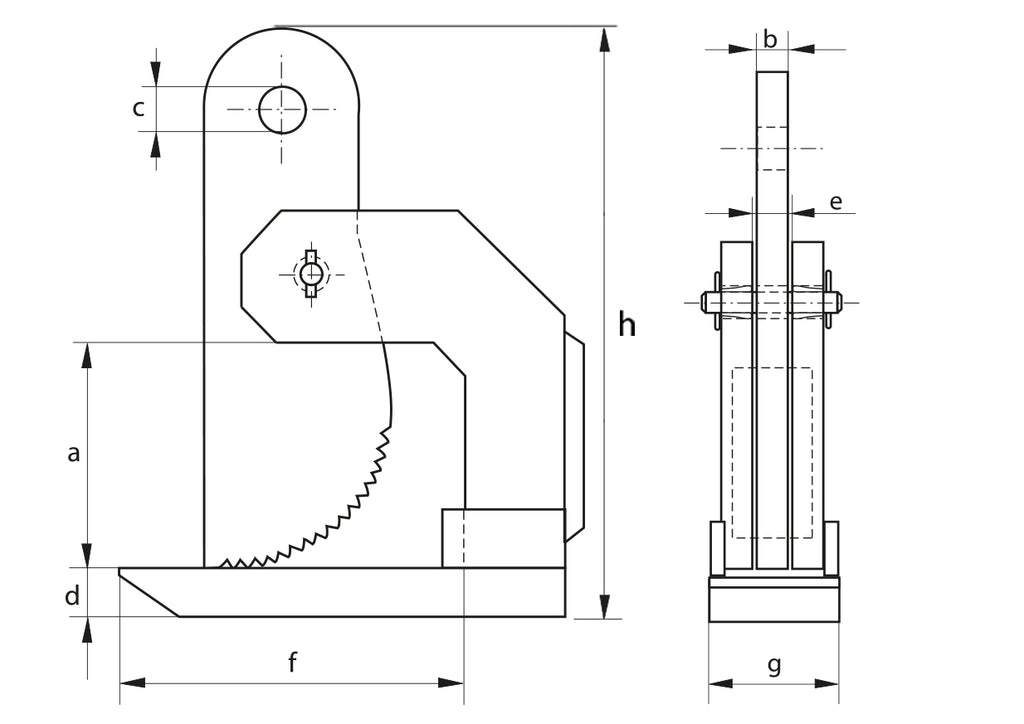

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 22.110.0 | 19/3215 | 1 3/1630 | 25/3220 | 4 23/32120 | 7 3/32180 | 3 17/3290 | 15 1/4387 | PK030EHS | |
| 4 | 33.115.0 | 25/3220 | 1 3/1630 | 31/3225 | 5 23/32145 | 8 21/32220 | 4 1/8105 | 16 5/16414 | PK040EHS | |
| 6 | 36.416.5 | 25/3220 | 1 3/1630 | 31/3225 | 5 23/32145 | 8 21/32220 | 4 23/32120 | 16 5/16414 | PK060EHS | |
| 8 | 46.321.0 | 1 3/1630 | 1 3/1630 | 1 3/835 | 5 5/16135 | 8 27/32225 | 4 23/32120 | 16 27/32428 | PK080EHS | |
| 10 | 48.522.0 | 1 3/1630 | 1 3/1630 | 1 3/835 | 5 5/16135 | 8 27/32225 | 4 23/32120 | 16 27/32428 | PK100EHS | |
| 15 | 11753 | 1 3/835 | 1 25/3245 | 1 3/835 | 9 7/16240 | 13 25/32350 | 5 1/2140 | 26 3/16665 | PK150EHS |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 3 t — 0-100 mm | PK030EHS | $644.17 | ✓ In Stock | ||
| 4 t — 0-100 mm | PK040EHS | $947.81 | ✓ In Stock | ||
| 6 t — 0-100 mm | PK060EHS | $1,087.17 | ✓ In Stock | ||
| 8 t — 0-100 mm | PK080EHS | $1,255.41 | ✓ In Stock | ||
| 10 t — 0-100 mm | PK100EHS | $1,351.72 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
