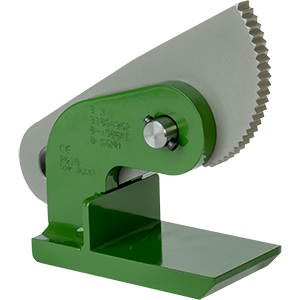

The Green Pin P-6635 H-Type Horizontal Plate Lifting Clamp is designed for gripping and transporting steel plates lying flat. The horizontal jaw distributes clamping force evenly for stable, level lifts.
Key Features
- H-type design for horizontal plate lifting
- Cam-actuated jaw with automatic locking
- Hardened jaw pads prevent slippage
- Spring-loaded safety lock
- Individually proof tested with certificate
Common Applications
- Horizontal steel plate transport
- Loading/unloading plate stock
- Feeding plates to cutting and forming equipment
Why Green Pin?
Green Pin horizontal clamps are trusted in high-volume steel handling. Individually proof tested by Van Beest for reliable performance.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

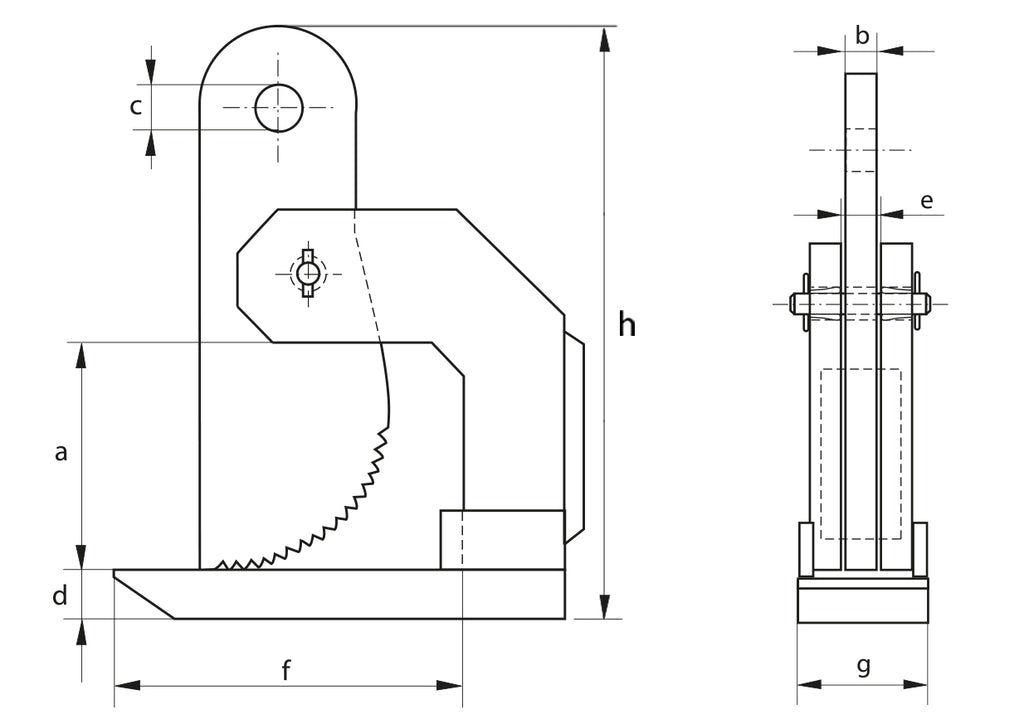

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 15.47 | 0 - 2 3/80 - 60 | 5/816 | 1 3/1630 | 19/3215 | 4 21/32118 | 7 3/32180 | 3 17/3290 | 11 5/16287 | PK020EH | |
| 3 | 17.68.00 | 0 - 2 3/80 - 60 | 5/816 | 1 3/1630 | 25/3220 | 4 21/32118 | 7 3/32180 | 3 17/3290 | 11 15/32291 | PK030EH | |
| 4 | 28.713.0 | 0 - 2 3/80 - 60 | 25/3220 | 1 3/1630 | 31/3225 | 5 23/32145 | 8 21/32220 | 4 1/8105 | 11 31/32304 | PK040EH | |
| 6 | 30.914.0 | 0 - 2 3/80 - 60 | 25/3220 | 1 3/1630 | 31/3225 | 5 23/32145 | 8 21/32220 | 4 11/32110 | 12 3/32307 | PK060EH | |
| 8 | 41.919.0 | 0 - 2 3/80 - 60 | 1 3/1630 | 1 3/1630 | 1 3/835 | 5 5/16135 | 8 27/32225 | 4 23/32120 | 13 7/32336 | PK080EH | |
| 10 | 41.919.0 | 0 - 2 3/80 - 60 | 1 3/1630 | 1 3/1630 | 1 3/835 | 5 5/16135 | 8 27/32225 | 4 23/32120 | 13 7/32336 | PK100EH | |
| 15 | 66.230.0 | 0 - 2 3/80 - 60 | 1 3/835 | 1 11/1643 | 1 3/835 | 5 25/32147 | 10 5/16262 | 6 5/16160 | 13 17/32344 | PK150EH | |
| 25 | 72.833 | 0 - 2 3/80 - 60 | 1 3/835 | 1 11/1643 | 1 9/1640 | 5 25/32147 | 10 5/16262 | 6 7/8175 | 13 3/4349 | PK250EH |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 2 t — 0-60 mm | PK020EH | $526.50 | ✓ In Stock | ||
| 3 t — 0-60 mm | PK030EH | $682.00 | ✓ In Stock | ||
| 4 t — 0-60 mm | PK040EH | $827.50 | ✓ In Stock | ||
| 6 t — 0-60 mm | PK060EH | $865.50 | ✓ In Stock | ||
| 8 t — 0-60 mm | PK080EH | $1,035.00 | ✓ In Stock | ||
| 10 t — 0-60 mm | PK100EH | $1,310.00 | ✓ In Stock |
