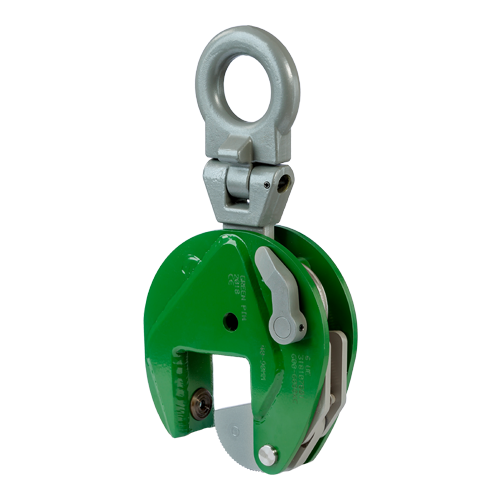

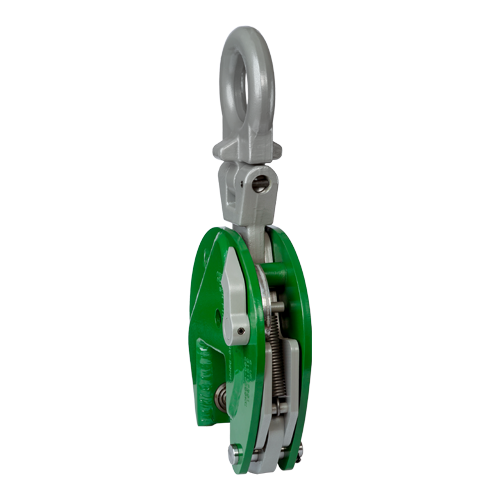

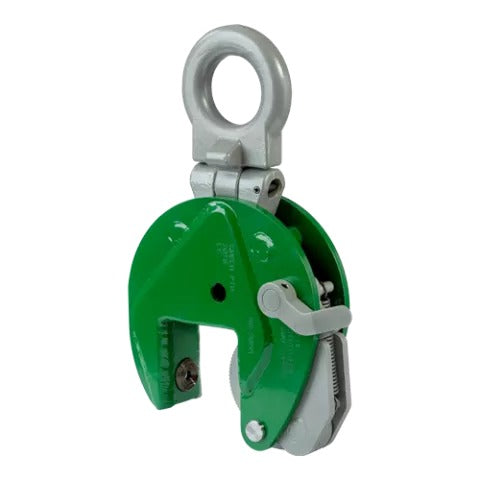

The Green Pin BigMouth P-6626 U-Type Lifting Clamp is a universal plate clamp that handles both horizontal and vertical lifts. Its versatile jaw design grips steel plates securely regardless of orientation, making it the go-to choice when a single clamp needs to cover multiple lifting scenarios.
Key Features
- U-type universal design — works in vertical and horizontal orientations
- Cam-actuated self-locking jaw tightens under load
- Oversized BigMouth jaw capacity for thicker plates
- Hardened jaw pads for positive grip
- Spring-loaded safety lock
- Individually proof tested with certificate
Common Applications
- Steel plate handling in fabrication and manufacturing
- Mixed-orientation lifting where plates may be vertical or horizontal
- Shipbuilding, construction, and structural steel work
- Situations requiring a single versatile plate clamp
Why Green Pin?
The P-6626 eliminates the need for separate vertical and horizontal clamps, reducing inventory and simplifying rigging operations — all backed by Green Pin's world-class proof testing and traceability.

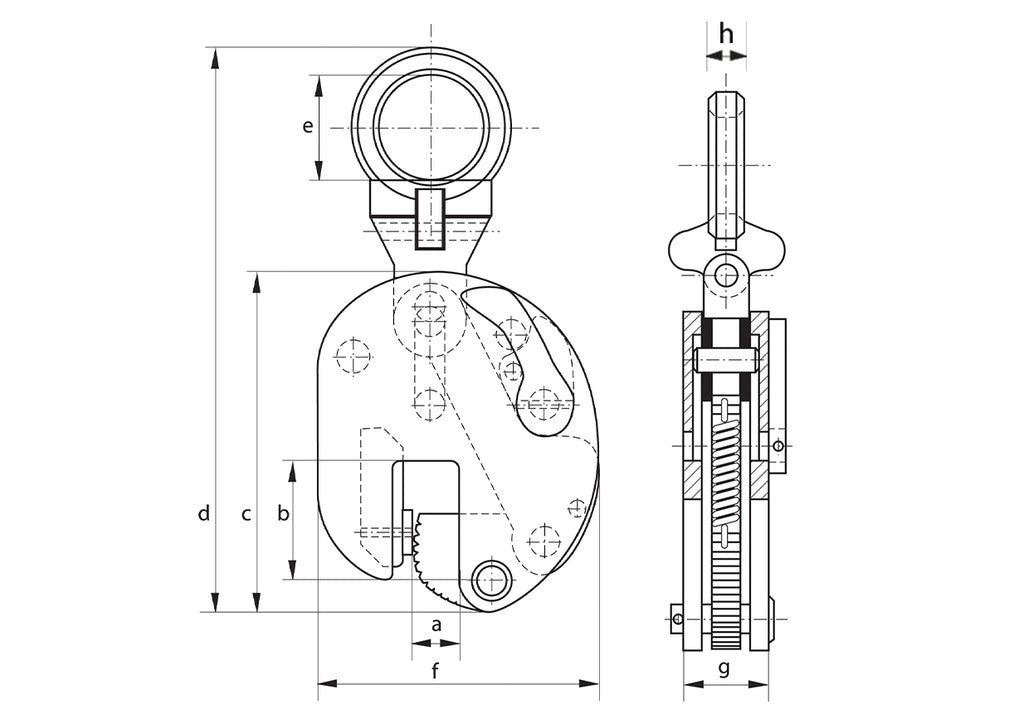

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 52.924.0 | 1 9/16 - 3 17/3240 - 90 | 4 1/2114 | 2 3/470 | 20 19/32523 | 3 1/1678 | 10 13/16275 | 3 1/1678 | 1 1/432 | PK060EUS | |
| 7.5 | 66.230.0 | 1 31/32 - 3 15/1650 - 100 | 4 3/8111 | 2 3/470 | 22 1/16560 | 3 1/1678 | 12 9/32312 | 3 3/886 | 1 1/432 | PK075EUS | |
| 9 | 68.431.0 | 1 31/32 - 3 15/1650 - 100 | 4 3/8111 | 2 3/470 | 22 1/16560 | 3 1/1678 | 12 9/32312 | 3 3/886 | 1 1/432 | PK090EUS | |
| 12 | 99.245.0 | 1 31/32 - 3 15/1650 - 100 | 5 31/32152 | 3 15/16100 | 25 11/32644 | 3 11/3285 | 13 17/32344 | 3 11/1694 | 1 7/848 | PK120EUS |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 3 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 6 t — 40-90 mm | PK060EUS | $2,464.38 | ✓ In Stock | ||
| 7.5 t — 50-100 mm | PK075EUS | $2,730.41 | ✓ In Stock | ||
| 9 t — 50-100 mm | PK090EUS | $2,893.69 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
