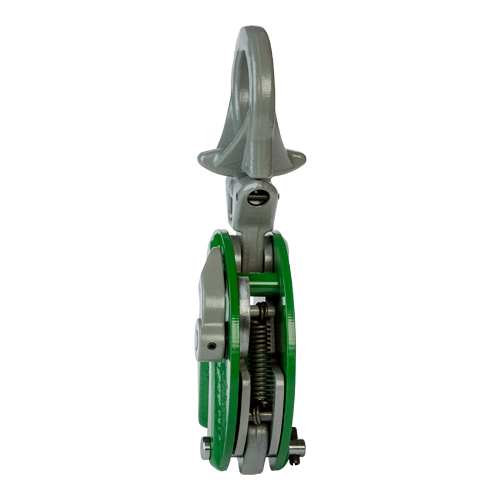

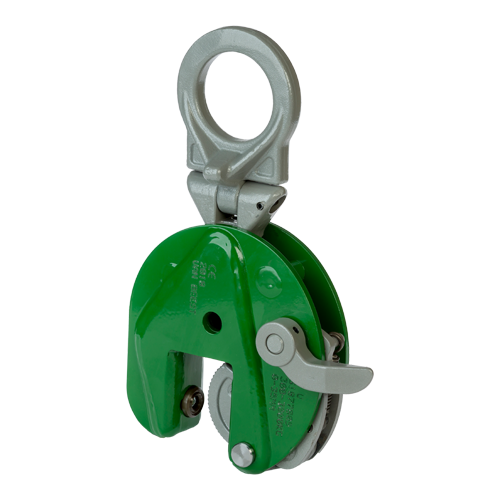

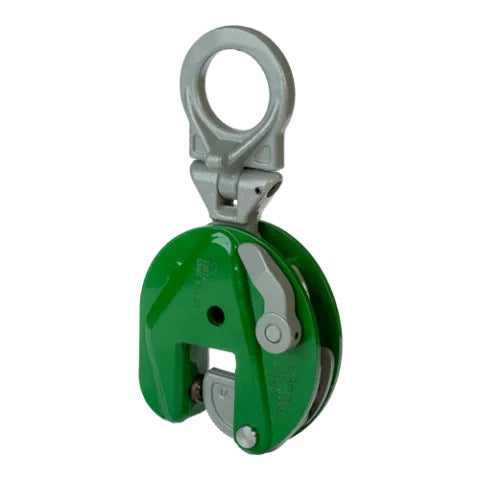

Green Pin P-6625 U-Type Universal Plate Lifting Clamp

The Green Pin P-6625 U-Type Universal Plate Lifting Clamp handles both horizontal and vertical plate lifts with a single clamp. The universal jaw design grips steel plates securely regardless of orientation.

Key Features

• U-type universal design — vertical and horizontal use
• Cam-actuated self-locking jaw
• Hardened jaw pads
• Spring-loaded safety lock
• Individually proof tested with certificate

Common Applications

• Mixed-orientation steel plate handling
• Fabrication shops and steel service centers
• Shipbuilding and construction

Why Green Pin?

One clamp for vertical and horizontal lifts — reduces inventory and simplifies rigging. Individually proof tested by Van Beest.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
