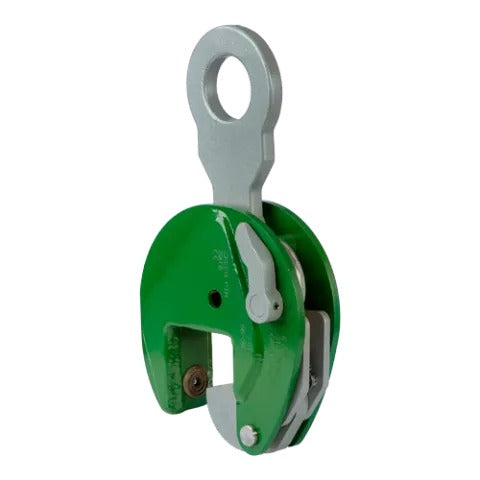

The Green Pin BigMouth P-6616 V-Type Lifting Clamp is a vertical plate lifting clamp with an oversized jaw opening for gripping and lifting steel plates in a vertical orientation. The cam-actuated jaw automatically locks tighter as load increases, providing a safe, hands-free grip without the need for drilling or welding.
Key Features
- V-type design for vertical plate lifting
- Cam-actuated self-locking jaw — grip tightens under load
- Oversized BigMouth jaw opening for thicker plates
- Hardened steel jaw pads for secure grip without plate damage
- Spring-loaded lock prevents accidental opening
- Individually proof tested with certificate
Common Applications
- Vertical lifting of steel plates in fabrication shops
- Steel service center plate handling
- Shipyard and structural steel erection
- Any application requiring vertical plate picks without edge preparation
Why Green Pin?
Green Pin lifting clamps deliver the same quality and traceability that has made Van Beest the global leader in rigging hardware. Every clamp is individually tested and certified for reliable, safe plate handling.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

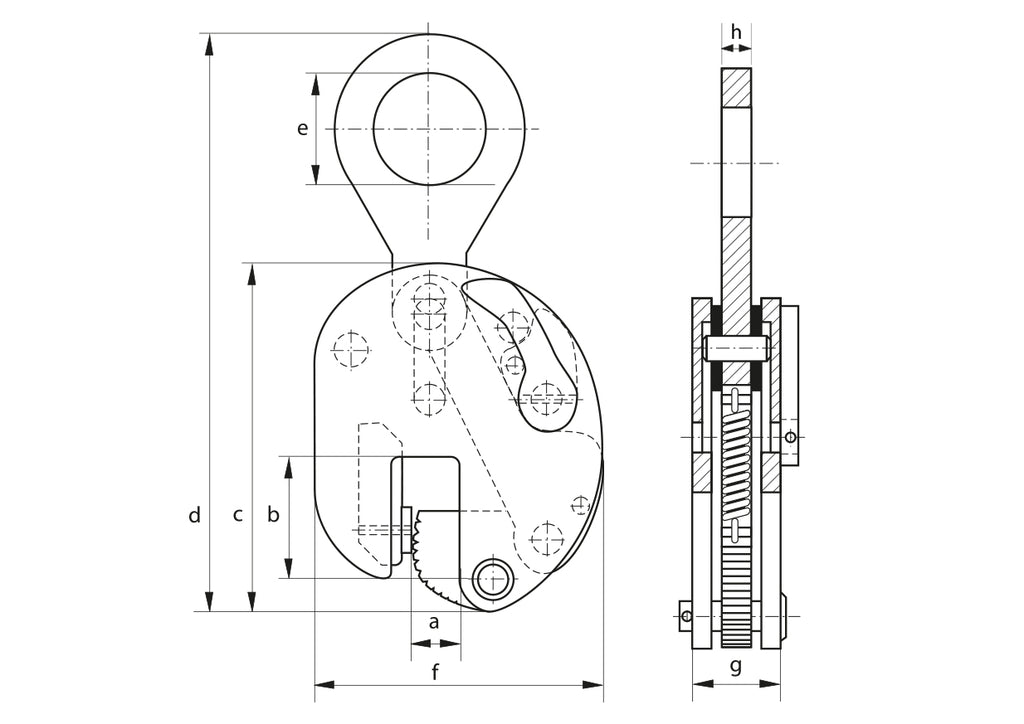

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 46.321.0 | 1 9/16 - 3 17/3240 - 90 | 4 1/2114 | 2 3/470 | 19 1/8486 | 2 15/1675 | 10 13/16275 | 3 1/1678 | 25/3220 | PK060ES | |
| 7.5 | 58.426.5 | 1 31/32 - 3 15/1650 - 100 | 4 3/8111 | 2 3/470 | 20 5/8524 | 2 15/1675 | 12 9/32312 | 3 3/886 | 25/3220 | PK075ES | |
| 9 | 60.627.5 | 1 31/32 - 3 15/1650 - 100 | 4 3/8111 | 2 3/470 | 20 9/16522 | 2 15/1675 | 12 9/32312 | 3 3/886 | 25/3220 | PK090ES | |
| 12 | 90.441.0 | 1 31/32 - 3 15/1650 - 100 | 5 31/32152 | 3 15/16100 | 24 7/32615 | 3 11/3285 | 13 17/32344 | 3 11/1694 | 25/3220 | PK120ES | |
| 15 | 16876.0 | 3 5/32 - 5 29/3280 - 150 | 8 13/16224 | 5 11/32136 | 31 1/2800 | 3 3/886 | 17 23/32450 | 4 3/16106 | 31/3225 | PK150ES | |
| 20 | 353160 | 3 5/32 - 5 29/3280 - 150 | 9 13/16249 | 6 1/32153 | 36 3/8924 | 3 15/16100 | 25 3/16640 | 5 1/2140 | 1 3/1630 | PK200ES |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 6 t — 40-90 mm | PK060ES | $1,995.00 | ✓ In Stock | ||
| 7.5 t — 50-100 mm | PK075ES | $2,045.00 | ✓ In Stock | ||
| 9 t — 50-100 mm | PK090ES | $2,140.00 | ✓ In Stock | ||
| 12 t — 50-100 mm | PK120ES | $3,670.00 | ✓ In Stock | ||
| 15 t — 80-150 mm | PK150ES | $3,775.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
