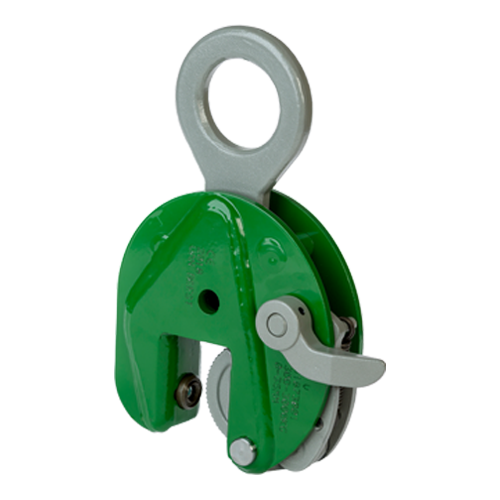

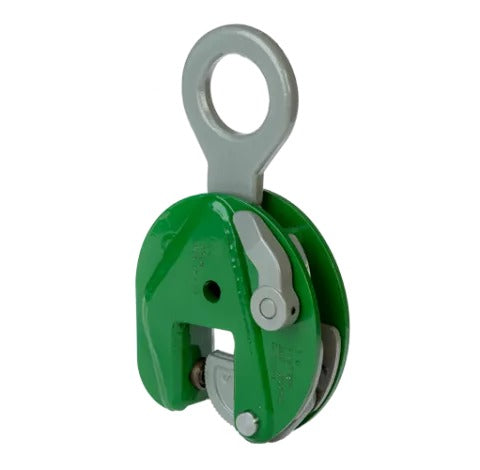

The Green Pin P-6615 V-Type Plate Lifting Clamp is a vertical plate lifting clamp with a cam-actuated jaw that automatically tightens under load. Designed for gripping and lifting steel plates in a vertical orientation without drilling or welding.
Key Features
- V-type design for vertical plate lifting
- Cam-actuated jaw locks tighter under load
- Hardened jaw pads for secure grip
- Spring-loaded safety lock
- Individually proof tested with certificate
Common Applications
- Vertical lifting of steel plates
- Steel service centers and fabrication shops
- Shipyard and structural steel work
Why Green Pin?
Green Pin lifting clamps deliver certified, individually tested plate handling performance. Trusted in steel handling operations worldwide.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

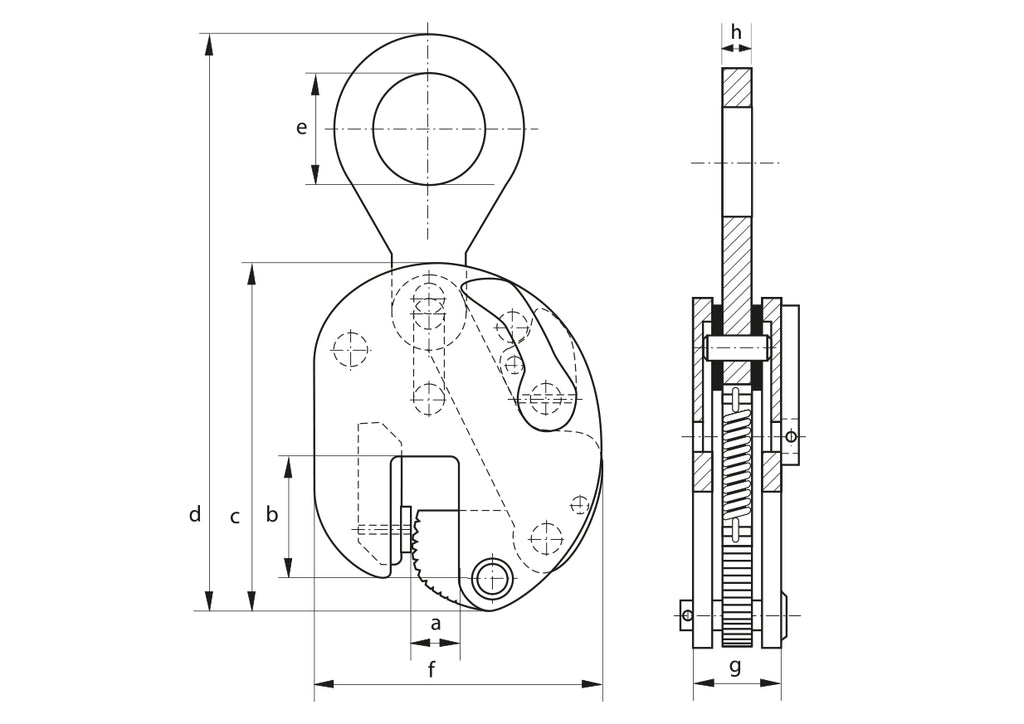

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.75 | 3.751.70 | 0 - 1/20 - 13 | 1 27/3247 | 1 15/3237 | 7 15/16202 | 1 3/1630 | 3 15/16100 | 1 15/3237 | 13/3210 | PK007E | |
| 1 | 7.723.50 | 0 - 31/320 - 25 | 2 7/3256 | 1 15/3237 | 10 11/32263 | 1 25/3245 | 5 9/16141 | 1 27/3247 | 19/3215 | PK010E | |
| 2 | 15.47.00 | 0 - 1 3/80 - 35 | 3 1/1678 | 2 7/3256 | 13 7/32336 | 2 17/3264 | 7 7/32183 | 2 7/3256 | 5/816 | PK020E | |
| 3 | 15.47.00 | 0 - 1 3/80 - 35 | 3 1/1678 | 2 7/3256 | 13 7/32336 | 2 17/3264 | 7 7/32183 | 2 7/3256 | 5/816 | PK030E | |
| 4.5 | 35.316 | 0 - 1 25/320 - 45 | 3 11/3285 | 2 3/860 | 16 23/32425 | 2 3/470 | 8 31/32228 | 3 1/1678 | 25/3220 | PK045E | |
| 6 | 46.321.0 | 0 - 1 31/320 - 50 | 4 1/2114 | 3 7/3282 | 19 5/16490 | 2 15/1675 | 10 3/16259 | 3 1/1678 | 25/3220 | PK060E | |
| 7.5 | 57.326.0 | 0 - 2 5/320 - 55 | 4 3/8111 | 2 3/470 | 20 1/2522 | 2 15/1675 | 10 1/2267 | 3 3/886 | 25/3220 | PK075E | |
| 9 | 59.527.0 | 0 - 2 5/320 - 55 | 4 3/8111 | 2 3/470 | 20 1/2522 | 2 15/1675 | 10 1/2267 | 3 3/886 | 25/3220 | PK090E | |
| 12 | 81.637.0 | 0 - 2 1/160 - 52 | 5 13/16148 | 3 15/16100 | 24 5/16617 | 3 11/3285 | 11 5/8295 | 3 11/1694 | 25/3220 | PK120E | |
| 15 | 15470.0 | 0 - 30 - 76 | 8 7/32209 | 5 11/32136 | 31 7/8810 | 3 3/886 | 14 11/16373 | 4 3/16106 | 31/3225 | PK150E | |
| 20 | 329149 | 0 - 3 5/320 - 80 | 9 27/32250 | 6 1/32153 | 36 23/32933 | 3 15/16100 | 22 5/32563 | 5 1/2140 | 1 3/1630 | PK200E |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 10 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 0.75 t — 0-13 mm | PK007E | $651.50 | ✓ In Stock | ||
| 1 t — 0-25 mm | PK010E | $802.50 | ✓ In Stock | ||
| 2 t — 0-35 mm | PK020E | $905.50 | ✓ In Stock | ||
| 3 t — 0-35 mm | PK030E | $961.50 | ✓ In Stock | ||
| 4.5 t — 0-45 mm | PK045E | $1,380.00 | ✓ In Stock | ||
| 6 t — 0-50 mm | PK060E | $1,560.00 | ✓ In Stock | ||
| 7.5 t — 0-55 mm | PK075E | $2,015.00 | ✓ In Stock | ||
| 9 t — 0-55 mm | PK090E | $2,050.00 | ✓ In Stock | ||
| 12 t — 0-52 mm | PK120E | $3,530.00 | ✓ In Stock | ||
| 15 t — 0-76 mm | PK150E | $3,890.00 | ✓ In Stock |
