The Green Pin G-4164 Fishing Bow Shackle features a square head pin designed for the commercial fishing industry. The square head allows easy tightening and removal with a wrench even in wet, cold conditions, while the bow shape handles the multi-directional loads common in trawling and net operations.
Key Features
- Square head pin for easy wrench tightening in harsh conditions
- Forged alloy steel, quenched and tempered
- Hot-dip galvanized for marine corrosion resistance
- Bow shape for multi-directional loading
- Individually proof tested at 2x WLL with certificate
Common Applications
- Commercial fishing — trawl nets, purse seines, and gear rigging
- Marine deck hardware and mooring connections
- Aquaculture and offshore operations
- Any marine application requiring wrench-tightened pins
Why Green Pin?
Green Pin fishing shackles are engineered specifically for the demands of commercial fishing. Van Beest's marine-grade galvanizing and individual proof testing deliver the reliability fishermen depend on every day at sea.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

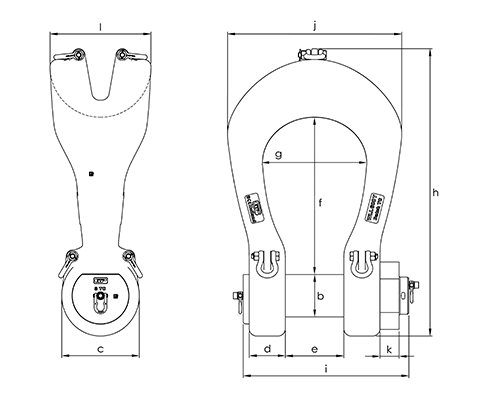

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | i (in)(mm) | j (in)(mm) | k (in)(mm) | l (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 | 21497 | 3 3/1681 | 6 1/2165 | 3 1/289 | 5 9/32134 | 14 3/8365 | 8 21/32220 | 24 7/8632 | 15 1/32382 | 14 9/16370 | 1 13/3236 | 8 1/16205 | ||
| 150 | 295134 | 3 3/495 | 7 5/32182 | 3 17/3290 | 5 21/32144 | 15 11/32390 | 9 27/32250 | 27 11/16703 | 16 1/16408 | 16 17/32420 | 1 21/3242 | 9 3/4248 | ||
| 200 | 432196 | 4 1/8105 | 8 1/32204 | 3 15/16100 | 6 1/16154 | 18 29/32480 | 10 7/8276 | 33838 | 17 9/16446 | 18 21/32474 | 1 27/3247 | 11 13/32290 | ||
| 250 | 602273 | 4 23/32120 | 9 3/8238 | 4 11/32110 | 6 27/32174 | 21 1/4540 | 11 13/16300 | 36 15/16938 | 19 13/16503 | 20 3/16513 | 2 3/860 | 12 3/8314 | ||
| 300 | 818371 | 5 9/32134 | 10 1/4260 | 4 3/4121 | 7 7/16189 | 23 5/8600 | 13 25/32350 | 40 5/81032 | 21 21/32550 | 23 25/32604 | 2 3/860 | 13 19/32345 | ||
| 400 | 1239562 | 6 5/16160 | 12305 | 5 1/2140 | 8 13/16224 | 24 13/32620 | 14 9/16370 | 44 7/321123 | 25635 | 25 23/32653 | 2 3/470 | 15 7/16392 | ||
| 500 | 1726783 | 7 3/32180 | 13 3/8340 | 5 31/32152 | 10 1/32255 | 26 25/32680 | 17 23/32450 | 48 25/321239 | 27 17/32699 | 30 1/32763 | 2 3/470 | 17 5/16440 | ||
| 600 | 22111003 | 7 7/8200 | 14 3/8365 | 6 11/16170 | 11 1/32280 | 29 3/16741 | 19 9/32490 | 53 5/161354 | 30 1/4768 | 32 7/32818 | 2 3/470 | 18 11/16475 | ||
| 700 | 28131276 | 8 15/32215 | 15 15/16405 | 7 15/32190 | 12 19/32320 | 29 9/16751 | 21 1/4540 | 55 23/321415 | 33 7/16849 | 35 5/32893 | 2 3/470 | 20 5/32512 | ||
| 800 | 32721484 | 9 1/16230 | 16 15/16430 | 7 7/8200 | 13 21/32347 | 33 1/2851 | 21 13/16554 | 60 29/321547 | 35 19/32904 | 36 3/32917 | 2 3/470 | 21 3/32536 | ||
| 900 | 39861808 | 10 1/32255 | 18 3/4476 | 8 15/32215 | 14 11/16373 | 33 1/2851 | 22 27/32580 | 62 15/161599 | 37 29/32963 | 38 9/32972 | 2 3/470 | 22 1/16560 | ||
| 1000 | 47002132 | 10 5/8270 | 19 11/16500 | 9 1/8232 | 15 15/16405 | 33 1/2851 | 24 3/16614 | 64 11/161643 | 40 9/161030 | 40 1/41022 | 2 3/470 | 23 7/32590 | ||
| 1250 | 63742891 | 11 13/16300 | 22 7/16570 | 9 21/32245 | 17 5/32436 | 36 5/8930 | 25 19/32650 | 71 3/81813 | 43 27/321114 | 45 1/321144 | 2 3/470 | 26 3/8670 | ||
| 1550 | 77543517 | 12 19/32320 | 23 7/32590 | 10 5/8270 | 18 15/32469 | 37 13/32950 | 26 25/32680 | 74 13/321890 | 48 1/321220 | 47 5/81210 | 2 3/470 | 27 23/32704 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 8 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 125 t | SLPGP0125 | $7,259.42 | ✓ In Stock | ||
| 200 t | SLPGP0200 | $12,120.38 | ✓ In Stock | ||
| 250 t | SLPGP0250 | $14,567.16 | ✓ In Stock | ||
| 400 t | SLPGP0400 | $29,267.50 | ✓ In Stock | ||
| 500 t | SLPGP0500 | $37,774.04 | ✓ In Stock | ||
| 600 t | SLPGP0600 | $39,652.60 | ✓ In Stock | ||
| 700 t | SLPGP0700 | $45,589.79 | ✓ In Stock | ||
| 800 t | SLPGP0800 | $52,333.45 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
