Green Pin P-6031 Polar Heavy Duty Bow Shackle (Safety Bolt & Nut)
Green Pin P-6031 Polar Heavy Duty Bow Shackle BN - Dimensional Drawing
Roll over image to zoom in Click on image to zoom
Green Pin P-6031 Polar Heavy Duty Bow Shackle (Safety Bolt & Nut)Green Pin P-6031 Polar Heavy Duty Bow Shackle BN - Dimensional Drawing

Green Pin P-6031 Polar Heavy Duty Bow Shackle (Safety Bolt & Nut)

Green Pin (Van Beest)SKU: HDPOHM0120
Title: 120 Ton WLL
Price:
$7,094.94

Pricing by Quote

Pricing on this product depends on configuration, size, or current availability from the manufacturer. Our team will send you a detailed quote within one business day.

Request a Quote →

Or call (305) 767-3223 · email sales@slingcenter.com

🛠️ Ask our AI rigging specialist (bottom-right) OR email sales@slingcenter.com →

The Green Pin P-6016 Heavy Duty Bow Shackle features an oversized cross section that delivers higher working load limits than standard bow shackles at equivalent sizes. Designed for the heaviest lifts in construction, offshore, and industrial applications where maximum capacity is required from every connection point.

Key Features

  • Heavy-duty cross section for maximum WLL at size
  • Flat nut pin for secure, non-rotating closure
  • Forged alloy steel, quenched and tempered
  • Hot-dip galvanized for corrosion resistance
  • Individually proof tested at 2x WLL with certificate

Common Applications

  • Heavy lift crane operations
  • Offshore platform and subsea rigging
  • Structural steel erection
  • Mining and heavy industrial lifting

Why Green Pin?

Green Pin heavy-duty bow shackles deliver maximum capacity when standard shackles aren't enough. Every unit is individually proof tested by Van Beest with full material traceability.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

📄 Download the manufacturer spec sheet (PDF)

Specifications — Full Dimensions by Size

Working Load Limits below are as certified by the manufacturer at a 5:1 design factor — minimum breaking load = 5 × WLL. Compare like for like: a WLL at 4:1 and a WLL at 6:1 are not equivalent ratings.

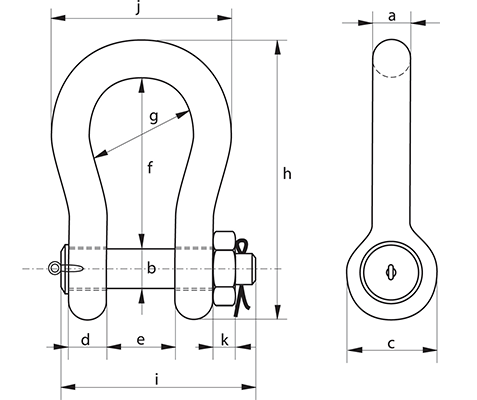

Green Pin P-6031 Polar Heavy Duty Bow Shackle (Safety Bolt & Nut) dimensions
Dimension Legend
a
Bow diameter (body stock)
b
Pin diameter
c
Eye diameter
d
Eye width
e
Inside width
f
Inside length
g
Bow width
h
Overall length
i
Bolt length
j
Outside width
k
Nut thickness
Size (in)(mm) WLL (t)(t)Weight (lb)(kg)a (in)(mm)b (in)(mm)c (in)(mm)d (in)(mm)e (in)(mm)f (in)(mm)g (in)(mm)h (in)(mm)i (in)(mm)j (in)(mm)k (in)(mm)Stock #
12061.991103 3/4953 3/4958 1/322043 3/4955 25/3214715 3/44009 3/823825 11/3264417 27/3245316 27/324281 31/3250HDPOHM0120
15086.311604 1/81054 1/41089 1/42354 1/81056 21/3216916 5/3241010 13/162752768619 17/3249619 3/324851 31/3250HDPOHM0150
200152.452354 23/321205 1/813010 5/82704 23/321207 1/1617920 3/1651311 13/3229032 25/3283322 7/3256420 7/85302 25/3271HDPOHM0200
250188.52855 1/81305 1/214011 3/162845 1/81308 1/1620521 13/165541230535 9/3289624 3/1661422 1/45652 25/3271HDPOHM0250
300224.873685 1/21405 29/3215012 1/83085 1/21408 1/1620524 11/326181230538 27/3298725 11/3264423 1/325853 3/1681HDPOHM0300
400279.255606 11/161706 7/817514 13/163766 15/321649 3/3223126 5/1666812 25/3232543 27/32111427 5/3269026 3/166652 3/470HDPOHM0400
500325.27167 3/321807 9/3218515 21/323986 15/3216410 3/3225628 9/3271813 25/3235046 27/32119028 11/3272027 15/167102 3/470HDPOHM0500
600450.699407 7/82008 1/1620517 15/324447 7/1618911 3/3228228 9/3271814 3/437548 15/16124331 7/881030 1/27752 3/470HDPOHM0600
700532.779808 9/322108 15/3221517 7/84548 1/3220412 1/830828 9/3271815 3/440049 23/32126334 1/487032 9/328202 3/470HDPOHM0700
800558.8111008 9/322108 21/3222018 9/324648 1/3220412 1/830828 9/3271815 3/440050127034 1/487032 9/328202 3/470HDPOHM0800
900643.9512808 21/322209 1/1623019 3/324858 15/3221512 29/3232828 9/3271816 17/3242051 1/32129636 7/3292033 27/328602 3/470HDPOHM0900
1000717.5114609 7/162409 7/1624020 9/325158 15/3221513 3/434928 9/3271816 17/3242052 19/3213363794035 7/169002 3/470HDPOHM1000
1250992.03199010 1/426010 5/827023 1/325859 1/1623014 17/3236930 1/476817 23/3245057 5/16145640 11/32102538 3/169702 3/470HDPOHM1250
15001144.79240011 1/3228011 13/3229024 19/326259 1/1623014 17/3236932 7/3281817 23/3245061 1/4155640 11/32102539 3/410102 3/470HDPOHM1500

Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
