The Green Pin G-4163 Dee Shackle (Safety Bolt & Nut) is a premium dee shackle with safety bolt and nut closure for applications where vibration or dynamic loading could loosen a screw pin. The cotter-pinned safety bolt provides maximum security for permanent and semi-permanent rigging.
Key Features
- Safety bolt and nut with cotter pin — maximum vibration resistance
- Dee shape for inline load alignment
- Forged alloy steel, quenched and tempered
- Hot-dip galvanized for corrosion resistance
- Individually proof tested at 2x WLL with certificate
- EN 13889 Type B compliant
Common Applications
- Permanent rigging installations
- Offshore and marine connections subject to vibration
- Heavy industrial crane rigging
- Critical load path connections
Why Green Pin?
The G-4163 safety bolt dee shackle is the most secure inline shackle connection available. Every unit is individually proof tested by Van Beest with complete material traceability.

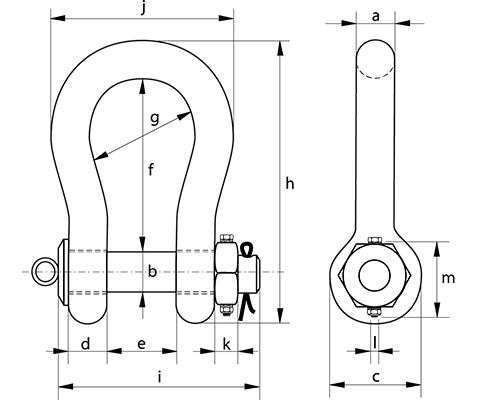

Dimension diagram applies to all sizes.
Dimension Legend
- A Inside width at pin
- B Eye thickness
- C Inside length
- D Pin diameter
- E Inside width top
- F Eye outside ø
- G Outside width top
- H Overall height
- L Pin head length
- M Outside width pin
- P Pin protrusion
Material & Product Specifications
| Material | Forged alloy steel |
| Safety Factor | MBL = 6 × WLL |
| Finish | Painted |
| Temperature Range | -20°C to +200°C |
| Certification | EN 13889 / ABS · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | 120 tonnes |
| Article | WLL (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | L (mm) | M (mm) | P (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDGPHM0120FN | 120 | 28,12 | 95 | 95 | 204 | 95 | 147 | 400 | 238 | 644 | 453 | 428 | 50 | M12 | 150 | 75 | 110 |
| HDGPHM0150FN | 150 | 39,15 | 105 | 108 | 235 | 105 | 169 | 410 | 275 | 686 | 496 | 485 | 50 | M12 | 160 | 75 | 155 |
| Article | WLL (t) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | L (in) | M (in) | P (in) | Weight (lb) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDGPHM0120FN | 120 | 61,99 | 3 3/4 | 3 3/4 | 8 1/32 | 3 3/4 | 5 25/32 | 15 3/4 | 9 3/8 | 25 11/32 | 17 27/32 | 16 27/32 | 1 31/32 | M12 | 5 29/32 | 75 | 243 |
| HDGPHM0150FN | 150 | 86,31 | 4 1/8 | 4 1/4 | 9 1/4 | 4 1/8 | 6 21/32 | 16 5/32 | 10 13/16 | 27 | 19 17/32 | 19 3/32 | 1 31/32 | M12 | 6 5/16 | 75 | 342 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
