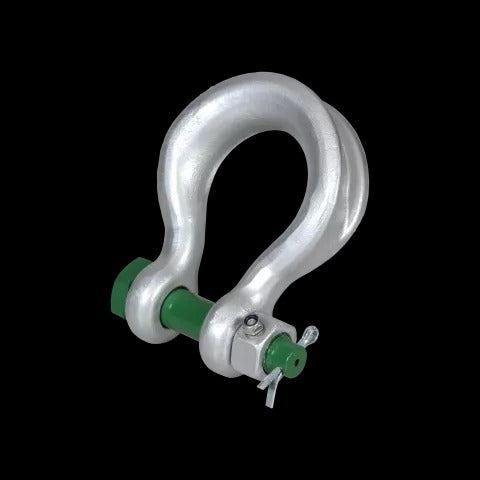

The Green Pin P-6013 Sling Shackle is specifically designed for synthetic sling connections, featuring a wider pin and body geometry that prevents sling bunching and distributes load evenly across the sling surface. The flat nut pin provides secure, non-rotating closure.
Key Features
- Sling-optimized geometry for even load distribution
- Wider pin reduces sling bunching and edge stress
- Flat nut pin for secure closure
- Forged alloy steel, hot-dip galvanized
- Individually proof tested at 2x WLL with certificate
Common Applications
- Synthetic web sling and roundsling connections
- Multi-leg synthetic sling assemblies
- General purpose lifting with synthetic slings
- Applications requiring sling-friendly hardware
Why Green Pin?
Green Pin sling shackles are purpose-engineered to protect synthetic slings from the edge damage and bunching that standard shackles can cause. Individually proof tested by Van Beest for guaranteed performance.
Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | J (in)(mm) | K (in)(mm) | L (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 2.180.99 | 7/822 | 7/822 | 1 13/1646 | 3/419 | 1 9/3232 | 3 25/3296 | 2 17/3264 | 6153 | 4 17/32115 | 4 5/16110 | 3/419 | 1 5/841 | SLGPF0007FN | |
| 12.5 | 41.82 | 1 1/828 | 1 1/828 | 2 3/861 | 125 | 1 3/444 | 4 23/32120 | 3 1/482 | 7 3/4197 | 5 15/16151 | 5 3/4146 | 15/1624 | 2 1/854 | SLGPF0012FN | |
| 18 | 5.182.35 | 1 3/835 | 1 3/835 | 2 23/3269 | 1 3/1630 | 2 1/854 | 5 13/16148 | 4 1/32102 | 9 13/32239 | 6 23/32171 | 7 3/32180 | 1 5/3229 | 2 17/3264 | SLGPF0018FN | |
| 30 | 9.334.23 | 1 9/1640 | 1 21/3242 | 3 17/3290 | 1 3/835 | 2 23/3269 | 6 1/2165 | 4 31/32126 | 10 31/32279 | 8 5/32207 | 7 7/8200 | 1 11/3234 | 3 1/879 | SLGPF0030FN | |
| 40 | 9.524.32 | 2 5/3255 | 251 | 4 9/32109 | 1 25/3245 | 3 5/1684 | 7 27/32199 | 5 1/2140 | 13 1/32331 | 9 29/32252 | 9 1/4235 | 1 1/238 | 3 13/1697 | SLGPF0040FN | |
| 55 | 10.144.6 | 2 3/860 | 2 1/457 | 4 17/32115 | 2 5/3255 | 3 17/3290 | 9 7/16240 | 6 5/16160 | 15 5/16389 | 11 9/16294 | 10 5/8270 | 1 25/3245 | 3 15/16100 | SLGPF0055FN | |
| 75 | 25.1111.39 | 2 11/1668 | 2 3/470 | 4 31/32126 | 2 1/854 | 4 11/32110 | 11 13/32290 | 7 9/32185 | 18 5/8473 | 12 15/32317 | 12 15/32317 | 1 9/1640 | 4 23/32120 | SLGPF0075FN | |
| 125 | 40.9818.59 | 3 11/3285 | 3 5/3280 | 6 5/32156 | 3 11/3285 | 5 13/32137 | 14 13/32366 | 8 21/32220 | 22 15/16583 | 16 1/4413 | 15 11/32390 | 1 9/1640 | 5 29/32150 | SLGPF0125FN | |
| 150 | 60.0827.25 | 3 11/1694 | 3 3/495 | 7 1/8181 | 3 1/289 | 5 25/32147 | 15 13/32391 | 9 31/32253 | 25 1/2648 | 17 17/32445 | 17 11/16449 | 1 31/3250 | 6 11/16170 | SLGPF0150FN |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 22 mm (7/8") | SLGPF0007FN | $144.26 | ✓ In Stock | ||
| 29 mm (1-1/8") | SLGPF0012FN | $240.34 | ✓ In Stock | ||
| 35 mm (1-3/8") | SLGPF0018FN | $549.43 | ✓ In Stock | ||
| 40 mm (1-1/2") | SLGPF0030FN | $777.17 | ✓ In Stock | ||
| 55 mm (2-1/4") | SLGPF0040FN | $1,320.74 | ✓ In Stock | ||
| 60 mm | SLGPF0055FN | $2,135.66 | ✓ In Stock | ||
| 70 mm (2-3/4") | SLGPF0075FN | $4,544.70 | ✓ In Stock | ||
| 85 mm (3-1/4") | SLGPF0125FN | $7,843.91 | ✓ In Stock | ||
| 94 mm (3-3/4") | SLGPF0150FN | $11,470.89 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
