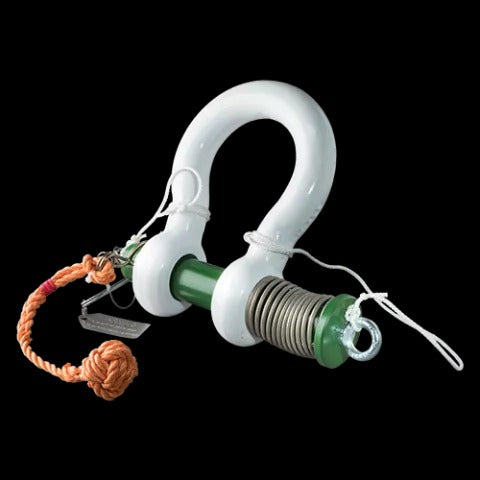

The Green Pin P-5367 Spring Release ROV Shackle features a spring-actuated release mechanism that allows ROV manipulators to disconnect the shackle quickly without manually removing a pin. Designed for operations where fast disconnection is as critical as fast connection.
Key Features
- Spring-actuated release for fast ROV disconnection
- Quick-release reduces total ROV operation time
- Forged alloy steel, hot-dip galvanized
- Individually proof tested with certificate
- Designed for rapid connect-disconnect cycles
Common Applications
- Subsea operations requiring rapid disconnection
- Emergency release applications
- Offshore construction with frequent rigging changes
- ROV-operated subsea tooling connections
Why Green Pin?
The P-5367 spring release is designed for operations where disconnection speed matters as much as connection security. Van Beest's individual proof testing guarantees reliable spring mechanism performance at depth.

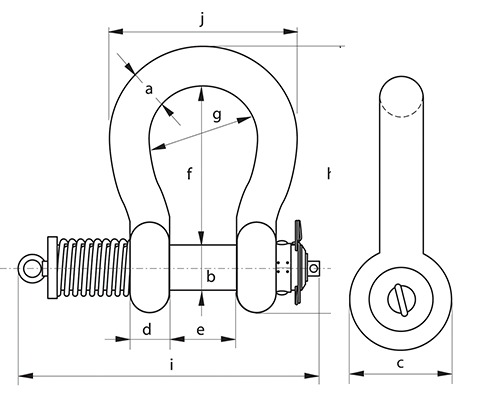

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | J (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 1 1/432 | 1 3/835 | 2 13/1672 | 1 9/3232 | 251 | 4 17/32115 | 3 9/3283 | 7 29/32201 | 11 1/2291 | 5 25/32147 | POGHMB32ROVSRL | ||
| 13.5 | 1 3/835 | 1 1/238 | 3 5/3280 | 1 3/835 | 2 1/457 | 5 1/4133 | 3 5/892 | 8 15/16227 | 11 7/8301 | 6 11/32162 | POGHMB35ROVSRL | ||
| 17 | 1 1/238 | 1 5/842 | 3 1/288 | 1 17/3238 | 2 11/3260 | 5 3/4146 | 3 29/3299 | 9 13/16249 | 14 5/32360 | 6 7/8175 | POGHMB38ROVSRL | ||
| 25 | 1 3/445 | 250 | 4 1/32103 | 1 25/3245 | 2 29/3274 | 7178 | 4 15/16126 | 11 13/16300 | 14 9/16370 | 8 17/32216 | POGHMB45ROVSRL | ||
| 35 | 250 | 2 1/457 | 4 9/16116 | 1 31/3250 | 3 9/3283 | 7 3/4197 | 5 7/16138 | 13 5/32334 | 15 3/4400 | 9 3/8238 | POGHMB50ROVSRL | ||
| 42.5 | 2 1/457 | 2 9/1665 | 5 1/8130 | 2 1/457 | 3 3/495 | 8 3/4222 | 6 9/32160 | 14 13/16377 | 18 1/8460 | 10 25/32274 | POGHMB57ROVSRL | ||
| 55 | 2 1/265 | 2 3/470 | 5 23/32145 | 2 9/1665 | 4 1/8105 | 10 1/4260 | 7 3/32180 | 17 3/32433 | 19 5/16490 | 12 3/16310 | POGHMB65ROVSRL | ||
| 85 | 375 | 3 1/483 | 6 11/32162 | 2 15/1675 | 5127 | 12 15/16329 | 7 1/2190 | 20 3/4527 | 23 1/8587 | 13 3/8340 | POGHMB75ROVSRL | ||
| 120 | 3 3/495 | 3 3/495 | 8 3/16208 | 3 19/3291 | 5 25/32147 | 15 23/32399 | 9 3/8238 | 25 7/16646 | 27 1/32687 | 16 7/8428 | HDPOHM0120ROVSRL | ||
| 150 | 4 1/8105 | 4 1/4108 | 9 3/8238 | 4102 | 6 5/8169 | 16 5/32410 | 10 13/16275 | 27 3/32688 | 28 19/32727 | 19 1/8485 | HDPOHM0150ROVSRL |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 12 t | POGHMB32ROVSRL | $4,405.95 | ✓ In Stock | ||
| 13.5 t | POGHMB35ROVSRL | $4,626.23 | Quote | ||
| 17 t | POGHMB38ROVSRL | $4,758.41 | Quote | ||
| 25 t | POGHMB45ROVSRL | $5,566.12 | Quote | ||
| 35 t | POGHMB50ROVSRL | $8,150.99 | Quote | ||
| 55 t | POGHMB65ROVSRL | $9,355.30 | Quote | ||
| 85 t | POGHMB75ROVSRL | $12,928.26 | Quote | ||
| 120 t | HDPOHM0120ROVSRL | $15,242.31 | Quote | ||
| 150 t | HDPOHM0150ROVSRL | $15,473.30 | Quote |
