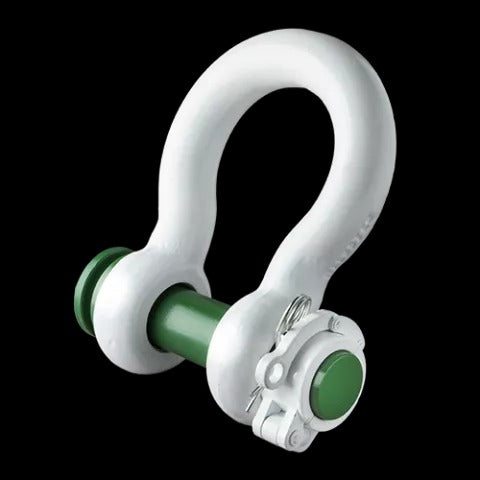

Green Pin P-5365 Locking Clamp ROV Shackle

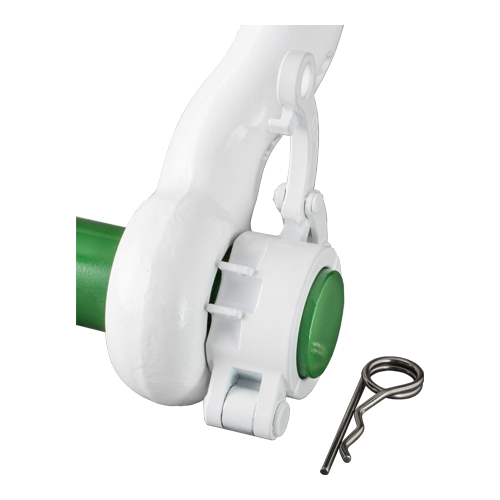

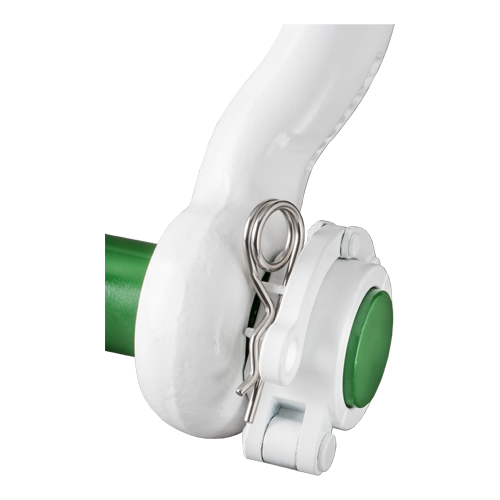

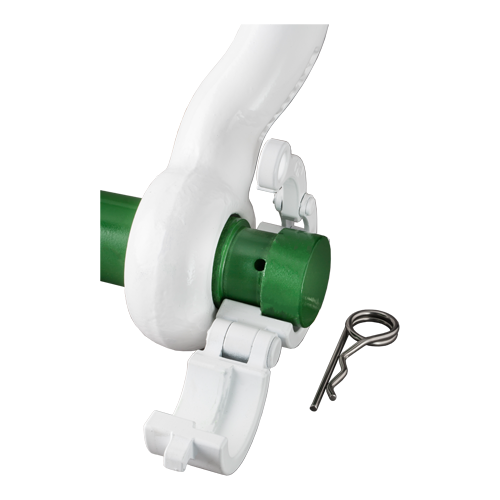

The Green Pin P-5365 Locking Clamp ROV Shackle uses a clamp-style mechanism instead of a traditional pin, allowing ROV manipulators to open, insert the connection, and lock in a single motion. The locking clamp provides positive visual confirmation of secure closure.

Key Features

• Clamp-style mechanism for single-motion ROV operation
• Positive visual lock confirmation
• No separate pin to handle or lose
• Forged alloy steel, hot-dip galvanized
• Individually proof tested with certificate

Common Applications

• Subsea ROV operations requiring visual lock confirmation
• Deepwater installations where pin loss risk must be eliminated
• Offshore pipeline and riser connections
• Any subsea application requiring positive lock verification

Why Green Pin?

The locking clamp eliminates the pin as a separate component — nothing to lose, nothing to thread. Van Beest's individual proof testing and offshore certification make it the trusted choice for subsea operators.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
