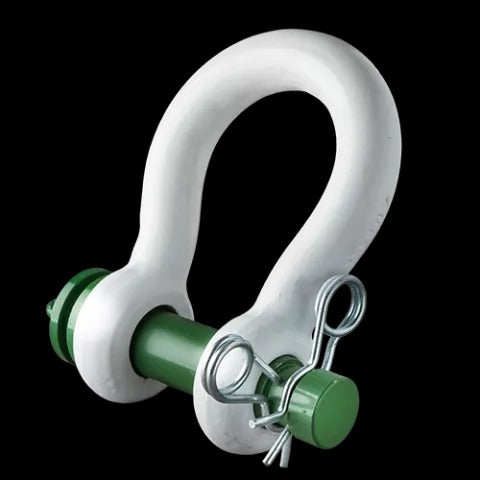

Green Pin P-5363 Spring Pin ROV Shackle
Green Pin P-5363 Spring Pin ROV Shackle dimension diagram
Roll over image to zoom in Click on image to zoom
Green Pin P-5363 Spring Pin ROV ShackleGreen Pin P-5363 Spring Pin ROV Shackle dimension diagram

Green Pin P-5363 Spring Pin ROV Shackle

Green Pin (Van Beest)SKU: POGHMB22ROVRL
WLL: 6.5 t
Price:
$120.00
🛠️ Ask our AI rigging specialist (bottom-right) OR email sales@slingcenter.com →

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Working Load Limits below are as certified by the manufacturer at a 5:1 design factor — minimum breaking load = 5 × WLL.

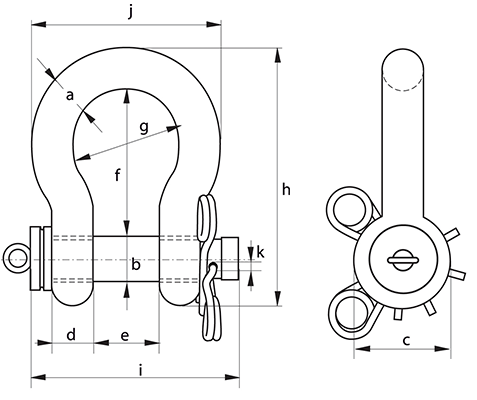

Green Pin P-5363 Spring Pin ROV Shackle dimensions
Dimension Legend
a
Bow diameter (body stock)
b
Pin diameter
c
Eye diameter
d
Eye width
e
Inside width
f
Inside length
g
Bow width
h
Overall length
i
Bolt length
j
Outside width
k
Diameter
WLL (lb)(t)Weight (lb)(kg)a (in)(mm)b (in)(mm)c (in)(mm)d (in)(mm)e (in)(mm)f (in)(mm)g (in)(mm)h (in)(mm)i (in)(mm)j (in)(mm)k (in)(mm)Stock #
14,3306.53.761.707/8221252 1/32527/8221 7/16363 9/32832 9/32585 11/161445 1/813041027/325.5POGHMB22ROVRL
20,9439.57.503.401 1/8281 1/4322 19/32661 1/8281 7/8474 1/41082 15/16757 9/321856 17/321665 5/321311/46.5POGHMB28ROVRL
26,4551210.44.701 1/4321 3/8352 13/16721 9/32322514 17/321153 9/32837 29/322017 1/41845 25/321471/46.5POGHMB32ROVRL
37,4781717.67.991 1/2381 5/8423 1/2881 17/32382 11/32605 3/41463 29/32999 13/162497 15/162026 7/81751/46.5POGHMB38ROVRL
55,1152530.013.61 3/4452504 1/321031 25/32452 29/327471784 15/1612611 13/163009 19/322438 17/3221611/328.5POGHMB45ROVRL
77,1613542.019.12502 1/4574 9/161111 31/32503 9/32837 3/41975 7/1613813 5/3233410 19/322699 3/823811/328.5POGHMB50ROVRL
93,69642.562.528.32 1/4572 9/16655 1/81302 1/4573 3/4958 3/42226 9/3216014 13/1637711 7/830110 25/3227411/328.5POGHMB57ROVRL
121,2545583.8382 1/2652 3/4705 23/321452 9/16654 1/810510 1/42607 3/3218017 3/3243312 15/1632912 3/1631011/328.5POGHMB65ROVRL
187,3928513260.03753 1/4836 11/321622 15/1675512712 15/163297 1/219020 3/452714 3/437513 3/834011/328.5POGHMB75ROVRL

Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

The Green Pin P-5363 Spring Pin ROV Shackle uses a spring-loaded pin mechanism that automatically locks when fully inserted, providing the fastest ROV connection time. The spring pin eliminates the need to thread or secure the pin manually, ideal for high-volume subsea operations.

Key Features

  • Spring-loaded pin for automatic locking on insertion
  • Fastest ROV connection time in the Green Pin range
  • No manual threading or pin securing required
  • Forged alloy steel, hot-dip galvanized
  • Individually proof tested with certificate

Common Applications

  • High-volume subsea ROV operations
  • Time-critical underwater connections
  • Offshore construction and installation
  • Subsea mooring and rigging

Why Green Pin?

The P-5363 spring pin is the fastest ROV shackle connection available — insert and it locks automatically. Van Beest's individual proof testing ensures the spring mechanism is as reliable as the shackle itself.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 9 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Stock Qty Add
6.5 t POGHMB22ROVRL $120.00 ✓ In Stock
9.5 t POGHMB28ROVRL $230.50 ✓ In Stock
12 t POGHMB32ROVRL $308.50 ✓ In Stock
17 t POGHMB38ROVRL $547.00 ✓ In Stock
25 t POGHMB45ROVRL $911.50 ✓ In Stock
35 t POGHMB50ROVRL $1,830.00 ✓ In Stock
42.5 t POGHMB57ROVRL $2,290.00 ✓ In Stock
55 t POGHMB65ROVRL $2,750.00 ✓ In Stock
85 t POGHMB75ROVRL $4,475.00 ✓ In Stock
