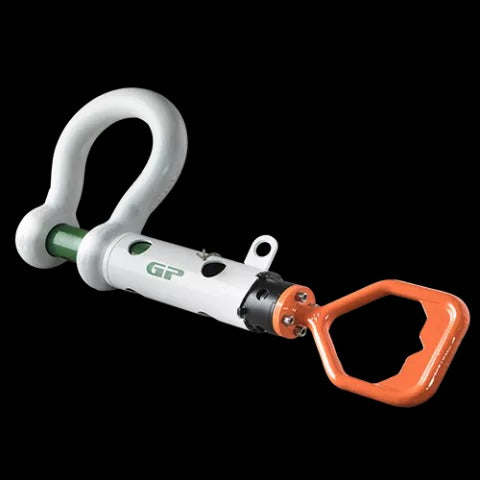

Green Pin P-5362D Guided Pin ROV Shackle (D Handle)

The Green Pin P-5362D Guided Pin ROV Shackle features a guided pin mechanism that channels the pin into correct alignment during ROV insertion, reducing manipulation time and improving connection reliability at depth. The D-handle provides a secure grip for ROV manipulators.

Key Features

• Guided pin mechanism for faster, more reliable ROV connections
• D-handle for ROV manipulator grip
• Self-aligning pin reduces subsea installation time
• Forged alloy steel, hot-dip galvanized
• Individually proof tested with certificate

Common Applications

• Subsea ROV rigging requiring fast, reliable connections
• Offshore pipeline and riser installations
• Deepwater mooring and anchor systems
• Time-critical subsea connection operations

Why Green Pin?

The guided pin design reduces ROV manipulation time and connection failures at depth. Van Beest engineers these shackles in collaboration with subsea operators for real-world ROV performance.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
