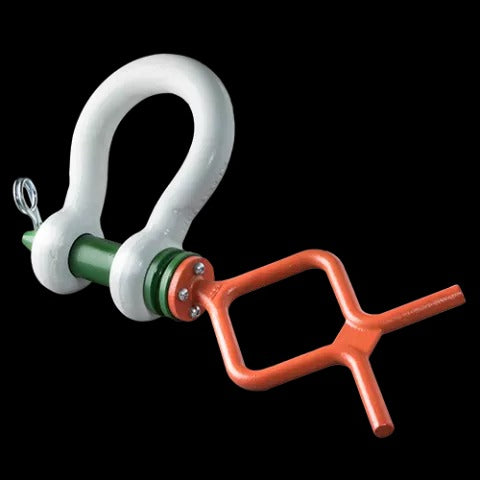

The Green Pin P-5361F Tapered Pin ROV Shackle features a fishtail handle designed for ROV manipulators that work better with a flat, tab-style grip. The tapered pin allows easy underwater alignment and insertion by remotely operated vehicles.
Key Features
- Fishtail handle for flat-grip ROV manipulators
- Tapered pin for easy subsea alignment
- Forged alloy steel, hot-dip galvanized
- Individually proof tested with certificate
- Designed for subsea ROV operations
Common Applications
- Subsea ROV connections with flat-grip manipulators
- Offshore pipeline installations
- Deepwater mooring operations
- Any subsea operation requiring fishtail-grip ROV access
Why Green Pin?
Green Pin offers both D-handle and fishtail handle ROV shackles to match different ROV manipulator types. Every shackle is individually proof tested by Van Beest with full material traceability for offshore certification.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

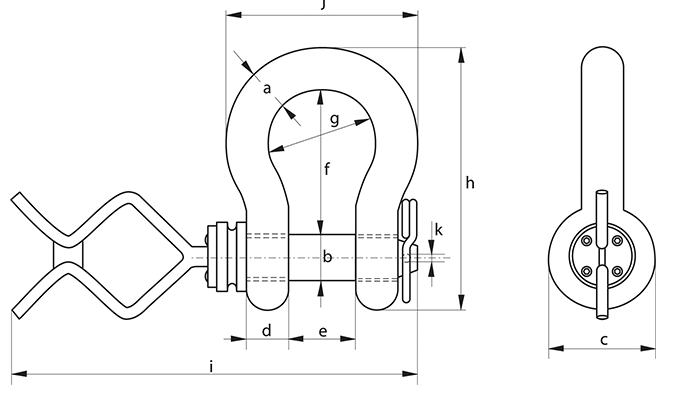

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | i (in)(mm) | j (in)(mm) | k (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.5 | 8.954.06 | 7/822 | 125 | 2 1/1652 | 7/822 | 1 13/3236 | 3 9/3283 | 2 9/3258 | 5 21/32144 | 16 1/2419 | 4 1/32102 | 1/83.5 | POGHBB22ROVRLTF | |
| 9.5 | 8.073.66 | 1 1/828 | 1 1/432 | 2 19/3266 | 1 3/3228 | 1 27/3247 | 4 1/4108 | 2 15/1675 | 7 9/32185 | 17 29/32455 | 5 5/32131 | 7/325.5 | POGHBB28ROVRLTF | |
| 12 | 10.824.91 | 1 1/432 | 1 3/835 | 2 27/3272 | 1 1/432 | 251 | 4 17/32115 | 3 9/3283 | 7 29/32201 | 18 3/8467 | 5 25/32147 | 1/46.5 | POGHBB32ROVRLTF | |
| 17 | 18.068.19 | 1 1/238 | 1 5/842 | 3 15/3288 | 1 1/238 | 2 3/860 | 5 3/4146 | 3 29/3299 | 9 13/16249 | 19 11/32491 | 6 7/8175 | 11/328.5 | POGHBB38ROVRLTF | |
| 25 | 31.314.2 | 1 3/445 | 250 | 4 1/16103 | 1 25/3245 | 2 29/3274 | 7178 | 4 31/32126 | 11 13/16300 | 21 3/16538 | 8 1/2216 | 11/328.5 | POGHBB45ROVRLTF | |
| 35 | 43.919.9 | 250 | 2 1/457 | 4 3/8111 | 1 31/3250 | 3 9/3283 | 7 3/4197 | 5 7/16138 | 13 1/32331 | 21 21/32558 | 9 3/8238 | 11/328.5 | POGHBB50ROVRLTF | |
| 42.5 | 6228.3 | 2 1/457 | 2 9/1665 | 5 1/8130 | 2 1/457 | 3 3/495 | 8 3/4222 | 6 5/16160 | 14 27/32377 | 23 7/32590 | 10 25/32274 | 9/327.5 | POGHBB57ROVRLTF | |
| 55 | 8739.6 | 2 1/265 | 2 3/470 | 5 23/32145 | 2 9/1665 | 4 1/8105 | 10 1/4260 | 7 3/32180 | 17 1/16433 | 24 3/8619 | 12 7/32310 | 9/327.5 | POGHBB65ROVRLTF |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 7 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 6.5 t | POGHBB22ROVRLTF | $544.00 | ✓ In Stock | ||
| 9.5 t | POGHBB28ROVRLTF | $598.00 | ✓ In Stock | ||
| 12 t | POGHBB32ROVRLTF | $714.00 | ✓ In Stock | ||
| 17 t | POGHBB38ROVRLTF | $981.00 | ✓ In Stock | ||
| 25 t | POGHBB45ROVRLTF | $1,280.00 | ✓ In Stock | ||
| 35 t | POGHBB50ROVRLTF | $1,750.00 | ✓ In Stock | ||
| 55 t | POGHBB65ROVRLTF | $3,680.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
