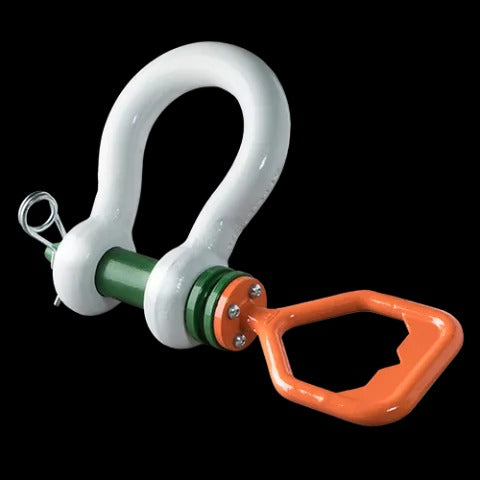

The Green Pin P-5361D Tapered Pin ROV Shackle is designed for subsea operations using remotely operated vehicles (ROVs). The D-handle and tapered pin allow ROV manipulators to grip and operate the shackle pin underwater without diver intervention.
Key Features
- D-handle on pin for ROV manipulator grip
- Tapered pin for easy alignment and insertion by ROV
- Forged alloy steel for subsea environments
- Hot-dip galvanized for corrosion resistance
- Individually proof tested with certificate
- Designed for remote subsea operations
Common Applications
- Subsea ROV rigging and connection operations
- Offshore pipeline and riser installations
- Deepwater mooring and anchor handling
- Any underwater connection requiring ROV manipulation
Why Green Pin?
Green Pin ROV shackles are engineered in collaboration with subsea operators to ensure ROV manipulators can grip, position, and secure the pin reliably at depth. Van Beest's individual proof testing provides the quality assurance offshore operators demand.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

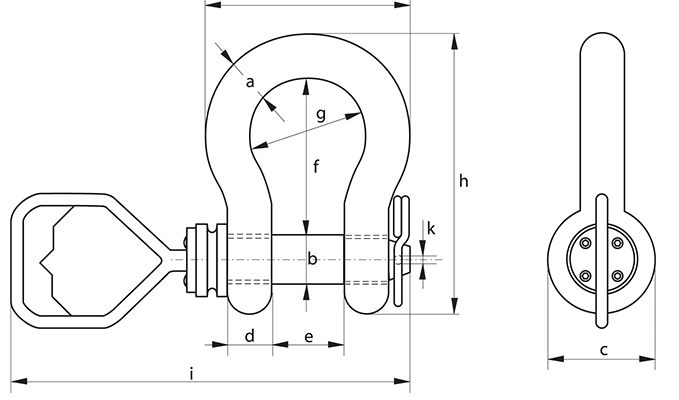

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | i (in)(mm) | j (in)(mm) | k (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.5 | 8.363.79 | 7/822 | 125 | 2 1/1652 | 7/822 | 1 13/3236 | 3 9/3283 | 2 9/3258 | 5 21/32144 | 13 19/32345 | 4 1/32102 | 1/83.5 | POGHBB22ROVRLTD | |
| 9.5 | 11.865.38 | 1 1/828 | 1 1/432 | 2 5/867 | 1 3/3228 | 1 27/3247 | 4 1/4108 | 2 15/1675 | 7 9/32185 | 15381 | 5 5/32131 | 7/325.5 | POGHBB28ROVRLTD | |
| 12 | 14.336.5 | 1 1/432 | 1 3/835 | 2 27/3272 | 1 1/432 | 251 | 4 17/32115 | 3 9/3283 | 7 29/32201 | 15 15/32393 | 5 25/32147 | 1/46.5 | POGHBB32ROVRLTD | |
| 17 | 18.068.19 | 1 1/238 | 1 5/842 | 3 15/3288 | 1 1/238 | 2 3/860 | 5 3/4146 | 3 29/3299 | 9 13/16249 | 16 13/32417 | 6 7/8175 | 11/328.5 | POGHBB38ROVRLTD | |
| 25 | 31.314.2 | 1 3/445 | 250 | 4 1/16103 | 1 25/3245 | 2 29/3274 | 7178 | 4 31/32126 | 11 13/16300 | 18 9/32464 | 8 1/2216 | 11/328.5 | POGHBB45ROVRLTD | |
| 35 | 43.919.9 | 250 | 2 1/457 | 4 3/8111 | 1 31/3250 | 3 9/3283 | 7 3/4197 | 5 7/16138 | 13 1/32331 | 19 1/16484 | 9 3/8238 | 11/328.5 | POGHBB50ROVRLTD | |
| 42.5 | 6228.3 | 2 1/457 | 2 9/1665 | 5 1/8130 | 2 1/457 | 3 3/495 | 8 3/4222 | 6 5/16160 | 14 27/32377 | 20 5/16516 | 10 25/32274 | 9/327.5 | POGHBB57ROVRLTD | |
| 55 | 8739.6 | 2 1/265 | 2 3/470 | 5 23/32145 | 2 9/1665 | 4 1/8105 | 10 1/4260 | 7 3/32180 | 17 1/16433 | 21 15/32545 | 12 7/32310 | 9/327.5 | POGHBB65ROVRLTD |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
