Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.
Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.

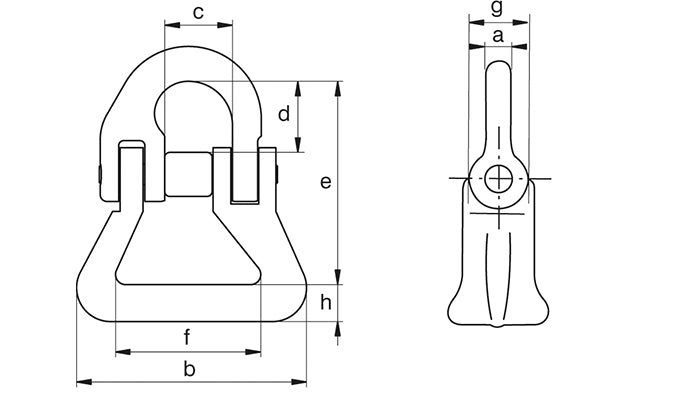

| WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | Chain dia (in)(mm) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4,4092 | 3,5271.6 | 0.680.31 | 1/4 - 5/167 - 8 | 11/329 | 2 19/3266 | 3/419 | 13/1621 | 2 3/860 | 1 5/841 | 1/213 | 9/1614 | GPMJS7/8 |
| 7,0543.2 | 5,6432.56 | 1.130.51 | 3/810 | 13/3210 | 2 15/1675 | 29/3223 | 15/1624 | 2 15/1675 | 1 13/1646 | 23/3218 | 19/3215 | GPMJS10 |
| 11,9045.4 | 9,5234.32 | 2.231.01 | 1/213 | 9/1614 | 3 7/1687 | 1 3/3228 | 1 1/432 | 3 17/3290 | 2 1/1652 | 15/1624 | 3/419 | GPMJS13 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

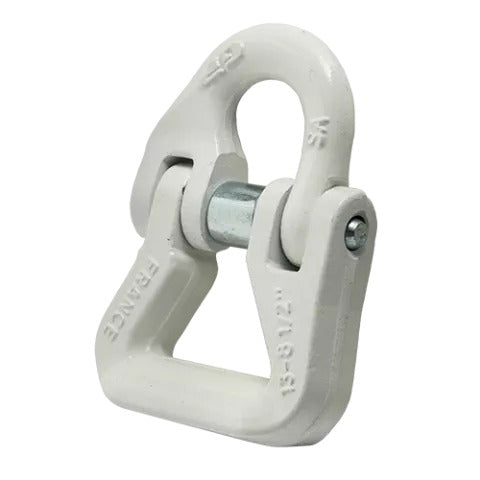

The Green Pin MJS Round Web Sling Connecting Link is a mechanical connecting link specifically designed for roundsling connections. The link geometry accommodates the round cross-section of roundslings, providing a secure connection point without the bunching and chafing that standard links cause on round slings.
Key Features
- Geometry optimized for roundsling connections
- Mechanical (bolted) assembly
- Reduces sling chafing and bunching
- Individually proof tested with certificate
- Compatible with standard roundsling diameters
Common Applications
- Roundsling-to-chain connections
- Roundsling assemblies requiring intermediate links
- Sling system modifications in the field
- Mixed-media sling systems
Why Green Pin?
The MJS is purpose-built for roundslings — no more forcing round slings through hardware designed for flat slings. Van Beest's individual proof testing ensures reliable capacity at every connection.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 3 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 10 mm (3/8") | GPMJS10 | $31.30 | ✓ In Stock | ||
| 13 mm (1/2") | GPMJS13 | $60.75 | ✓ In Stock | ||
| 7/8 mm | GPMJS7/8 | $19.90 | ✓ In Stock |
