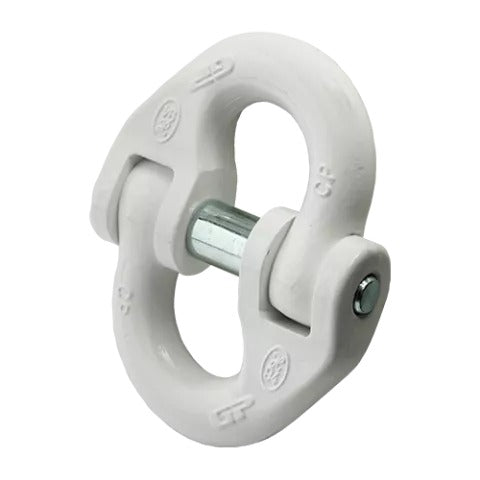

The Green Pin MJ Connecting Link Grade 8 is a mechanical connecting link used to join chain components without welding. The link splits apart for installation around a chain link, then bolts together securely. Ideal for field repairs and modifications to Grade 8 chain sling assemblies.
Key Features
- Mechanical (bolted) assembly — no welding required
- Grade 8 alloy steel for matched chain system capacity
- Split design installs around existing chain links
- EN 1677-1 compliant
- Individually proof tested with certificate
Common Applications
- Field repair of chain slings without welding
- Connecting chain components in the field
- Adjusting chain sling configurations
- Grade 8 chain system modifications
Why Green Pin?
Green Pin mechanical connecting links enable field chain modifications without compromising system capacity. Individually proof tested by Van Beest for reliable performance in Grade 8 chain systems.

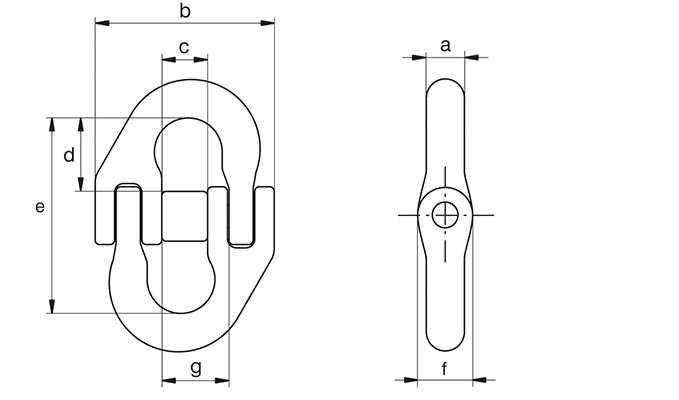

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.12 | 0.200.09 | 5/168 | 1 21/3242 | 7/1611 | 25/3220 | 2 2/1652 | 7/1611 | 19/3215 | GPMJ6 | |
| 2 | 0.330.15 | 11/329 | 2 3/3253 | 9/1614 | 25/3220 | 2 5/3255 | 1/213 | 3/419 | GPMJ7/8 | |
| 3.2 | 0.620.28 | 13/3210 | 2 19/3266 | 23/3218 | 29/3223 | 2 17/3264 | 23/3218 | 29/3223 | GPMJ10 | |
| 5.4 | 1.400.64 | 9/1614 | 3 9/3283 | 13/1621 | 1 1/432 | 3 11/3285 | 15/1624 | 1 3/3228 | GPMJ13 | |
| 8.2 | 2.561.16 | 21/3217 | 4 1/16103 | 31/3225 | 1 9/1640 | 4 1/8105 | 1 3/3228 | 1 11/3234 | GPMJ16 | |
| 12.8 | 4.311.95 | 13/1621 | 4 23/32120 | 1 5/1633 | 1 31/3250 | 5 3/32129 | 1 5/1633 | 1 21/3242 | GPMJ18/20 | |
| 15.5 | 6.492.94 | 29/3223 | 5 5/8143 | 1 9/1640 | 2 5/3255 | 5 1/2140 | 1 15/3237 | 251 | GPMJ22 | |
| 21.6 | 9.094.12 | 1 1/3226 | 6 5/16169 | 1 25/3245 | 2 3/860 | 6 1/32153 | 1 13/1646 | 2 1/457 | GPMJ26 | |
| 32.8 | 18.38.30 | 1 17/3239 | 7 3/4197 | 2 2/1652 | 2 11/1668 | 6 27/32174 | 2 7/3256 | 2 5/867 | GPMJ32 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 10 mm (3/8") | GPMJ10 | $20.28 | ✓ In Stock | ||
| 13 mm (1/2") | GPMJ13 | $33.77 | ✓ In Stock | ||
| 16 mm (5/8") | GPMJ16 | $49.47 | ✓ In Stock | ||
| 18/20 mm | GPMJ18/20 | $79.44 | ✓ In Stock | ||
| 22 mm (7/8") | GPMJ22 | $128.77 | ✓ In Stock | ||
| 26 mm (1") | GPMJ26 | $190.87 | ✓ In Stock | ||
| 32 mm (1-1/4") | GPMJ32 | $259.68 | ✓ In Stock | ||
| 6 mm (1/4") | GPMJ6 | $13.40 | ✓ In Stock | ||
| 7/8 mm | GPMJ7/8 | $15.40 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
