Green Pin Lifting Eye UNC (ALUNC)

Green Pin (Van Beest)SKU: GPAL06UNC

Thread Size: 1/4" UNC (0.2 t / 440 lb)Ask for a different size
Price:
Sale price$17.95

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Find my size:

Type the load and we will highlight every size rated for it. Or click any row to pick that size.

Working Load Limits below are as certified by the manufacturer at a 5:1 design factor — minimum breaking load = 5 × WLL.

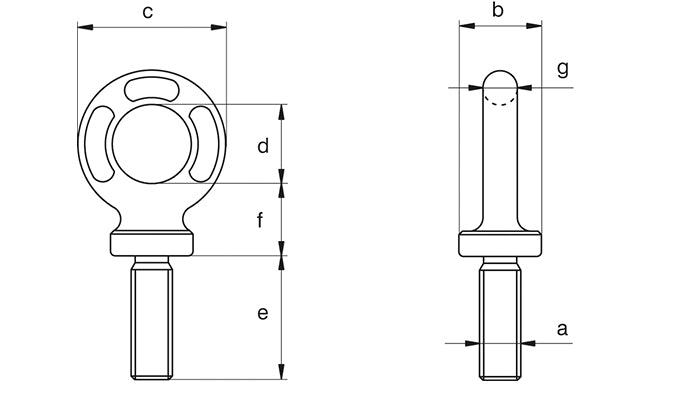

Green Pin Lifting Eye UNC (ALUNC) dimensions
Dimension Legend
a
Thread diameter
b
Base diameter
c
Eye outside diameter
d
Eye inside diameter
e
Length
f
Base thickness
g
Diameter
Stock #SizeWLL (lb)(t)Weight (lb)(kg)ab (in)(mm)c (in)(mm)d (in)(mm)e (in)(mm)f (in)(mm)g (in)(mm)
GPAL06UNC1/4"4400.20.110.051/4"25/32201 11/323425/322025/322021/32179/327
GPAL10UNC3/8"1,5430.70.170.083/8"25/32201 1/2387/8221 3/16303/4195/168
GPAL12UNC1/2"2,20410.310.141/2"31/32251 27/32471 1/32271 13/323629/322313/3210
GPAL16UNC5/8"3,3061.50.830.385/8"1 13/32362 9/16631 3/8352 3/32531 3/16319/1614
GPAL20UNC3/4"5,5112.51.210.553/4"1 9/16402 7/8721 17/32402 9/32581 11/32345/816
GPAL22UNC7/8"6,61331.780.817/8"1 21/32423 7/32821 23/32452 17/32641 1/2383/419
GPAL24UNC1"8,81842.511.141"2 5/32553 3/4952 1/8553 5/16841 9/164025/3220
GPAL27UNC1 1/8"11,02352.671.211 1/8"2 5/32553 3/4952 1/8553 5/16841 9/164025/3220
GPAL30UNC1 1/4"13,22764.201.901 1/4"2 3/8604 1/41082 5/16603 29/32991 15/165115/1624
GPAL36UNC1 1/2"17,63685.562.521 1/2"2 9/16654 21/321182 5/8684 19/321171 25/324831/3225
GPAL42UNC1 3/4"22,046109.394.261 3/4"2 3/4705 19/321423 5/32805 5/161352 13/32611 7/3231
GPAL45UNC2"33,0691510.34.662"2 3/4705 19/321423 5/32805 5/161352 13/32611 7/3231
GPAL56UNC2 1/2"55,1152521.19.552 1/2"3 3/4957 1/81813 13/16975 29/321502 23/32691 21/3242

Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size. A column shown without a unit carries a designation rather than a measurement — a thread callout or a part type — so it reads the same in both views.

The Green Pin Lifting Eye UNC (ALUNC) is a rotating hoist ring with UNC (Unified National Coarse) thread for North American compatibility. The 360-degree swivel and 180-degree pivot ensure the load aligns naturally with the pull direction, eliminating bolt side loading.

Key Features

  • 360-degree swivel and 180-degree pivot
  • UNC thread pattern for North American standard tapped holes
  • Spring-loaded ring stays upright when unloaded
  • Forged alloy steel construction
  • Individually proof tested with certificate

Common Applications

  • Machinery with UNC tapped lifting holes
  • Manufacturing mold and die handling
  • Equipment lifting in North American facilities
  • Permanent lift points on industrial equipment

Why Green Pin?

The ALUNC provides North American riggers with UNC thread compatibility in a premium rotating hoist ring. Van Beest's individual proof testing ensures every unit meets its rated capacity.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 8 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Weight ▴▾ Stock Qty Add
1/4" UNC (0.2 t / 440 lb) GPAL06UNC $17.95 0.11 lb ✓ In Stock
3/8" UNC (0.7 t / 1,543 lb) GPAL10UNC $18.30 0.17 lb ✓ In Stock
1/2" UNC (1 t / 2,204 lb) GPAL12UNC $22.80 0.31 lb ✓ In Stock
5/8" UNC (1.5 t / 3,306 lb) GPAL16UNC $27.40 0.83 lb ✓ In Stock
3/4" UNC (2.5 t / 5,511 lb) GPAL20UNC $33.45 1.21 lb ✓ In Stock
7/8" UNC (3 t / 6,613 lb) GPAL22UNC $40.85 1.78 lb ✓ In Stock
1" UNC (4 t / 8,818 lb) GPAL24UNC $101.50 2.34 lb ✓ In Stock
1-1/4" UNC (6 t / 13,227 lb) GPAL30UNC $146.50 4.45 lb ✓ In Stock

Weights are approximate shipping weights.
