Green Pin Lifting Eye GR8 (AL)


Thread Size: M6 (0.2 Ton)Ask for a different size
Price:
Sale price$11.70

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Find my size:

Type the load and we will highlight every size rated for it. Or click any row to pick that size.

Working Load Limits below are as certified by the manufacturer at a 5:1 design factor — minimum breaking load = 5 × WLL.

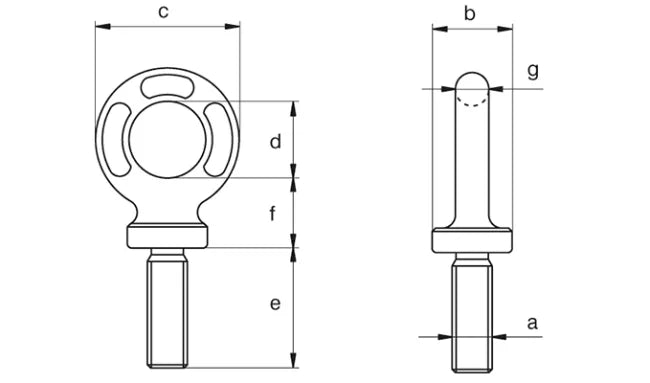

Green Pin Lifting Eye GR8 (AL) dimensions
Dimension Legend
A
Thread size
E
Thread length
Stock #SizeWLL (lb)(t)Weight (lb)(kg)A (in)(mm)B (in)(mm)C (in)(mm)D (in)(mm)E (in)(mm)F (in)(mm)G (in)(mm)
GPAL06M6 (6mm mm)4400.20.110.05M6 X 1.00625/32201 11/323425/322025/322021/32179/327
GPAL08M8 (8mm mm)8810.40.130.06M8 X 1.25825/32201 11/323425/322015/162421/32179/327
GPAL10M10 (10mm mm)1,5430.70.180.08M10 X 1.501025/32201 1/2387/8221 3/16303/4195/168
GPAL12M12 (12mm mm)2,20410.310.14M12 X 1.751231/32251 27/32471 1/32271 13/323629/322313/3210
GPAL14M14 (14mm mm)2,6451.20.490.22M14 X 2.00141 3/16302 7/32561 3/16301 13/323631/32257/1611
GPAL16M16 (16mm mm)3,3061.50.770.35M16 X 2.00161 13/32362 17/32641 13/32361 9/16401 3/16301/213
GPAL18M18 (18mm mm)4,40921.060.48M18 X 2.50181 9/16402 27/32721 9/16401 25/32451 11/32349/1614
GPAL20M20 (20mm mm)5,5112.51.480.67M20 X 2.50201 25/32453 5/32801 25/32451 31/32501 1/23819/3215
GPAL22M22 (22mm mm)6,61331.960.89M22 X 2.50221 31/32503 7/16871 31/32502 5/32551 9/16405/816
GPAL24M24 (24mm mm)8,81842.341.06M24 X 3.00242 3/32523 23/32942 3/32522 5/32551 11/164321/3217
GPAL27M27 (27mm mm)11,02353.441.56M27 X 3.00272 5/16584 7/321072 5/16582 3/8601 29/324825/3220
GPAL30M30 (30mm mm)13,22764.452.02M30 X 3.50302 7/16624 1/21142 7/16622 3/4702 1/16527/822
GPAL33M33 (33mm mm)15,43276.172.80M33 X 3.50332 3/4704 29/321252 3/4702 15/16752 5/165831/3225
GPAL36M36 (36mm mm)17,63688.313.77M36 X 4.00363765 9/321343763 5/16842 7/16621 1/1627
GPAL39M39 (39mm mm)19,84198.313.77M39 X 4.00393765 5/81433763 1/2892 7/16621 1/1627
GPAL42M42 (42mm mm)22,0461011.95.40M42 X 4.50423 11/32855 31/321523 11/32853 3/4952 3/4701 3/1630
GPAL45M45 (45mm mm)33,0691511.95.40M45 X 4.50453 11/32856 5/161603 11/32854 3/321042 3/4701 3/1630
GPAL48M48 (48mm mm)39,6831816.07.26M48 X 5.00483 17/32906 5/81683 17/32904 11/321103 1/16781 3/835
GPAL52M52 (52mm mm)44,0922016.07.26M52 X 5.00523 17/32906 29/321753 17/32904 11/161193 1/16781 3/835
GPAL56M56 (56mm mm)55,1152521.19.55M56 X 5.50563 3/4957 1/81813 13/16975 29/321502 23/32691 21/3242
GPAL60M60 (60mm mm)66,1383021.19.55M60 X 5.50603 3/4957 1/81813 13/16975 29/321502 23/32691 21/3242
GPAL64M64 (64mm mm)79,3663621.19.55M64 X 6.00643 3/4957 1/81813 13/16975 29/321502 23/32691 21/3242

Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

The Green Pin Lifting Eye GR8 (AL) is a Grade 8 rotating hoist ring providing 360-degree swivel and 180-degree pivot action. This premium lifting point eliminates side loading on the bolt by allowing the ring to self-align with the sling angle, maximizing both bolt life and rated capacity.

Key Features

  • 360-degree swivel and 180-degree pivot
  • Grade 8 alloy steel for high capacity
  • Metric thread sizes
  • Spring-loaded ring stays upright
  • Forged construction for maximum fatigue resistance
  • Individually proof tested with certificate

Common Applications

  • Heavy machinery and equipment lifting
  • Mold and die handling in manufacturing
  • Structural steel and construction lifting points
  • Any permanent or semi-permanent lift point application

Why Green Pin?

Green Pin rotating lifting eyes are the safer alternative to static eyebolts. The 360-degree rotation prevents dangerous side loads on the bolt. Individually proof tested by Van Beest.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 10 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Weight ▴▾ Stock Qty Add
M6 (0.2 Ton) GPAL06 $11.70 0.11 lb ✓ In Stock
M8 (0.4 Ton) GPAL08 $12.40 0.13 lb ✓ In Stock
M10 (0.7 Ton) GPAL10 $12.90 0.18 lb ✓ In Stock
M12 (1.0 Ton) GPAL12 $14.50 0.31 lb ✓ In Stock
M16 (1.5 Ton) GPAL16 $23.35 0.86 lb ✓ In Stock
M20 (2.5 Ton) GPAL20 $31.05 1.48 lb ✓ In Stock
M22 (3.0 Ton) GPAL22 $39.85 1.96 lb ✓ In Stock
M24 (4.0 Ton) GPAL24 $82.35 2.34 lb ✓ In Stock
M30 (6.3 Ton) GPAL30 $115.00 4.45 lb ✓ In Stock
M36 (10 Ton) GPAL36 $142.00 8.31 lb ✓ In Stock

Weights are approximate shipping weights.
