Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

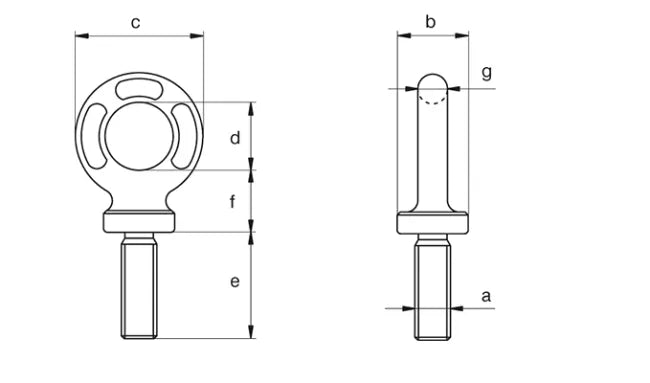

Specifications — Full Dimensions by Size
| Size | WLL (lb)(t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| M6 (6mm mm) | 4400.2 | 0.100.05 | M6 X 1.006 | 25/3220 | 1 11/3234 | 25/3220 | 1/213 | 21/3217 | 9/327 | GPAL06DIN |
| M8 (8mm mm) | 8810.4 | 0.110.05 | M8 X 1.258 | 25/3220 | 1 11/3234 | 25/3220 | 1/213 | 21/3217 | 9/327 | GPAL08DIN |
| M10 (10mm mm) | 1,5430.7 | 0.170.08 | M10 X 1.5010 | 25/3220 | 1 1/238 | 7/822 | 21/3217 | 3/419 | 5/168 | GPAL10DIN |
| M12 (12mm mm) | 2,2041 | 0.290.13 | M12 X 1.7512 | 31/3225 | 1 27/3247 | 1 1/3227 | 13/1621 | 29/3223 | 13/3210 | GPAL12DIN |
| M14 (14mm mm) | 2,6451.2 | 0.530.24 | M14 X 2.0014 | 1 3/1630 | 2 7/3256 | 1 3/1630 | 1 1/1627 | 31/3225 | 7/1611 | GPAL14DIN |
| M16 (16mm mm) | 3,3061.5 | 0.750.34 | M16 X 2.0016 | 1 13/3236 | 2 17/3264 | 1 13/3236 | 1 1/1627 | 1 3/1630 | 1/213 | GPAL16DIN |
| M18 (18mm mm) | 4,4092 | 0.790.36 | M18 X 2.5018 | 1 9/1640 | 2 27/3272 | 1 9/1640 | 1 3/1630 | 1 11/3234 | 9/1614 | GPAL18DIN |
| M20 (20mm mm) | 5,5112.5 | 1.150.52 | M20 X 2.5020 | 1 25/3245 | 3 5/3280 | 1 25/3245 | 1 3/1630 | 1 1/238 | 19/3215 | GPAL20DIN |
| M22 (22mm mm) | 6,6133 | 1.620.74 | M22 X 2.5022 | 1 31/3250 | 3 7/1687 | 1 31/3250 | 1 13/3236 | 1 9/1640 | 5/816 | GPAL22DIN |
| M24 (24mm mm) | 8,8184 | 2.211.00 | M24 X 3.0024 | 2 3/3252 | 3 23/3294 | 2 3/3252 | 1 13/3236 | 1 11/1643 | 21/3217 | GPAL24DIN |
| M27 (27mm mm) | 11,0235 | 2.271.03 | M27 X 3.0027 | 2 5/1658 | 4 7/32107 | 2 5/1658 | 1 25/3245 | 1 29/3248 | 25/3220 | GPAL27DIN |
| M30 (30mm mm) | 13,2276 | 3.661.66 | M30 X 3.5030 | 2 7/1662 | 4 1/2114 | 2 7/1662 | 1 25/3245 | 2 1/1652 | 7/822 | GPAL30DIN |
| M33 (33mm mm) | 15,4327 | 3.671.66 | M33 X 3.5033 | 2 3/470 | 4 29/32125 | 2 3/470 | 2 1/854 | 2 5/1658 | 31/3225 | GPAL33DIN |
| M36 (36mm mm) | 17,6368 | 4.492.03 | M36 X 4.0036 | 376 | 5 9/32134 | 376 | 2 1/854 | 2 7/1662 | 1 1/1627 | GPAL36DIN |
| M39 (39mm mm) | 19,8419 | 4.592.08 | M39 X 4.0039 | 376 | 5 5/8143 | 376 | 2 15/3263 | 2 7/1662 | 1 1/1627 | GPAL39DIN |
| M42 (42mm mm) | 22,04610 | 7.433.37 | M42 X 4.5042 | 3 11/3285 | 5 31/32152 | 3 11/3285 | 2 15/3263 | 2 3/470 | 1 3/1630 | GPAL42DIN |
| M45 (45mm mm) | 33,06915 | 7.653.47 | M45 X 4.5045 | 3 11/3285 | 6 5/16160 | 3 11/3285 | 2 11/1668 | 2 3/470 | 1 3/1630 | GPAL45DIN |
| M48 (48mm mm) | 39,68318 | 15.87.17 | M48 X 5.0048 | 3 17/3290 | 6 5/8168 | 3 17/3290 | 2 11/1668 | 3 1/1678 | 1 3/835 | GPAL48DIN |
| M52 (52mm mm) | 44,09220 | 16.67.53 | M52 X 5.0052 | 3 17/3290 | 6 29/32175 | 3 17/3290 | 3 1/1678 | 3 1/1678 | 1 3/835 | GPAL52DIN |
| M56 (56mm mm) | 55,11525 | 16.67.52 | M56 X 5.5056 | 3 3/495 | 7 1/8181 | 3 13/1697 | 3 1/1678 | 2 23/3269 | 1 21/3242 | GPAL56DIN |
| M60 (60mm mm) | 66,13830 | 17.27.78 | M60 X 5.5060 | 3 3/495 | 7 1/8181 | 3 13/1697 | 3 17/3290 | 2 23/3269 | 1 21/3242 | GPAL60DIN |
| M64 (64mm mm) | 79,36636 | 18.68.42 | M64 X 6.0064 | 3 3/495 | 7 1/8181 | 3 13/1697 | 3 17/3290 | 2 23/3269 | 1 21/3242 | GPAL64DIN |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.
The Green Pin Lifting Eye DIN580 Length (ALDIN) is a rotating hoist ring with a DIN 580-compatible thread length. It provides 360-degree swivel and 180-degree pivot action, allowing the load to self-align with the direction of pull. The DIN-length bolt is compatible with standard DIN 580 thread depths.
Key Features
- 360-degree swivel and 180-degree pivot
- DIN 580-compatible bolt length for standard thread depths
- Metric thread sizes
- Spring-loaded ring stays upright when not under load
- Forged alloy steel construction
- Individually proof tested with certificate
Common Applications
- Machinery and equipment with DIN 580 tapped holes
- Mold and die lifting
- Industrial equipment handling
- Any application with existing DIN 580 thread depths
Why Green Pin?
The ALDIN provides a direct DIN 580 upgrade path — same thread depth, vastly superior load alignment through 360-degree rotation. Individually proof tested by Van Beest.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 8 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M8 (0.4 Ton) | GPALDIN08 | $5.50 | ✓ In Stock | ||
| M10 (0.7 Ton) | GPALDIN10 | $7.43 | ✓ In Stock | ||
| M12 (1.0 Ton) | GPALDIN12 | $10.02 | ✓ In Stock | ||
| M16 (1.5 Ton) | GPALDIN16 | $13.53 | ✓ In Stock | ||
| M20 (2.5 Ton) | GPALDIN20 | $18.27 | ✓ In Stock | ||
| M24 (4.0 Ton) | GPALDIN24 | $24.66 | ✓ In Stock | ||
| M30 (6.3 Ton) | GPALDIN30 | $33.29 | ✓ In Stock | ||
| M36 (10 Ton) | GPALDIN36 | $44.95 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
