Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

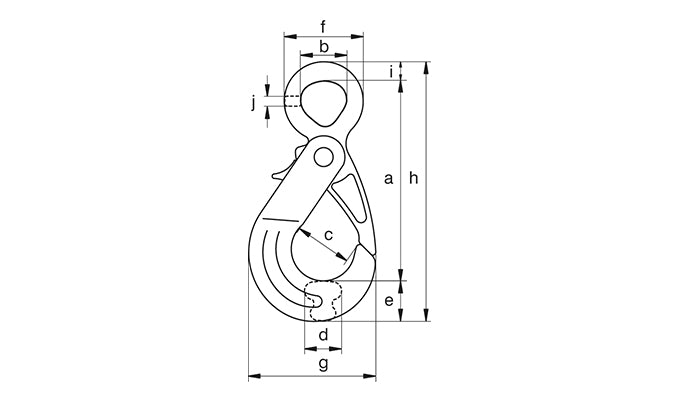

Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.
| WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | Chain dia (in)(mm) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | J (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4,4092 | 3,5271.6 | 1.170.53 | 1/4"-5/16"7 - 8 | 4 13/32112 | 1 1/3226 | 1 1/432 | 21/3217 | 15/1624 | 1 7/848 | 2 15/1675 | 5 25/32147 | 7/1611 | 11/329 | GPGKO1 |
| 7,0543.2 | 5,6432.56 | 2.511.14 | 3/8"10 | 5 7/16138 | 1 1/432 | 1 21/3242 | 7/822 | 1 1/432 | 2 3/860 | 3 3/495 | 7 5/32182 | 9/1614 | 1/213 | GPGKO2 |
| 11,9045.4 | 9,5234.32 | 4.892.22 | 1/2"13 | 6 7/8175 | 1 21/3242 | 1 31/3250 | 1 3/3228 | 1 9/1640 | 2 15/1675 | 4 21/32118 | 8 31/32228 | 11/1618 | 5/816 | GPGKO3 |
| 18,0778.2 | 14,4626.56 | 8.23.72 | 5/8"16 | 8 1/4210 | 1 31/3250 | 2 3/860 | 1 11/3234 | 1 7/848 | 3 5/892 | 5 19/32142 | 11 1/32280 | 7/822 | 3/419 | GPGKO4 |
| 28,21912.8 | 22,57510.24 | 16.237.36 | 3/4"20 | 10 13/32264 | 2 7/1662 | 2 15/1675 | 1 21/3242 | 2 3/860 | 4 17/32115 | 6 7/8175 | 13 29/32353 | 1 1/3226 | 15/1624 | GPGKO5 |
| 34,17115.5 | 27,33712.4 | 22.4910.2 | 7/8"22 | 11 13/32290 | 2 13/1672 | 3 5/3280 | 1 31/3250 | 2 5/867 | 5 1/8130 | 7 13/16198 | 15 1/32382 | 1 1/432 | 1 1/1627 | GPGKO6 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.
The Green Pin UXLO Self-Locking Hook (Eye) Grade 10 is an eye-type self-locking hook that automatically closes and locks when loaded. The eye connection accepts shackles and sling fittings, while the self-locking mechanism prevents accidental release — it can only open when the hook is unloaded.
Key Features
- Self-locking mechanism — locks automatically under load
- Cannot open while loaded — exceeds safety latch protection
- Grade 10 alloy steel for Grade 100 system capacity
- Eye connection for shackles and sling fittings
- Individually proof tested with certificate
- EN 1677-2 compliant
Common Applications
- Critical lifts requiring maximum load security
- Grade 100 wire rope and synthetic sling assemblies
- Steel erection and high-risk overhead lifting
- Applications where safety latch hooks are insufficient
Why Green Pin?
Green Pin self-locking eye hooks deliver the highest safety level for overhead lifting connections. Grade 10 capacity with automatic positive locking — individually proof tested by Van Beest.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 7/8 mm | GPGKO1 | $104.50 | ✓ In Stock | ||
| 10 mm (3/8") | GPGKO2 | $119.00 | ✓ In Stock | ||
| 13 mm (1/2") | GPGKO3 | $154.50 | ✓ In Stock | ||
| 16 mm (5/8") | GPGKO4 | $234.50 | ✓ In Stock | ||
| 18/20 mm | GPGKO5 | $389.00 | ✓ In Stock | ||
| 22 mm (7/8") | GPGKO6 | $525.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
