Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

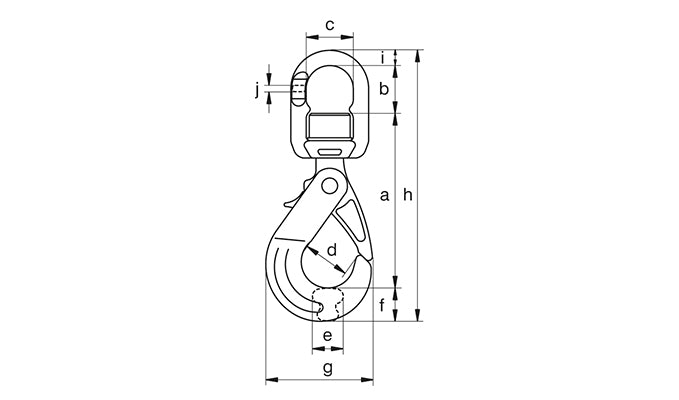

Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.
| WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | Chain dia (in)(mm) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | J (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4,4092 | 3,5271.6 | 1.70.77 | 1/4-5/167-8 | 4 27/32123 | 1 5/1633 | 1 1/432 | 1 1/432 | 21/3217 | 15/1624 | 2 15/1675 | 7 17/32191 | 15/3212 | 1/46 | GPGKE1 |
| 7,0543.2 | 5,6432.56 | 3.041.38 | 3/810 | 5 7/8149 | 1 5/841 | 1 15/3237 | 1 23/3244 | 15/1624 | 1 3/3228 | 3 19/3291 | 9 3/32231 | 9/1614 | 5/168 | GPGKE2 |
| 11,9045.4 | 9,5234.32 | 5.642.56 | 1/213 | 7 5/16186 | 1 27/3247 | 1 7/848 | 1 7/848 | 1 1/432 | 1 5/1633 | 4 3/8111 | 11 3/32282 | 5/816 | 7/1611 | GPGKE3 |
| 18,0778.2 | 14,4626.56 | 10.14.58 | 5/816 | 8 7/16214 | 2 3/860 | 2 9/3258 | 2 15/3263 | 1 15/3237 | 1 21/3242 | 5 9/16141 | 13 7/32336 | 13/1621 | 9/1614 | GPGKE4 |
| 28,21912.8 | 22,57510.24 | 219.51 | 3/418-20 | 10 23/32272 | 2 5/867 | 2 7/873 | 2 15/1675 | 1 25/3245 | 2 5/3255 | 7 1/4184 | 16 15/32418 | 31/3225 | 21/3217 | GPGKE5 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.
The Green Pin UCSE Swivel Sling Hook Grade 10 is a swivel-type sling hook in Grade 10 alloy steel with integrated rotation to prevent chain twist during lifting. The swivel action allows the hook to self-align with the load direction, reducing stress on chain legs.
Key Features
- Grade 10 alloy steel for Grade 100 chain capacity
- Integrated swivel prevents chain twist
- Wide hook throat with safety latch
- Smooth swivel action under load
- Individually proof tested with certificate
- EN 1677-2 compliant
Common Applications
- Grade 100 chain sling assemblies with twist-prone loads
- High-capacity lifting requiring free hook rotation
- Multi-leg sling systems
- Manufacturing and industrial overhead lifting
Why Green Pin?
The UCSE swivel hook eliminates chain twist in Grade 100 systems — higher capacity and twist prevention in one fitting. Individually proof tested by Van Beest.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 7/8 mm | GPGKE1 | $193.00 | ✓ In Stock | ||
| 10 mm (3/8") | GPGKE2 | $198.00 | ✓ In Stock | ||
| 13 mm (1/2") | GPGKE3 | $254.50 | ✓ In Stock | ||
| 16 mm (5/8") | GPGKE4 | $403.50 | ✓ In Stock | ||
| 18/20 mm | GPGKE5 | $718.00 | ✓ In Stock | ||
| 22 mm (7/8") | GPGKE6 | $932.00 | ✓ In Stock |
