Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.

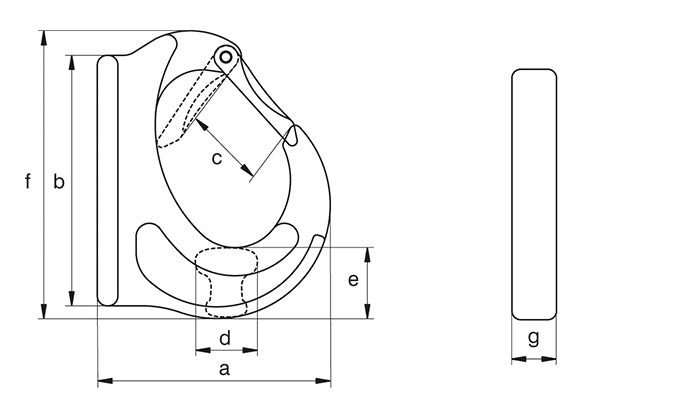

| Size | WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 t | 2,2041 | 1,7630.8 | 1.150.52 | 2.8372 | 3.0778 | 0.9825 | 0.7519 | 1.128 | 4.25108 | 1.2231 | 1.0226 | GPGH1 |
| 2 t | 4,4092 | 3,5271.6 | 1.650.75 | 3.5891 | 3.2783 | 1.333 | 0.7920 | 1.128 | 4.45113 | 1.2231 | 1.3434 | GPGH2 |
| 3 t | 6,6133 | 5,2912.4 | 2.541.15 | 4.13105 | 4.13105 | 1.333 | 1.0226 | 1.2632 | 5.04128 | 1.2231 | 1.3434 | GPGH3 |
| 4 t | 8,8184 | 7,0543.2 | 3.661.66 | 4.76121 | 5.12130 | 1.3835 | 1.0627 | 1.4236 | 5.83148 | 1.5740 | 1.538 | GPGH4 |
| 5 t | 11,0235 | 8,8184 | 5.512.5 | 5.43138 | 5.87149 | 1.6943 | 1.128 | 1.7745 | 6.54166 | 1.5740 | 1.7344 | GPGH5 |
| 8 t | 17,6368 | 14,1096.4 | 7.323.32 | 5.71145 | 5.83148 | 1.6943 | 1.6141 | 2.0552 | 6.81173 | 1.5740 | 2.0151 | GPGH8 |
| 10 t | 22,04610 | 17,6368 | 14.26.44 | 7.01178 | 7.76197 | 2.3660 | 1.8146 | 2.461 | 8.94227 | 1.9750 | 2.666 | GPGH10 |
| 15 t | 33,06915 | 26,45512 | 21.389.7 | 7.28185 | 8.78223 | 2.5665 | 2.3660 | 2.7670 | 9.88251 | 2.1755 | 3.1580 | GPGH15 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.
The Green Pin GH Excavator Hook is a heavy-duty hook designed for attachment to excavator buckets and arms, enabling excavators to perform lifting operations. The hook geometry and connection are specifically designed for the loads and mounting points found on construction excavators.
Key Features
- Designed for excavator bucket and arm mounting
- Heavy-duty forged alloy steel construction
- Wide hook throat for various load types
- Safety latch prevents accidental release
- Individually proof tested with certificate
Common Applications
- Excavator-based lifting operations
- Construction site material handling
- Pipe and utility installation
- Heavy lifting with tracked excavators
Why Green Pin?
Green Pin excavator hooks bring certified, proof-tested lifting capability to construction excavators. Van Beest's individual proof testing ensures the hook meets its rated capacity for safe excavator lifting.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
