The Green Pin GDV Shortening Clutch Double Lock Grade 8 features dual locking mechanisms for the highest level of shortening security. Both locks must be released simultaneously to free the chain, making accidental release virtually impossible.
Key Features
- Double locking mechanism — both must release to free chain
- Maximum security against accidental release
- Grade 8 alloy steel
- EN 1677-1 compliant
- Individually proof tested with certificate
Common Applications
- Maximum-security chain shortening
- Safety-critical lifting requiring dual lock protection
- Vibration-intensive environments
- Applications demanding the highest shortening security
Why Green Pin?
The GDV double lock clutch provides the highest shortening security in the Green Pin range. Individually proof tested by Van Beest.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

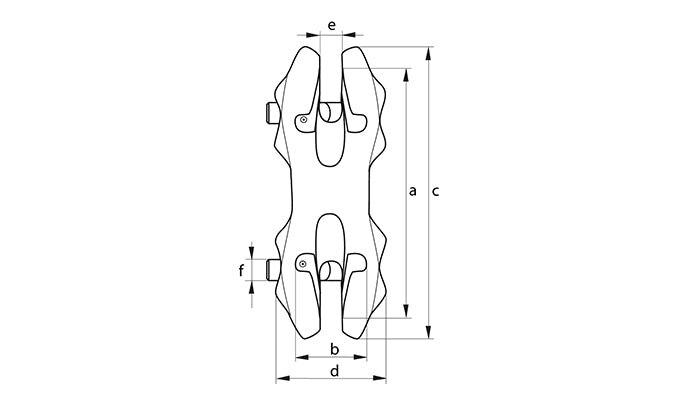

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|
| 1.12 | 1.070.49 | 3 29/3299 | 29/3223 | 4 23/32120 | 1 21/3242 | 9/327 | 9/327 | GPGDV6 | |
| 2 | 1.690.77 | 4 13/32112 | 1 3/1630 | 5 1/2140 | 1 31/3250 | 11/329 | 5/168 | GPGDV8 | |
| 5.4 | 6.282.85 | 7178 | 1 15/1649 | 8 3/16208 | 3 1/879 | 19/3215 | 5/816 | GPGDV13 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 3 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 13 mm (1/2") | GDV13J | $196.50 | ✓ In Stock | ||
| 6 mm (1/4") | GDV6J | $137.00 | ✓ In Stock | ||
| 8 mm (5/16") | GDV8J | $140.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
