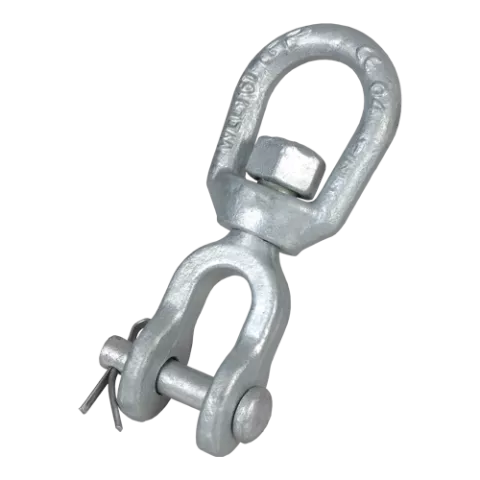

The Green Pin G-7723 Jaw & Eye Swivel provides 360-degree rotation between a jaw (clevis) connection and an eye connection. The cotter pin retention secures the jaw pin, while the swivel prevents twist in wire rope, chain, and sling assemblies.
Key Features
- Jaw and eye configuration for mixed connections
- 360-degree rotation prevents sling twist
- Cotter pin retention on jaw connection
- Forged alloy steel, hot-dip galvanized
- Individually proof tested with certificate
Common Applications
- Preventing wire rope and chain twist
- Mixed-connection rigging systems
- Marine and offshore operations
- Crane and hoist operations
Why Green Pin?
Green Pin jaw-eye swivels provide versatile twist prevention with mixed connection types. Individually proof tested by Van Beest.
Dimension diagram applies to all sizes.
Dimension Legend
- A Overall length
- B Eye inside diameter
- C Eye outside width
- D Center body width
- E Jaw clearance (J-types)
- F Pin diameter
Material & Product Specifications
| Material | Forged carbon steel |
| Safety Factor | MBL = 4 × WLL |
| Finish | Hot-dip galvanized |
| Temperature Range | -20°C to +200°C |
| Certification | EN 1677-1 · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | 0.75–21 tonnes |
| Article | WLL (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WTGPGO06 | 0,4 | 0.09 | 6 | 88 | 32 | 18 | 19 | 22 | 67 | 12 | 6 | 0.09 |
| WTGPGO08 | 0,6 | 0.16 | 8 | 99 | 41 | 21 | 25 | 23 | 75 | 13 | 8 | 0.16 |
| WTGPGO10 | 1,12 | 0.32 | 10 | 122 | 51 | 24 | 32 | 27 | 92 | 16 | 10 | 0.32 |
| WTGPGO13 | 1,63 | 0.57 | 13 | 154 | 64 | 33 | 38 | 33 | 115 | 21 | 13 | 0.57 |
| WTGPGO16 | 2,4 | 0.98 | 16 | 184 | 76 | 40 | 45 | 38 | 135 | 26 | 16 | 0.98 |
| WTGPGO19 | 3,3 | 1.88 | 19 | 211 | 89 | 45 | 51 | 45 | 154 | 31 | 19 | 1.88 |
| WTGPGO22 | 4,54 | 2.43 | 22 | 244 | 102 | 53 | 57 | 52 | 178 | 31 | 23 | 2.43 |
| WTGPGO25 | 5,7 | 4.02 | 25 | 297 | 114 | 59 | 64 | 72 | 218 | 47 | 29 | 4.02 |
| WTGPGO32 | 8,2 | 7.43 | 32 | 335 | 143 | 68 | 80 | 72 | 240 | 57 | 35 | 7.43 |
| WTGPGO38 | 20,5 | 22.1 | 38 | 534 | 198 | 110 | 122 | 116 | 381 | 78 | 51 | 22.1 |
| Article | WLL (t) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | Weight (lb) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WTGPGO06 | 0,4 | 0.20 | 1/4 | 3 15/32 | 1 1/4 | 23/32 | 3/4 | 7/8 | 2 5/8 | 15/32 | 1/4 | 0.20 |
| WTGPGO08 | 0,6 | 0.35 | 5/16 | 3 29/32 | 1 5/8 | 13/16 | 31/32 | 29/32 | 2 15/16 | 1/2 | 5/16 | 0.35 |
| WTGPGO10 | 1,12 | 0.71 | 13/32 | 4 13/16 | 2 | 15/16 | 1 1/4 | 1 1/16 | 3 5/8 | 5/8 | 13/32 | 0.71 |
| WTGPGO13 | 1,63 | 1.26 | 1/2 | 6 1/16 | 2 17/32 | 1 5/16 | 1 1/2 | 1 5/16 | 4 17/32 | 13/16 | 1/2 | 1.26 |
| WTGPGO16 | 2,4 | 2.17 | 5/8 | 7 1/14 | 3 | 1 9/16 | 1 25/32 | 1 1/2 | 5 5/16 | 1 1/32 | 5/8 | 2.17 |
| WTGPGO19 | 3,3 | 4.15 | 3/4 | 8 5/16 | 3 1/2 | 1 25/32 | 2 | 1 25/32 | 6 1/16 | 1 7/32 | 3/4 | 4.15 |
| WTGPGO22 | 4,54 | 5.36 | 7/8 | 9 19/32 | 4 1/32 | 2 3/32 | 2 1/4 | 2 1/16 | 7 | 1 7/32 | 29/32 | 5.36 |
| WTGPGO25 | 5,7 | 8.86 | 1 | 11 11/16 | 4 1/2 | 2 5/16 | 2 17/32 | 2 27/32 | 8 19/32 | 1 27/32 | 1 5/32 | 8.86 |
| WTGPGO32 | 8,2 | 16.4 | 1 1/4 | 13 3/16 | 5 5/8 | 2 11/16 | 3 5/32 | 2 27/32 | 9 7/16 | 2 1/4 | 1 3/8 | 16.4 |
| WTGPGO38 | 20,5 | 48.8 | 1 1/2 | 21 1/32 | 7 25/32 | 4 11/32 | 4 13/16 | 4 9/16 | 15 | 3 1/16 | 2 | 48.8 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 10 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 6 mm (1/4") | WTGPGO06 | $47.24 | ✓ In Stock | ||
| 8 mm (5/16") | WTGPGO08 | $76.58 | ✓ In Stock | ||
| 10 mm (3/8") | WTGPGO10 | $130.21 | ✓ In Stock | ||
| 13 mm (1/2") | WTGPGO13 | $138.02 | ✓ In Stock | ||
| 16 mm (5/8") | WTGPGO16 | $145.79 | ✓ In Stock | ||
| 19 mm (3/4") | WTGPGO19 | $174.98 | ✓ In Stock | ||
| 22 mm (7/8") | WTGPGO22 | $209.93 | ✓ In Stock | ||
| 25 mm (1") | WTGPGO25 | $221.38 | ✓ In Stock | ||
| 32 mm (1-1/4") | WTGPGO32 | $275.88 | ✓ In Stock | ||
| 38 mm (1-1/2") | WTGPGO38 | $1,114.24 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
