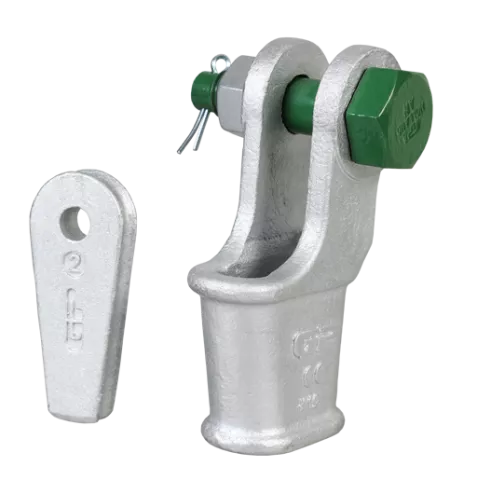

The Green Pin G-6423 Open Wedge Socket is a field-installable wire rope termination with safety bolt and nut closure for vibration-resistant security. The wedge grip tightens under load, while the safety bolt prevents pin loosening in permanent installations.
Key Features
- Field-installable wedge grip — no socketing required
- Safety bolt and nut closure — vibration resistant
- Open body for direct structural connection
- Forged steel, hot-dip galvanized
- Individually proof tested with certificate
Common Applications
- Permanent wire rope terminations in vibration-prone environments
- Offshore and marine installations
- Crane wire rope field replacement
- Structural cable systems
Why Green Pin?
The G-6423 combines field-installable convenience with safety bolt security. Individually proof tested by Van Beest.
Dimension diagram applies to all sizes.
Dimension Legend
- A Overall length
- B Socket basket length
- C Basket diameter
- D Shank width
- E Connection eye / pin dim
- F Clearance
- G Reference dim
- H Additional ref
Material & Product Specifications
| Material | Forged carbon steel |
| Safety Factor | 80% of rope breaking strength |
| Finish | Hot-dip galvanized |
| Temperature Range | -20°C to +200°C |
| Certification | EN 13411-6 · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | 1/4"–2-1/2" |
| Article | Rope Ø (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKGOW008SB | 0.25 | 8 | 7 - 8 | 128 | 110 | 69 | 18 | 16 | 9 | 36 | 0.88 |
| SKGOW010SB | 0.5 | 12 | 9 - 10 | 165 | 142 | 83 | 20,5 | 20 | 11 | 46 | 1.66 |
| SKGOW013SB | 1 | 20 | 11 - 13 | 175 | 146 | 101 | 25 | 25 | 12 | 57 | 2.71 |
| SKGOW016SB | 2 | 25 | 14 - 16 | 211 | 176 | 124 | 31 | 30 | 15 | 70 | 4.81 |
| SKGOW019SB | 3 | 40 | 18 - 19 | 252 | 212 | 138 | 38 | 35 | 16 | 80 | 8.32 |
| SKGOW022SB | 4 | 55 | 20 - 22 | 288 | 240 | 148 | 44 | 41 | 19 | 95 | 12.7 |
| SKGOW025SB | 5 | 75 | 24 - 26 | 329 | 274 | 176 | 51 | 50 | 22 | 110 | 17.9 |
| SKGOW028SB | 6 | 90 | 27 - 29 | 375 | 310 | 193 | 57 | 57 | 25 | 130 | 21.0 |
| SKGOW032SB | 7 | 110 | 30 - 32 | 423 | 350 | 210 | 63 | 63 | 28 | 146 | 33 |
| SKGOW035SB | 8 | 125 | 34 - 36 | 474 | 400 | 216 | 69 | 65 | 28 | 148 | 42.5 |
| SKGOW038SB | 9 | 150 | 37 - 39 | 527 | 450 | 230 | 76 | 70 | 30 | 153 | 52 |
| SKGOW040SB | 10 | 170 | 40 - 42 | 580 | 500 | 244 | 76 | 77 | 33 | 160 | 73 |
| Article | Rope Ø (in) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | Weight (lb) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKGOW008SB | 0.25 | 8 | 5/16 | 5 1/32 | 4 11/32 | 23/32 | 23/32 | 5/8 | 11/32 | 1 13/32 | 1.94 |
| SKGOW010SB | 0.5 | 12 | 3/8 | 6 1/2 | 5 19/32 | 3 9/32 | 13/16 | 25/32 | 7/16 | 1 13/16 | 3.67 |
| SKGOW013SB | 1 | 20 | 1/2 | 6 7/8 | 5 3/4 | 3 31/32 | 31/32 | 31/32 | 15/32 | 2 1/4 | 5.98 |
| SKGOW016SB | 2 | 25 | 5/8 | 8 5/16 | 6 15/16 | 4 7/8 | 1 7/32 | 1 3/16 | 19/32 | 2 3/4 | 10.6 |
| SKGOW019SB | 3 | 40 | 3/4 | 9 29/32 | 8 11/32 | 5 7/16 | 1 1/2 | 1 3/8 | 5/8 | 3 5/32 | 18.4 |
| SKGOW022SB | 4 | 55 | 7/8 | 11 11/32 | 9 7/16 | 5 13/16 | 1 23/32 | 1 5/8 | 3/4 | 3 3/4 | 27.9 |
| SKGOW025SB | 5 | 75 | 1 | 12 15/16 | 10 25/32 | 6 15/16 | 2 | 1 31/32 | 7/8 | 4 11/32 | 39.4 |
| SKGOW028SB | 6 | 90 | 1 1/8 | 14 3/4 | 12 7/32 | 7 19/32 | 2 1/4 | 2 1/4 | 31/32 | 5 1/8 | 46.3 |
| SKGOW032SB | 7 | 110 | 1 1/4 | 16 21/32 | 13 25/32 | 8 9/32 | 2 15/32 | 2 15/32 | 1 3/32 | 5 3/4 | 72.8 |
| SKGOW035SB | 8 | 125 | 1 3/8 | 18 21/32 | 15 3/4 | 8 1/2 | 2 23/32 | 2 9/16 | 1 3/32 | 5 13/16 | 93.7 |
| SKGOW038SB | 9 | 150 | 1 1/2 | 20 3/4 | 17 23/32 | 9 1/16 | 3 | 2 3/4 | 1 3/16 | 6 1/32 | 115 |
| SKGOW040SB | 10 | 170 | 1 5/8 | 22 27/32 | 19 11/16 | 9 19/32 | 3 | 3 1/32 | 1 5/16 | 6 5/16 | 161 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 12 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 8 mm (5/16") | SKGOW008SB | $92.00 | ✓ In Stock | ||
| 10 mm (3/8") | SKGOW010SB | $109.59 | ✓ In Stock | ||
| 13 mm (1/2") | SKGOW013SB | $122.13 | ✓ In Stock | ||
| 16 mm (5/8") | SKGOW016SB | $189.86 | ✓ In Stock | ||
| 19 mm (3/4") | SKGOW019SB | $261.93 | ✓ In Stock | ||
| 22 mm (7/8") | SKGOW022SB | $381.32 | ✓ In Stock | ||
| 25 mm (1") | SKGOW025SB | $504.32 | ✓ In Stock | ||
| 28 mm (1-1/8") | SKGOW028SB | $686.62 | ✓ In Stock | ||
| 32 mm (1-1/4") | SKGOW032SB | $947.19 | ✓ In Stock | ||
| 35 mm (1-3/8") | SKGOW035SB | $1,144.96 | ✓ In Stock | ||
| 38 mm (1-1/2") | SKGOW038SB | $1,346.68 | ✓ In Stock | ||
| 40 mm (1-1/2") | SKGOW040SB | $1,745.22 | ✓ In Stock |
