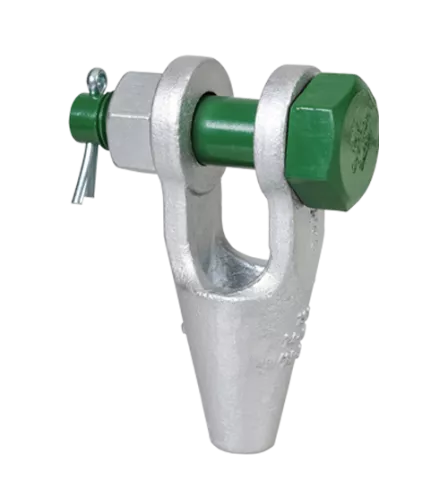

The Green Pin G-6422 Open Spelter Socket features a safety bolt and nut closure instead of a cotter pin, providing vibration-resistant security for permanent wire rope terminations. Ideal for offshore and industrial applications where pin security is critical.
Key Features
- Open body with safety bolt and nut — vibration-resistant
- 100% wire rope efficiency with proper socketing
- Forged steel construction, hot-dip galvanized
- Individually proof tested with certificate
- Compatible with zinc or resin socketing
- Superior pin retention vs cotter pin versions
Common Applications
- Offshore and marine wire rope terminations
- Permanent installations subject to vibration
- Crane and hoist wire rope assemblies
- Critical structural cable terminations
Why Green Pin?
The safety bolt closure eliminates the risk of cotter pin loss in vibration-prone environments. Van Beest's individual proof testing and full traceability meet the strictest offshore and industrial standards.
Dimension diagram applies to all sizes.
Dimension Legend
- A Overall length
- B Socket basket length
- C Basket diameter
- D Shank width
- E Connection eye / pin dim
- F Clearance
- G Reference dim
- H Additional ref
Material & Product Specifications
| Material | Forged carbon steel |
| Safety Factor | 100% of rope breaking strength |
| Finish | Hot-dip galvanized |
| Temperature Range | -20°C to +200°C |
| Certification | EN 13411-4 · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | 1/4"–4" |
| Article | Rope Ø (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SKGOS007SB | 196 | 8 | 6 - 7 | 109 | 69 | 19 | 16 | 33 | 9 | 0.40 |
| SKGOS010SB | 197 | 12 | 8 - 10 | 124 | 83 | 21 | 20 | 35 | 12 | 0.80 |
| SKGOS013SB | 198 | 20 | 11 - 13 | 143 | 101 | 26 | 25 | 37 | 15 | 1.30 |
| SKGOS016SB | 199 | 25 | 14 - 16 | 172 | 124 | 33 | 30 | 49 | 18 | 2.32 |
| SKGOS018SB | 100 | 45 | 18 - 19 | 205 | 138 | 38 | 35 | 58 | 21 | 3.81 |
| SKGOS022SB | 104 | 60 | 20 - 22 | 235 | 148 | 44 | 41 | 68 | 24 | 5.56 |
| SKGOS025SB | 108 | 85 | 23 - 26 | 275 | 176 | 51 | 50 | 76 | 28 | 9.90 |
| SKGOS028SB | 111 | 105 | 27 - 30 | 306 | 193 | 57 | 57 | 85 | 32 | 13.8 |
| SKGOS032SB | 115 | 136 | 31 - 36 | 338 | 210 | 63 | 63 | 95 | 38 | 18.4 |
| SKGOS038SB | 118 | 150 | 37 - 39 | 394 | 230 | 76 | 70 | 127 | 41 | 26.9 |
| SKGOS042SB | 120 | 170 | 40 - 42 | 418 | 244 | 76 | 77 | 126 | 44 | 32 |
| Article | Rope Ø (in) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| SKGOS007SB | 196 | 8 | 1/4 | 4 9/32 | 2 23/32 | 3/4 | 5/8 | 1 5/16 | 11/32 | 0.88 |
| SKGOS010SB | 197 | 12 | 3/8 | 4 7/8 | 3 9/32 | 13/16 | 25/32 | 1 3/8 | 15/32 | 1.76 |
| SKGOS013SB | 198 | 20 | 7/16 - 1/2 | 5 5/8 | 3 31/32 | 1 1/32 | 31/32 | 1 15/32 | 19/32 | 2.86 |
| SKGOS016SB | 199 | 25 | 9/16 - 5/8 | 6 25/32 | 4 7/8 | 1 5/16 | 1 3/16 | 1 15/16 | 23/32 | 5.12 |
| SKGOS018SB | 100 | 45 | 3/4 | 8 1/16 | 5 7/16 | 1 1/2 | 1 3/8 | 2 9/32 | 13/16 | 8.40 |
| SKGOS022SB | 104 | 60 | 7/8 | 9 1/4 | 5 13/16 | 1 23/32 | 1 5/8 | 2 11/16 | 15/16 | 12.3 |
| SKGOS025SB | 108 | 85 | 1 | 10 13/16 | 6 15/16 | 2 | 1 31/32 | 3 | 1 3/32 | 21.8 |
| SKGOS028SB | 111 | 105 | 1 1/8 | 12 1/16 | 7 19/32 | 2 1/4 | 2 1/4 | 3 11/32 | 1 1/4 | 30.3 |
| SKGOS032SB | 115 | 136 | 1 1/4 - 1 3/8 | 13 5/16 | 8 9/32 | 2 15/32 | 2 15/32 | 3 3/4 | 1 1/2 | 40.5 |
| SKGOS038SB | 118 | 150 | 1 1/2 | 15 1/2 | 9 1/16 | 3 | 2 3/4 | 5 | 1 5/8 | 59.3 |
| SKGOS042SB | 120 | 170 | 1 5/8 | 16 15/32 | 9 19/32 | 3 | 3 1/32 | 4 31/32 | 1 23/32 | 70.6 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 11 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 7 mm (1/4") | SKGOS007SB | $78.12 | ✓ In Stock | ||
| 10 mm (3/8") | SKGOS010SB | $83.77 | ✓ In Stock | ||
| 13 mm (1/2") | SKGOS013SB | $88.66 | ✓ In Stock | ||
| 16 mm (5/8") | SKGOS016SB | $101.35 | ✓ In Stock | ||
| 18 mm (3/4") | SKGOS018SB | $116.01 | ✓ In Stock | ||
| 22 mm (7/8") | SKGOS022SB | $176.67 | ✓ In Stock | ||
| 25 mm (1") | SKGOS025SB | $278.07 | ✓ In Stock | ||
| 28 mm (1-1/8") | SKGOS028SB | $350.86 | ✓ In Stock | ||
| 32 mm (1-1/4") | SKGOS032SB | $493.44 | ✓ In Stock | ||
| 38 mm (1-1/2") | SKGOS038SB | $762.63 | ✓ In Stock | ||
| 42 mm (1-5/8") | SKGOS042SB | $910.97 | ✓ In Stock |
