Specifications — Full Dimensions by Size
| Size | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) |
|---|---|---|---|---|---|---|---|
| 1 1/4 - 1 3/8" (31 - 36 mm) | 15.437 | 10 5/16262 | 5 3/16132 | 1 1/238 | 3 9/3283 | 2 15/1675 | 1 17/3239 |
| 1 1/2 - 1 5/8" (37 - 42 mm) | 2210 | 12305 | 5 31/32152 | 1 9/1640 | 4 1/16103 | 3 5/892 | 1 23/3244 |
| 1 3/4 - 1 7/8" (43 - 48 mm) | 35.316 | 14 1/32356 | 7178 | 1 7/848 | 4 23/32120 | 4 13/32112 | 251 |
| 2 - 2 1/8" (49 - 54 mm) | 46.321 | 15 11/32390 | 7 7/8200 | 2 1/854 | 5 3/16132 | 4 23/32120 | 2 1/457 |
| 2 1/4 - 2 3/8" (55 - 60 mm) | 6228 | 17 5/16440 | 8 21/32220 | 2 7/1662 | 5 13/16148 | 5 5/16135 | 2 17/3264 |
| 2 1/2 - 2 5/8" (61 - 68 mm) | 9744 | 19 19/32498 | 9 27/32250 | 2 11/1668 | 6 1/2165 | 5 29/32150 | 2 7/873 |
| 2 3/4 - 2 7/8" (69 - 75 mm) | 15068 | 21 1/4540 | 10 25/32274 | 2 15/1675 | 7178 | 6 15/32164 | 3 1/879 |
| 3 - 3 1/8" (76 - 80 mm) | 15470 | 23 1/32585 | 11 5/8295 | 376 | 7 11/16195 | 6 7/8175 | 3 1/289 |
| 3 1/4 - 3 3/8" (81 - 86 mm) | 17981 | 24 19/32625 | 12 19/32320 | 3 7/3282 | 8 1/2216 | 7 5/8194 | 3 5/892 |
| 3 1/2 - 3 5/8" (87 - 93 mm) | 247112 | 26 3/8670 | 13 25/32350 | 3 5/892 | 8 21/32220 | 7 15/16202 | 3 29/3299 |
| 3 3/4 - 4" (94 - 102 mm) | 247112 | 27 9/16700 | 14 3/4375 | 3 15/16100 | 9 1/4235 | 8 15/32215 | 4 1/4108 |
| 4 1/4 - 4 1/2" (108 - 115 mm) | 401182 | 31 1/2800 | 16 17/32420 | 4 11/32110 | 10 5/8270 | 9 7/16240 | 4 23/32120 |
This fitting does not carry a Working Load Limit of its own — it is rated by the efficiency of the termination it forms with the rope, so the governing figure is a percentage of the rope’s breaking strength. Size the assembly from the rope, not from the fitting. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

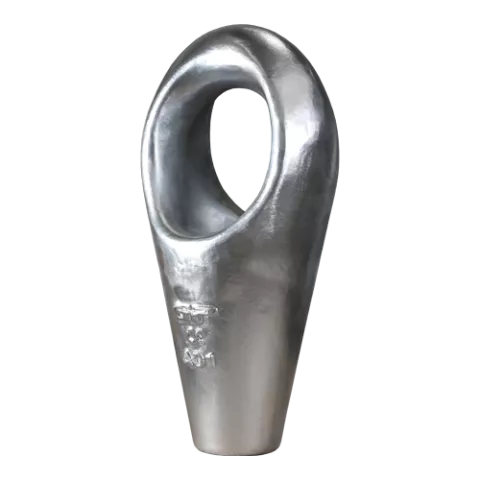

The Green Pin G-6416 Short Bow Socket is a compact spelter socket with a short bow (eye) body, designed for applications where overall socket length must be minimized. Despite its compact profile, the socket provides full spelter termination efficiency when properly installed with zinc or resin.
Key Features
- Short bow design minimizes overall termination length
- Closed eye body for shackle and pin connections
- 100% wire rope efficiency with proper socketing
- Forged steel, hot-dip galvanized
- Individually proof tested with certificate
Common Applications
- Space-constrained wire rope terminations
- Elevator and hoist systems with limited headroom
- Crane rope terminations where socket length is critical
- Industrial and marine wire rope assemblies
Why Green Pin?
Green Pin short bow sockets solve the problem of limited space without sacrificing termination strength. Van Beest's individual proof testing confirms every socket meets its rated capacity.
