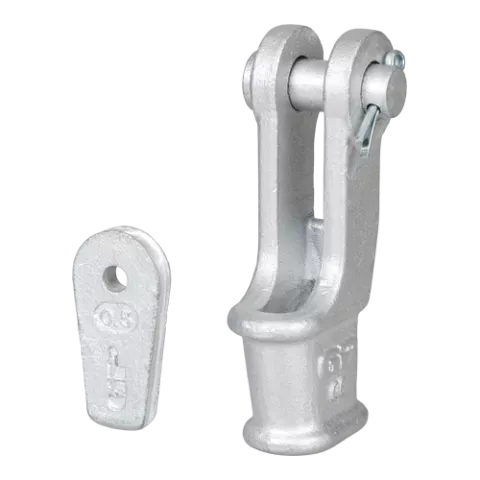

The Green Pin G-6413 Open Wedge Socket is a field-installable wire rope termination that uses a wedge to grip the rope without splicing or socketing. The wire rope is looped around the wedge inside the socket body, creating a secure termination that can be installed on-site with no special tools or materials.
Key Features
- Field-installable — no zinc, resin, or splice required
- Open body with cotter pin for direct structural connection
- Wedge grip tightens under load for secure retention
- Forged steel body, hot-dip galvanized
- Individually proof tested with certificate
- Reusable — rope can be removed and reinstalled
Common Applications
- Field wire rope terminations where socketing equipment isn't available
- Crane wire rope replacement on-site
- Temporary and semi-permanent wire rope connections
- Construction and mining hoist ropes
Why Green Pin?
Green Pin wedge sockets provide fast, reliable wire rope termination in the field — no specialized equipment needed. Van Beest's forged construction and individual proof testing ensure the socket matches the demands of the rope.

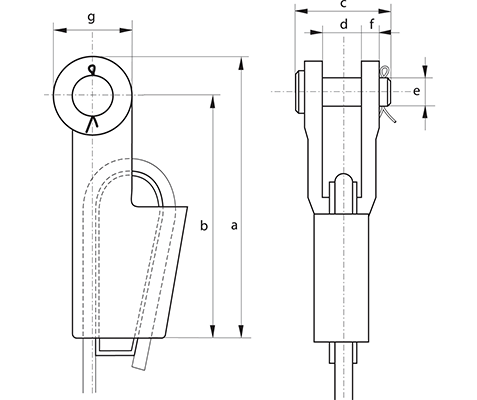

Dimension diagram applies to all sizes.
Dimension Legend
- A Overall length
- B Socket basket length
- C Basket diameter
- D Shank width
- E Connection eye / pin dim
- F Clearance
- G Reference dim
- H Additional ref
Material & Product Specifications
| Material | Forged carbon steel |
| Safety Factor | 80% of rope breaking strength |
| Finish | Hot-dip galvanized |
| Temperature Range | -20°C to +200°C |
| Certification | EN 13411-6 · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | 1/4"–2-1/2" wire rope |
| Article | Rope Ø (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKGOW008 | 0.25 | 8 | 7 - 8 | 128 | 110 | 51 | 18 | 16 | 9 | 36 | 0.80 |
| SKGOW010 | 0.5 | 12 | 9 - 10 | 165 | 142 | 62 | 20,5 | 21 | 11 | 46 | 1.54 |
| SKGOW013 | 1 | 20 | 11 - 13 | 175 | 146 | 66 | 25 | 25 | 12 | 57 | 2.44 |
| SKGOW016 | 2 | 25 | 14 - 16 | 211 | 176 | 82 | 31 | 30 | 15 | 70 | 4.29 |
| SKGOW019 | 3 | 40 | 18 - 19 | 252 | 212 | 95 | 38 | 35 | 16 | 80 | 7.59 |
| SKGOW022 | 4 | 55 | 20 - 22 | 288 | 240 | 110 | 44 | 41 | 19 | 95 | 11.6 |
| SKGOW025 | 5 | 75 | 24 - 26 | 329 | 274 | 130 | 51 | 51 | 22 | 110 | 16.2 |
| SKGOW028 | 6 | 90 | 27 - 29 | 375 | 310 | 144 | 57 | 57 | 25 | 130 | 22.1 |
| SKGOW032 | 7 | 110 | 30 - 32 | 423 | 350 | 155 | 63 | 64 | 28 | 146 | 32.5 |
| SKGOW035 | 8 | 125 | 34 - 36 | 474 | 400 | 163 | 69 | 64 | 28 | 148 | 40.0 |
| SKGOW038 | 9 | 150 | 37 - 39 | 527 | 450 | 178 | 76 | 70 | 30 | 153 | 49.0 |
| SKGOW040 | 10 | 170 | 40 - 42 | 580 | 500 | 187 | 76 | 76 | 33 | 160 | 68.5 |
| SKGOW045 | 11 | 225 | 43 - 48 | 650 | 550 | 213 | 89 | 89 | 39 | 186 | 92.5 |
| Article | Rope Ø (in) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | Weight (lb) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKGOW008 | 0.25 | 8 | 5/16 | 5 1/32 | 4 11/32 | 2 | 23/32 | 5/8 | 11/32 | 1 13/32 | 1.77 |
| SKGOW010 | 0.5 | 12 | 3/8 | 6 1/2 | 5 19/32 | 2 7/16 | 13/16 | 13/16 | 7/16 | 1 13/16 | 3.41 |
| SKGOW013 | 1 | 20 | 1/2 | 6 7/8 | 5 3/4 | 2 19/32 | 31/32 | 31/32 | 15/32 | 2 1/4 | 5.39 |
| SKGOW016 | 2 | 25 | 5/8 | 8 5/16 | 6 15/16 | 3 7/32 | 1 7/32 | 1 3/16 | 19/32 | 2 3/4 | 9.45 |
| SKGOW019 | 3 | 40 | 3/4 | 9 29/32 | 8 11/32 | 3 3/4 | 1 1/2 | 1 3/8 | 5/8 | 3 5/32 | 16.7 |
| SKGOW022 | 4 | 55 | 7/8 | 11 11/32 | 9 7/16 | 4 11/32 | 1 23/32 | 1 5/8 | 3/4 | 3 3/4 | 25.5 |
| SKGOW025 | 5 | 75 | 1 | 12 15/16 | 10 25/32 | 5 1/8 | 2 | 2 | 7/8 | 4 11/32 | 35.8 |
| SKGOW028 | 6 | 90 | 1 1/8 | 14 3/4 | 12 7/32 | 5 21/32 | 2 1/4 | 2 1/4 | 31/32 | 5 1/8 | 48.8 |
| SKGOW032 | 7 | 110 | 1 1/4 | 16 21/32 | 13 25/32 | 6 3/32 | 2 15/32 | 2 17/32 | 1 3/32 | 5 3/4 | 71.7 |
| SKGOW035 | 8 | 125 | 1 3/8 | 18 21/32 | 15 3/4 | 6 13/32 | 2 23/32 | 2 17/32 | 1 3/32 | 5 13/16 | 88.2 |
| SKGOW038 | 9 | 150 | 1 1/2 | 20 3/4 | 17 23/32 | 7 | 3 | 2 3/4 | 1 3/16 | 6 1/32 | 108 |
| SKGOW040 | 10 | 170 | 1 5/8 | 22 27/32 | 19 11/16 | 7 3/8 | 3 | 3 | 1 5/16 | 6 5/16 | 151 |
| SKGOW045 | 11 | 225 | 1 3/4 - 1 7/8 | 25 19/32 | 21 21/32 | 8 3/8 | 3 1/2 | 3 1/2 | 1 17/32 | 7 5/16 | 204 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 13 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 8 mm (5/16") | SKGOW008 | $116.24 | ✓ In Stock | ||
| 10 mm (3/8") | SKGOW010 | $138.42 | ✓ In Stock | ||
| 13 mm (1/2") | SKGOW013 | $152.17 | ✓ In Stock | ||
| 16 mm (5/8") | SKGOW016 | $154.33 | ✓ In Stock | ||
| 19 mm (3/4") | SKGOW019 | $239.81 | ✓ In Stock | ||
| 22 mm (7/8") | SKGOW022 | $330.84 | ✓ In Stock | ||
| 25 mm (1") | SKGOW025 | $481.75 | ✓ In Stock | ||
| 28 mm (1-1/8") | SKGOW028 | $637.11 | ✓ In Stock | ||
| 32 mm (1-1/4") | SKGOW032 | $867.39 | ✓ In Stock | ||
| 35 mm (1-3/8") | SKGOW035 | $1,196.61 | ✓ In Stock | ||
| 38 mm (1-1/2") | SKGOW038 | $1,446.46 | ✓ In Stock | ||
| 40 mm (1-1/2") | SKGOW040 | $1,701.34 | ✓ In Stock | ||
| 45 mm (1-3/4") | SKGOW045 | $3,595.08 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
