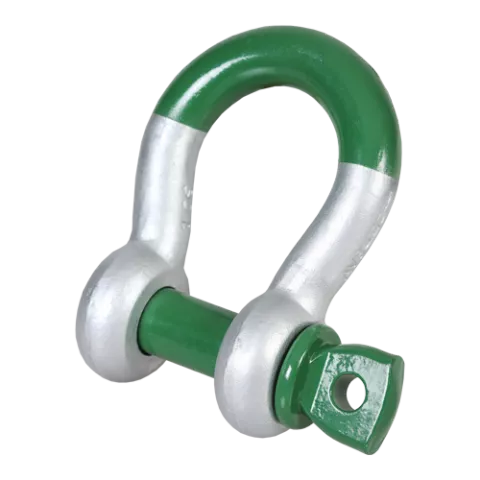

The Green Pin G-5261 Super Bow Shackle (Screw Pin) offers higher working load limits than standard bow shackles in a quick-connect screw pin format. The upgraded alloy steel provides increased capacity at equivalent sizes, ideal for applications where frequent rigging changes require hand-tightened convenience alongside maximum strength.
Key Features
- Super-rated capacity exceeds standard shackle WLL at same size
- Screw pin for tool-free connection and disconnection
- Enhanced alloy steel with superior heat treatment
- Hot-dip galvanized for corrosion resistance
- Individually proof tested at 2x WLL with certificate
Common Applications
- Heavy lifts requiring compact, high-capacity connections
- Temporary rigging with frequent changes
- Space-constrained rigging needing higher WLL per shackle
- Construction and industrial crane operations
Why Green Pin?
Green Pin Super screw pin shackles give riggers higher capacity with the convenience of hand-tightened pins. Every unit is individually proof tested by Van Beest with full material traceability.
Dimension diagram applies to all sizes.
Dimension Legend
- A Inside width at pin
- B Eye thickness
- C Inside length
- D Pin diameter
- E Inside width top
- F Eye outside ø
- G Outside width top
- H Overall height
- L Pin head length
- M Outside width pin
- P Pin protrusion
Material & Product Specifications
| Material | Forged alloy steel |
| Safety Factor | MBL = 5 × WLL |
| Finish | Painted orange |
| Temperature Range | -20°C to +200°C |
| Certification | EN 13889 / ABS · EN 10204 type 2.1 / 2.2 / 3.1 · 100% MPI tested · CE marked · 2× WLL proof-tested |
| Working Load Limit | 25–400 tonnes |
| Article | WLL (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | L (mm) | M (mm) | P (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUGHBB13 | 3,3 | 0.36 | 13,5 | 16 | 34 | 13 | 22 | 51 | 32 | 90 | 73 | 59 | 0.36 |
| SUGHBB16 | 5 | 0.63 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 89 | 75 | 0.63 |
| SUGHBB19 | 7 | 1.01 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 103 | 89 | 1.01 |
| SUGHBB22 | 9,5 | 1.50 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 119 | 102 | 1.50 |
| SUGHBB25 | 12,5 | 2.21 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 137 | 118 | 2.21 |
| SUGHBB28 | 15 | 3.16 | 28 | 32 | 67 | 28 | 47 | 108 | 75 | 186 | 153 | 131 | 3.16 |
| SUGHBB32 | 18 | 4.31 | 32 | 35 | 73 | 32 | 51 | 115 | 83 | 201 | 170 | 147 | 4.31 |
| SUGHBB35 | 21 | 5.58 | 35 | 38 | 79 | 35 | 57 | 133 | 92 | 227 | 186 | 162 | 5.58 |
| SUGHBB38 | 30 | 7.43 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 203 | 175 | 7.43 |
| SUGHBB45 | 40 | 12.5 | 45 | 50 | 104 | 45 | 74 | 178 | 126 | 300 | 243 | 216 | 12.5 |
| SUGHBB57 | 55 | 17.2 | 57 | 57 | 119 | 57 | 83 | 197 | 138 | 341 | 286 | 252 | 17.2 |
| SUGHBB70 | 85 | 37.6 | 70 | 70 | 145 | 70 | 105 | 260 | 180 | 437 | 354 | 320 | 37.6 |
| Article | WLL (t) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | L (in) | M (in) | P (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUGHBB13 | 0.79 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 17/32 | 2 7/8 | 2 5/16 | 0.79 | |
| SUGHBB16 | 1.38 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 3 1/2 | 2 15/16 | 1.38 | |
| SUGHBB19 | 2.22 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 4 1/16 | 3 1/2 | 2.22 | |
| SUGHBB22 | 3.31 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 4 11/16 | 4 1/32 | 3.31 | |
| SUGHBB25 | 4.86 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 5 13/32 | 4 21/32 | 4.86 | |
| SUGHBB28 | 6.97 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 4 1/4 | 2 15/16 | 7 5/16 | 6 1/32 | 5 5/32 | 6.97 | |
| SUGHBB32 | 9.49 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 6 11/16 | 5 25/32 | 9.49 | |
| SUGHBB35 | 12.3 | 1 3/8 | 1 1/2 | 3 1/8 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 7 5/16 | 6 3/8 | 12.3 | |
| SUGHBB38 | 16.4 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 8 | 6 7/8 | 16.4 | |
| SUGHBB45 | 27.7 | 1 3/4 | 2 | 4 3/32 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 9 9/16 | 8 1/2 | 27.7 | |
| SUGHBB57 | 37.8 | 2 | 2 1/4 | 4 11/16 | 2 1/4 | 3 9/32 | 7 3/4 | 5 7/16 | 13 7/16 | 11 1/4 | 9 29/32 | 37.8 | |
| SUGHBB70 | 82.9 | 2 1/2 | 2 3/4 | 5 23/32 | 2 3/4 | 4 1/8 | 10 1/4 | 7 3/32 | 17 7/32 | 13 15/16 | 12 19/32 | 82.9 |
Dimensions from Van Beest Green Pin® catalog. For CAD / spec sheet, visit greenpin.com.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 25 t (1-1/2") | SUGHBB13 | $30.29 | ✓ In Stock | ||
| 35 t (1-3/4") | SUGHBB16 | $36.24 | ✓ In Stock | ||
| 55 t (2-1/8") | SUGHBB19 | $46.35 | ✓ In Stock | ||
| 85 t (2-3/8") | SUGHBB22 | $68.57 | ✓ In Stock | ||
| 120 t (3") | SUGHBB25 | $80.42 | ✓ In Stock | ||
| 150 t (3-1/2") | SUGHBB32 | $185.45 | ✓ In Stock | ||
| 200 t (4") | SUGHBB38 | $310.44 | ✓ In Stock | ||
| 250 t (4-3/4") | SUGHBB45 | $417.77 | ✓ In Stock | ||
| 400 t (6-1/4") | SUGHBB57 | $724.96 | ✓ In Stock |
