Specifications — Full Dimensions by Size
Manufacturer’s wording: “7:1 (6:1 on the 55 t and 85 t sizes)”

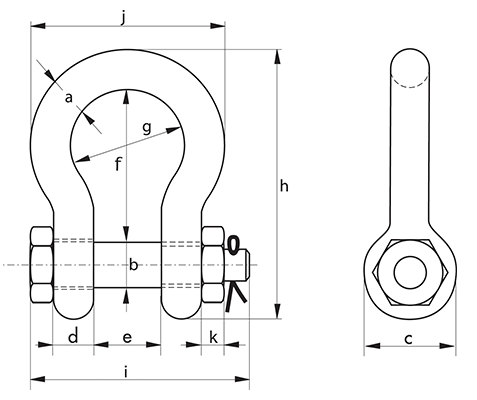

| WLL AS PUBLISHED (lb)(t) | Design Factor | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | i (in)(mm) | j (in)(mm) | k (in)(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4,4092 | 7:1 | 0.930.42 | 1/213.5 | 5/816 | 1 11/3234 | 1/213 | 7/822 | 251 | 1 1/432 | 3 17/3290 | 3 5/3280 | 2 5/1659 | 1/213 |
| 7,1653.25 | 7:1 | 1.630.74 | 5/816 | 3/419 | 1 9/1640 | 5/816 | 1 1/1627 | 2 17/3264 | 1 11/1643 | 4 11/32110 | 3 27/3298 | 2 15/1675 | 21/3217 |
| 10,4714.75 | 7:1 | 2.61.18 | 3/419 | 7/822 | 1 13/1646 | 3/419 | 1 7/3231 | 376 | 251 | 5 3/32129 | 4 17/32115 | 3 1/289 | 3/419 |
| 14,3306.5 | 7:1 | 3.91.77 | 7/822 | 125 | 2 1/1652 | 7/822 | 1 13/3236 | 3 9/3283 | 2 9/3258 | 5 21/32144 | 5 1/8130 | 4 1/32102 | 7/822 |
| 18,7398.5 | 7:1 | 5.692.58 | 125 | 1 1/828 | 2 5/1659 | 31/3225 | 1 11/1643 | 3 3/495 | 2 11/1668 | 6 15/32164 | 5 29/32150 | 4 21/32118 | 31/3225 |
| 20,9439.5 | 7:1 | 8.073.66 | 1 1/828 | 1 1/432 | 2 5/867 | 1 3/3228 | 1 27/3247 | 4 1/4108 | 2 15/1675 | 7 5/16186 | 6 17/32166 | 5 5/32131 | 1 1/1627 |
| 26,45512 | 7:1 | 10.824.91 | 1 1/432 | 1 3/835 | 2 7/873 | 1 1/432 | 251 | 4 17/32115 | 3 9/3283 | 7 29/32201 | 7 1/4184 | 5 25/32147 | 1 3/1630 |
| 29,76213.5 | 7:1 | 14.426.54 | 1 3/835 | 1 1/238 | 3 1/879 | 1 3/835 | 2 1/457 | 5 1/4133 | 3 5/892 | 8 15/16227 | 7 3/4197 | 6 3/8162 | 1 5/1633 |
| 37,47817 | 7:1 | 18.068.19 | 1 1/238 | 1 5/842 | 3 15/3288 | 1 1/238 | 2 3/860 | 5 3/4146 | 3 29/3299 | 9 13/16249 | 7 15/16202 | 6 7/8175 | 3/419 |
| 55,11525 | 7:1 | 31.314.2 | 1 3/445 | 250 | 4 3/32104 | 1 25/3245 | 2 29/3274 | 7178 | 4 31/32126 | 11 13/16300 | 9 9/16243 | 8 1/2216 | 29/3223 |
| 77,16135 | 7:1 | 43.919.9 | 250 | 2 1/457 | 4 13/32112 | 1 31/3250 | 3 9/3283 | 7 3/4197 | 5 7/16138 | 13 1/16332 | 10 19/32269 | 9 3/8238 | 1 1/3226 |
| 93,69642.5 | 7:1 | 6228.3 | 2 1/457 | 2 9/1665 | 5 3/16132 | 2 1/457 | 3 3/495 | 8 3/4222 | 6 5/16160 | 14 7/8378 | 11 27/32301 | 10 25/32274 | 1 5/3229 |
| 121,25455 | 6:1 | 8739.6 | 2 1/265 | 2 3/470 | 5 23/32145 | 2 9/1665 | 4 1/8105 | 10 1/4260 | 7 3/32180 | 17 1/16433 | 12 15/16329 | 12 7/32310 | 1 1/432 |
| 187,39285 | 6:1 | 13762 | 375 | 3 1/483 | 6 9/16167 | 2 15/1675 | 5127 | 13330 | 7 15/32190 | 20 7/8530 | 15381 | 13 3/8340 | 1 17/3239 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

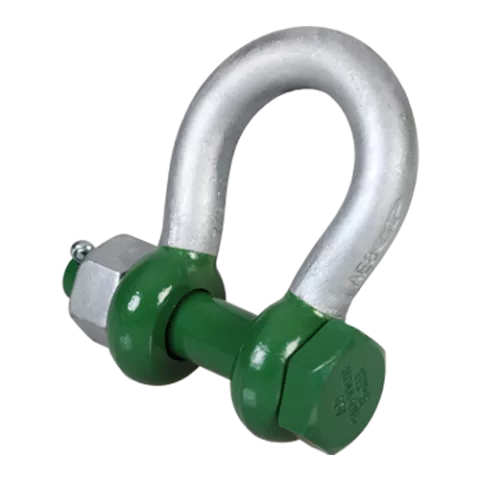

The Green Pin G-5163 Polar Bow Shackle combines cold-rated steel with a safety bolt and nut closure for the most demanding Arctic and sub-zero lifting operations. The safety bolt prevents pin loosening under vibration, while the Polar-rated steel maintains toughness at extreme low temperatures.
Key Features
- Polar-rated steel with Charpy impact verification for sub-zero use
- Safety bolt and nut pin — cotter pin secured against loosening
- Forged alloy steel, quenched and tempered
- Hot-dip galvanized for corrosion resistance
- Individually proof tested at 2x WLL with certificate
- Full material traceability
Common Applications
- Arctic offshore oil and gas operations
- Cold-climate construction and infrastructure
- Northern marine and port operations
- Cold storage facility permanent rigging
Why Green Pin?
When sub-zero temperatures demand verified material toughness AND vibration-resistant security, the G-5163 Polar delivers both. Van Beest's Charpy testing and individual proof certification provide the documentation cold-climate operations require.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 25 t (1-1/2") | POGHMB13 | $50.90 | ✓ In Stock | ||
| 35 t (1-3/4") | POGHMB16 | $52.25 | ✓ In Stock | ||
| 55 t (2-1/8") | POGHMB19 | $74.95 | ✓ In Stock | ||
| 85 t (2-3/8") | POGHMB22 | $92.65 | ✓ In Stock | ||
| 120 t (3") | POGHMB25 | $117.00 | ✓ In Stock | ||
| 150 t (3-1/2") | POGHMB32 | $235.50 | ✓ In Stock | ||
| 200 t (4") | POGHMB38 | $363.00 | ✓ In Stock | ||
| 250 t (4-3/4") | POGHMB45 | $535.50 | ✓ In Stock | ||
| 400 t (6-1/4") | POGHMB57 | $1,030.00 | ✓ In Stock |
