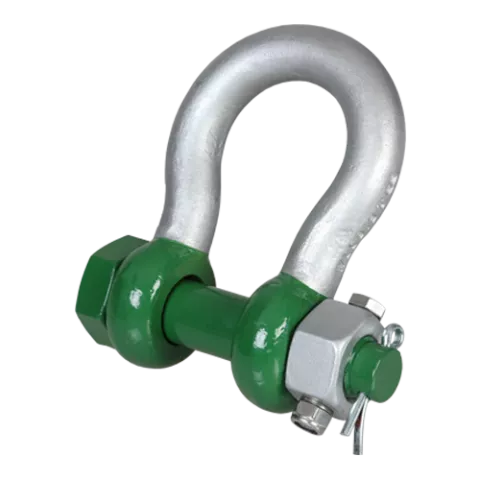

The Green Pin G-5143 Polar Bow Shackle is engineered for extreme cold environments where standard shackles risk brittle fracture. The Polar range uses specially selected alloy steel with verified low-temperature impact properties, ensuring reliable performance in Arctic, sub-zero, and cold storage applications.
Key Features
- Polar-rated steel with verified low-temperature impact toughness
- Flat nut pin for secure, non-rotating closure
- Forged alloy steel, quenched and tempered
- Hot-dip galvanized for corrosion resistance
- Individually proof tested at 2x WLL with certificate
- Charpy impact tested for sub-zero performance
Common Applications
- Arctic and sub-Arctic lifting operations
- Cold storage and freezer facility rigging
- Northern offshore platforms and vessels
- Any application in temperatures below -20C (-4F)
Why Green Pin?
Green Pin Polar shackles are specifically engineered and tested for cold environments. Van Beest's Charpy impact verification ensures the steel won't become brittle when temperatures drop — critical safety assurance for cold-climate operations.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

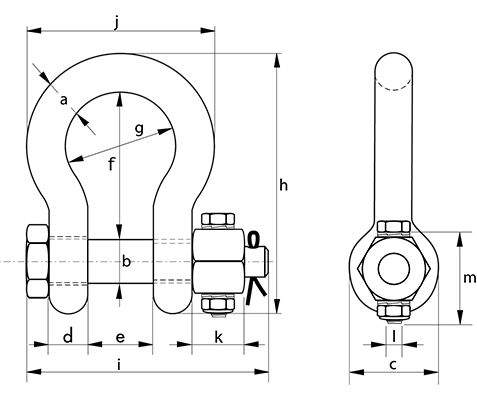

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Design Factor | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | i (in)(mm) | j (in)(mm) | k (in)(mm) | l (in)(mm) | m (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 7:1 | 0.930.42 | 1/213.5 | 5/816 | 1 11/3234 | 1/213 | 7/822 | 251 | 1 1/432 | 3 17/3290 | 3 5/3280 | 2 5/1659 | 1/213 | M6M6 | 1 3/835 | ||
| 3.25 | 7:1 | 1.630.74 | 5/816 | 3/419 | 1 9/1640 | 5/816 | 1 1/1627 | 2 17/3264 | 1 11/1643 | 4 11/32110 | 3 27/3298 | 2 15/1675 | 21/3217 | M6M6 | 1 9/1640 | ||
| 4.75 | 7:1 | 2.61.18 | 3/419 | 7/822 | 1 13/1646 | 3/419 | 1 7/3231 | 376 | 251 | 5 3/32129 | 4 17/32115 | 3 1/289 | 3/419 | M6M6 | 1 25/3245 | ||
| 6.5 | 7:1 | 3.91.77 | 7/822 | 125 | 2 1/1652 | 7/822 | 1 13/3236 | 3 9/3283 | 2 9/3258 | 5 21/32144 | 5 1/8130 | 4 1/32102 | 7/822 | M8M8 | 1 31/3250 | ||
| 8.5 | 7:1 | 5.692.58 | 125 | 1 1/828 | 2 5/1659 | 31/3225 | 1 11/1643 | 3 3/495 | 2 11/1668 | 6 15/32164 | 5 29/32150 | 4 21/32118 | 31/3225 | M8M8 | 2 5/3255 | ||
| 9.5 | 7:1 | 8.073.66 | 1 1/828 | 1 1/432 | 2 5/867 | 1 3/3228 | 1 27/3247 | 4 1/4108 | 2 15/1675 | 7 5/16186 | 6 17/32166 | 5 5/32131 | 1 1/1627 | M10M10 | 2 3/860 | ||
| 12 | 7:1 | 10.824.91 | 1 1/432 | 1 3/835 | 2 7/873 | 1 1/432 | 251 | 4 17/32115 | 3 9/3283 | 7 29/32201 | 7 1/4184 | 5 25/32147 | 1 3/1630 | M10M10 | 2 9/1665 | ||
| 13.5 | 7:1 | 14.426.54 | 1 3/835 | 1 1/238 | 3 1/879 | 1 3/835 | 2 1/457 | 5 1/4133 | 3 5/892 | 8 15/16227 | 7 3/4197 | 6 3/8162 | 1 5/1633 | M10M10 | 2 3/470 | ||
| 17 | 7:1 | 18.068.19 | 1 1/238 | 1 5/842 | 3 15/3288 | 1 1/238 | 2 3/860 | 5 3/4146 | 3 29/3299 | 9 13/16249 | 7 15/16202 | 6 7/8175 | 3/419 | M8M8 | 2 15/1675 | ||
| 25 | 7:1 | 31.314.2 | 1 3/445 | 250 | 4 3/32104 | 1 25/3245 | 2 29/3274 | 7178 | 4 31/32126 | 11 13/16300 | 9 9/16243 | 8 1/2216 | 29/3223 | M8M8 | 3 17/3290 | ||
| 35 | 7:1 | 43.919.9 | 250 | 2 1/457 | 4 13/32112 | 1 31/3250 | 3 9/3283 | 7 3/4197 | 5 7/16138 | 13 1/16332 | 10 19/32269 | 9 3/8238 | 1 1/3226 | M10M10 | 3 15/16100 | ||
| 42.5 | 7:1 | 6228.3 | 2 1/457 | 2 9/1665 | 5 3/16132 | 2 1/457 | 3 3/495 | 8 3/4222 | 6 5/16160 | 14 7/8378 | 11 27/32301 | 10 25/32274 | 1 5/3229 | M12M12 | 4 11/32110 | ||
| 55 | 6:1 | 8739.6 | 2 1/265 | 2 3/470 | 5 23/32145 | 2 9/1665 | 4 1/8105 | 10 1/4260 | 7 3/32180 | 17 1/16433 | 12 15/16329 | 12 7/32310 | 1 1/432 | M12M12 | 4 23/32120 | ||
| 85 | 6:1 | 13762 | 375 | 3 1/483 | 6 9/16167 | 2 15/1675 | 5127 | 13330 | 7 15/32190 | 20 7/8530 | 15381 | 13 3/8340 | 1 17/3239 | M12M12 | 5 1/2140 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 25 t | POGHMB13FN | $36.00 | ✓ In Stock | ||
| 35 t | POGHMB16FN | $65.35 | ✓ In Stock | ||
| 55 t | POGHMB19FN | $93.80 | ✓ In Stock | ||
| 85 t | POGHMB22FN | $116.00 | ✓ In Stock | ||
| 120 t | POGHMB25FN | $146.00 | ✓ In Stock | ||
| 150 t | POGHMB32FN | $296.50 | ✓ In Stock | ||
| 200 t | POGHMB38FN | $454.00 | ✓ In Stock | ||
| 250 t | POGHMB45FN | $669.50 | ✓ In Stock | ||
| 400 t | POGHMB57FN | $1,285.00 | ✓ In Stock |
