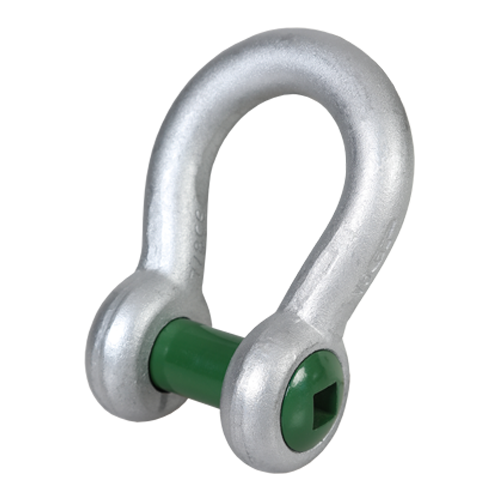

The Green Pin G-4169 Fishing Bow Shackle (Flat Pin) features a low-profile flat pin that reduces net and line snagging. The flat pin sits flush with the shackle body, making it the preferred fishing shackle where snag-free hardware is essential.
Key Features
- Flat pin closure — low profile reduces snags
- Forged alloy steel, hot-dip galvanized
- Bow shape for multi-directional loading
- Individually proof tested at 2x WLL
Common Applications
- Commercial trawling and fishing gear
- Net rigging requiring snag-free hardware
- Marine and aquaculture installations
Why Green Pin?
Green Pin flat pin fishing shackles minimize snag risk while maintaining full capacity. Trusted by commercial fishing fleets worldwide.

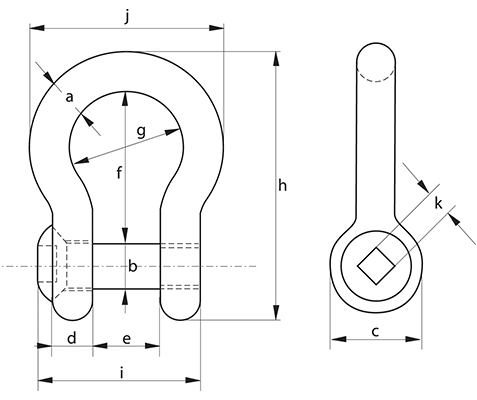

Specifications — Full Dimensions by Size

| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | J (in)(mm) | K (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 0.680.31 | 1/213.5 | 5/816 | 1 11/3234 | 1/213 | 7/822 | 251 | 1 1/432 | 3 17/3289 | 251 | 2 5/1659 | 7/1611 | GPGHVV13 | |
| 3.25 | 1.230.56 | 5/816 | 3/419 | 1 9/1640 | 5/816 | 1 1/1627 | 2 17/3264 | 1 11/1643 | 4 11/32110 | 2 15/3263 | 2 15/1675 | 7/1611 | GPGHVV16 | |
| 4.75 | 2.120.96 | 3/419 | 7/822 | 1 13/1646 | 3/419 | 1 7/3231 | 376 | 251 | 5 3/32129 | 2 29/3274 | 3 1/289 | 7/1611 | GPGHVV19 | |
| 6.5 | 3.231.46 | 7/822 | 125 | 2 1/1652 | 7/822 | 1 13/3236 | 3 9/3283 | 2 9/3258 | 5 21/32144 | 3 11/3285 | 4 1/32102 | 1/213 | GPGHVV22 | |
| 8.5 | 4.822.18 | 125 | 1 1/828 | 2 5/1659 | 31/3225 | 1 11/1643 | 3 3/495 | 2 11/1668 | 6 15/32164 | 3 29/3299 | 4 21/32118 | 1/213 | GPGHVV25 | |
| 9.5 | 6.272.84 | 1 1/828 | 1 1/432 | 2 5/867 | 1 3/3228 | 1 27/3247 | 4 1/4108 | 2 15/1675 | 7 5/16185 | 4 11/32110 | 5 5/32131 | 21/3217 | GPGHVV28 | |
| 12 | 8.633.91 | 1 1/432 | 1 3/835 | 2 7/873 | 1 1/432 | 251 | 4 17/32115 | 3 9/3283 | 7 29/32201 | 4 13/16122 | 5 25/32147 | 21/3217 | GPGHVV32 | |
| 17 | 15.06.81 | 1 1/238 | 1 5/842 | 3 15/3288 | 1 1/238 | 2 3/860 | 5 3/4146 | 3 29/3299 | 9 13/16249 | 5 23/32145 | 6 7/8175 | 21/3217 | GPGHVV38 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 8 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 13 mm (1/2") | GPGHVV13 | $11.85 | ✓ In Stock | ||
| 16 mm (5/8") | GPGHVV16 | $19.91 | ✓ In Stock | ||
| 19 mm (3/4") | GPGHVV19 | $26.92 | ✓ In Stock | ||
| 22 mm (7/8") | GPGHVV22 | $39.37 | ✓ In Stock | ||
| 25 mm (1") | GPGHVV25 | $59.53 | ✓ In Stock | ||
| 28 mm (1-1/8") | GPGHVV28 | $102.15 | ✓ In Stock | ||
| 32 mm (1-1/4") | GPGHVV32 | $124.95 | ✓ In Stock | ||
| 38 mm (1-1/2") | GPGHVV38 | $257.52 | ✓ In Stock |
